    2. Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 15A; 90Ω
    Public Pricelist

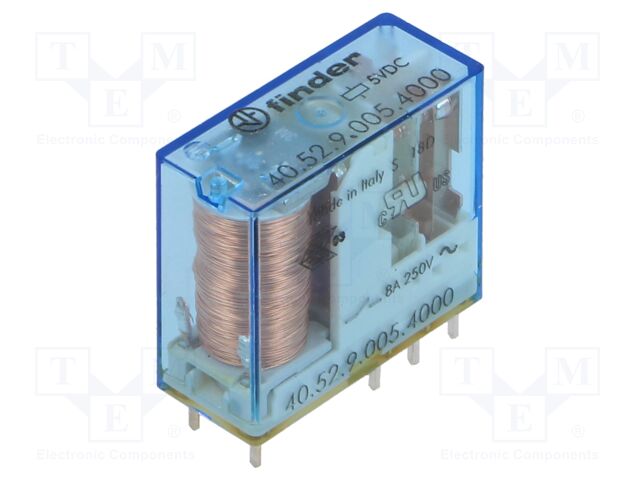

    Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 15A; 90Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 40.52.9.005.4000
    Manufacturer: FINDER
    Manufacturer code: 40.52.9.005.4000
    Certificates:
    • Mounting
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 15A; 90Ω

    Mounting PCB, socket
    Operating temperature -40...85°C
    Number of pins 8
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Body dimensions 29x12.4x25mm
    Mechanical durability 20000000cycles
    Switched voltage max. 220V DC, max. 400V AC
    Electrical life 100000cycles
    Coil resistance 90Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 650mW
    Operate time 7ms
    Coil current 130mA
