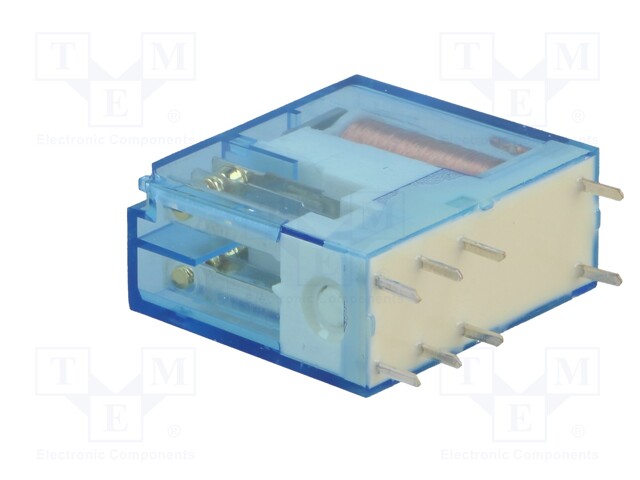

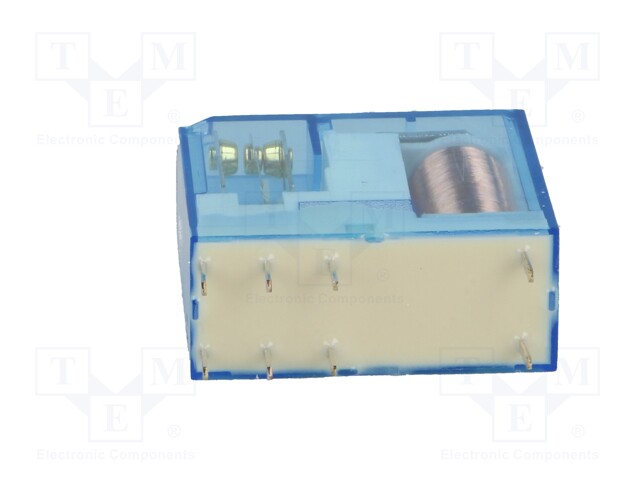

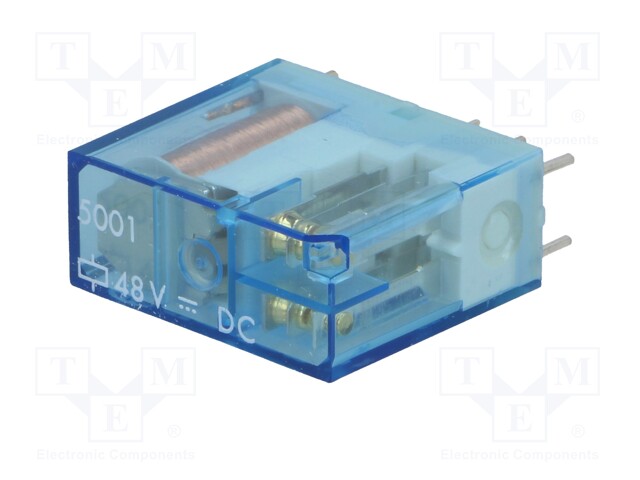

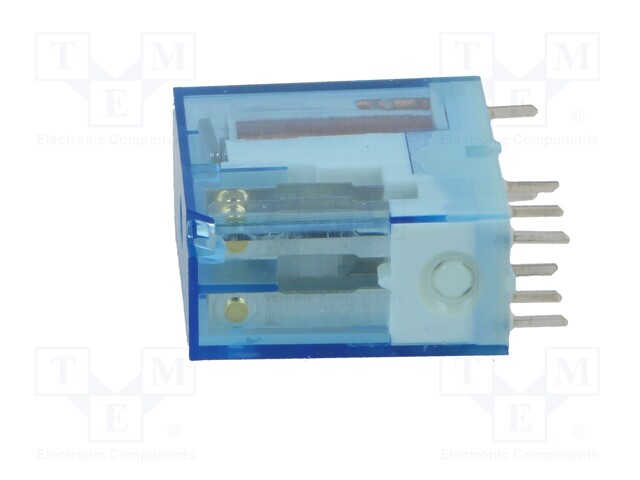

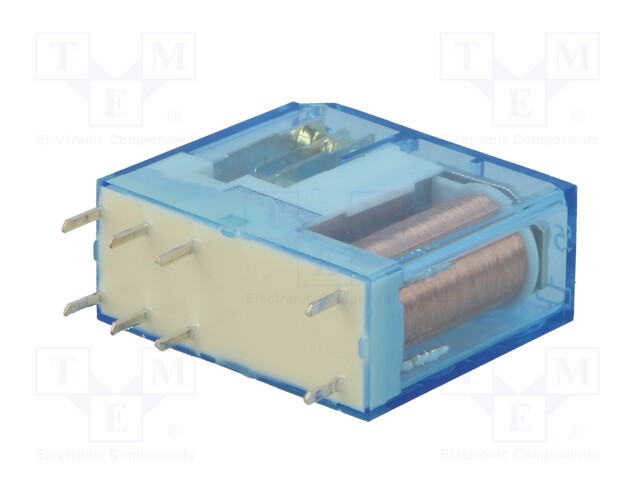

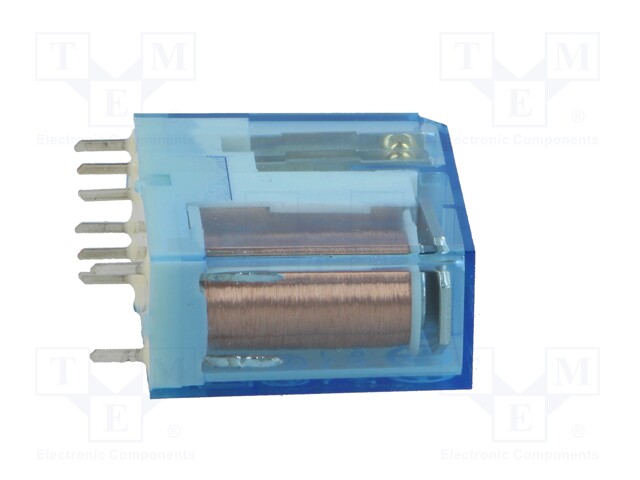

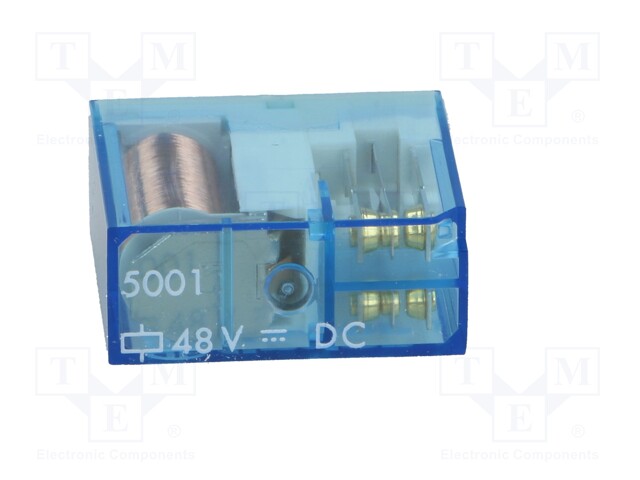

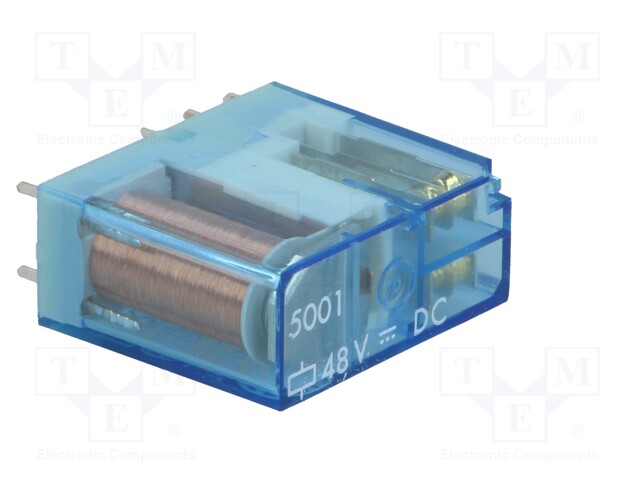

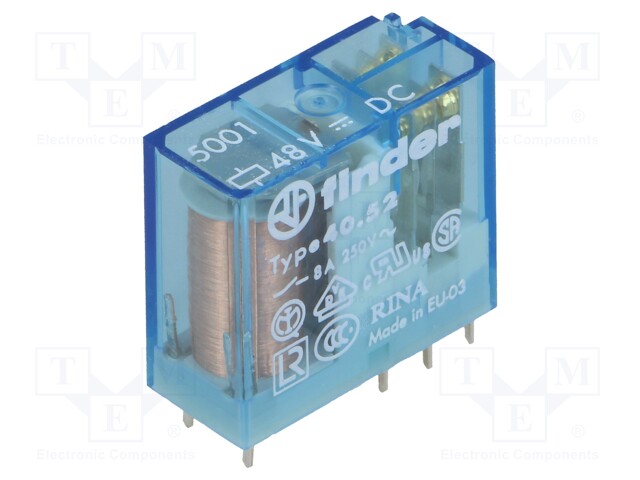

Relay: electromagnetic; DPDT; Ucoil: 48VDC; 8A/250VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 40.52.9.048.5001
    Manufacturer: FINDER
    Manufacturer code: 40.52.9.048.5001
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    19.28 € 19.28 € (wo VAT) 19.28 EUR

    19.28 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 48VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi/Au 5μm
    Terminal pitch 5mm
    Body dimensions 29x12.4x25mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 3.5kΩ
    Rated coil voltage 48V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 30V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 650mW
    Coil current 14mA
