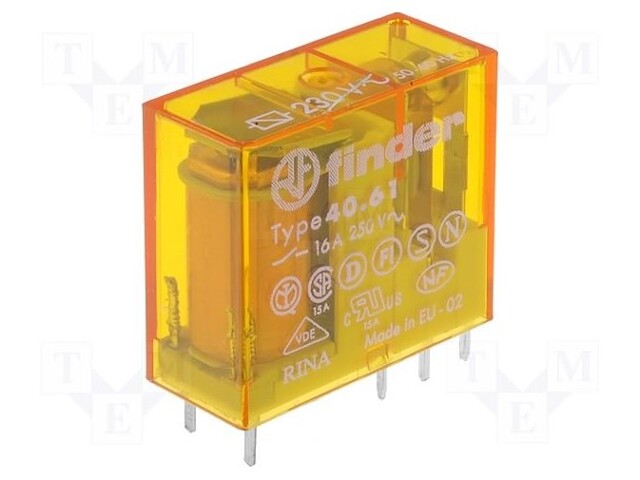

Relay: electromagnetic; SPDT; Ucoil: 48VAC; 16A/250VAC; 16A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 40.61.8.048.0000
    Manufacturer: FINDER
    Manufacturer code: 40.61.8.048.0000
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    10.74 € 10.74 € (wo VAT) 10.74 EUR

    10.74 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 48VAC; 16A/250VAC; 16A/30VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 29x12.4x25mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 320Ω
    Contacts configuration SPDT
    DC contacts rating @R 16A / 30V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 30A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 1.2VA
    Coil current 21mA
