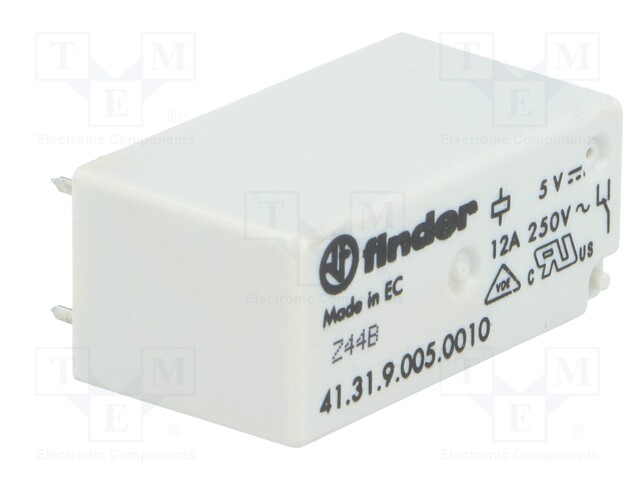

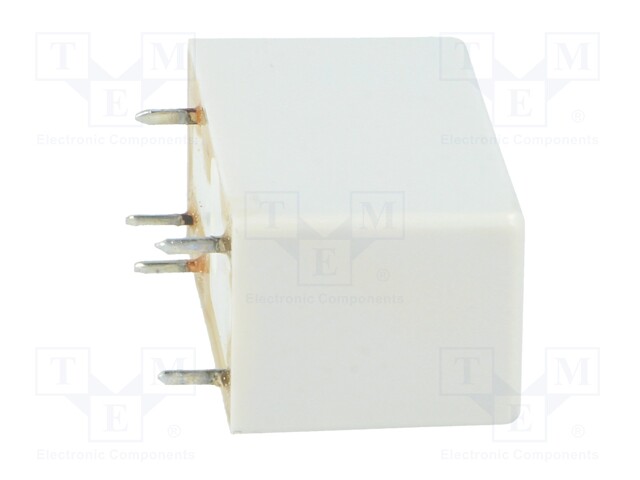

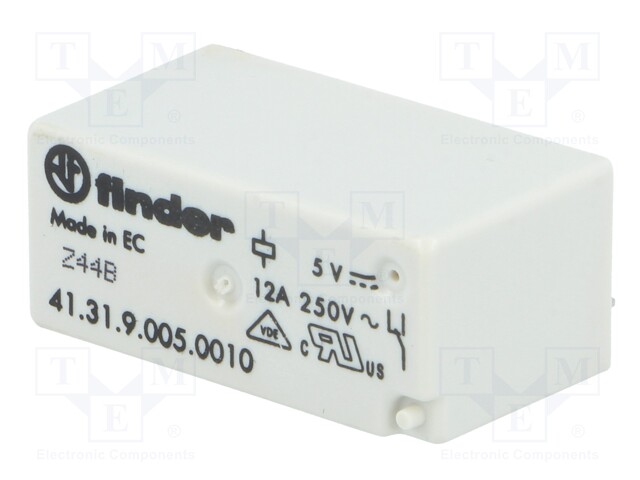

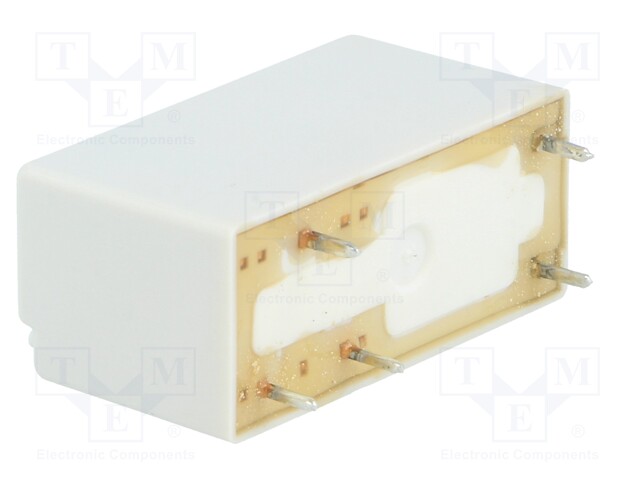

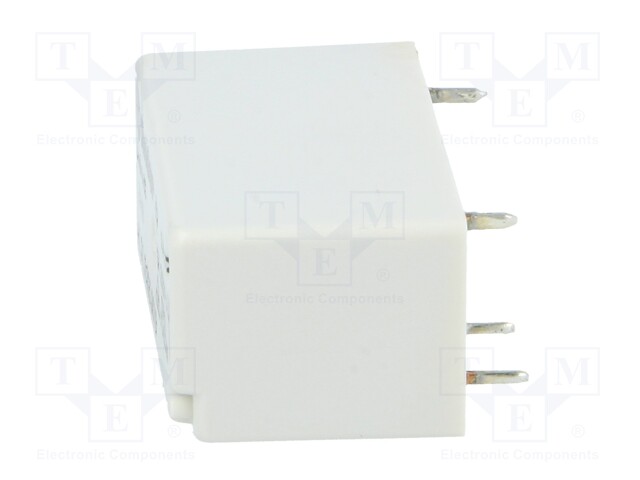

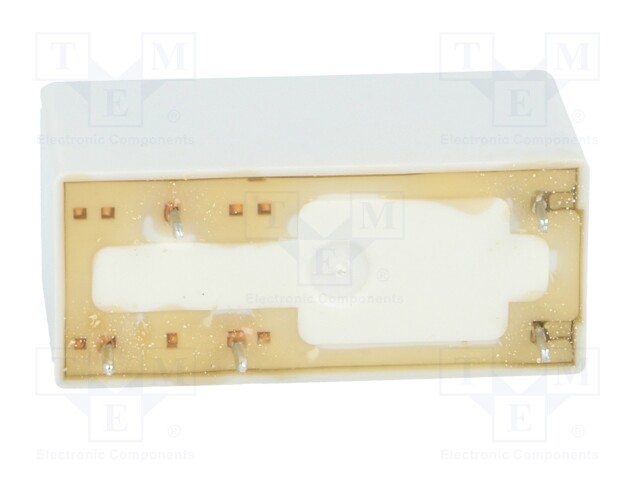

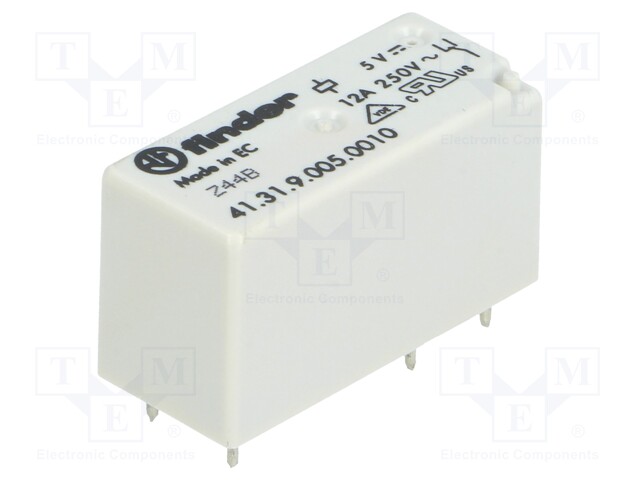

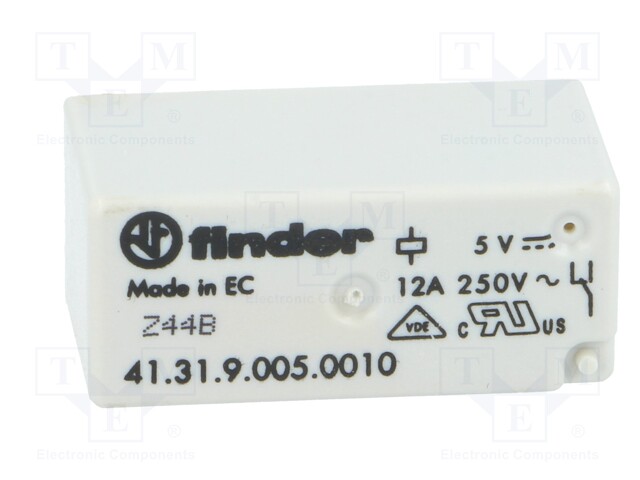

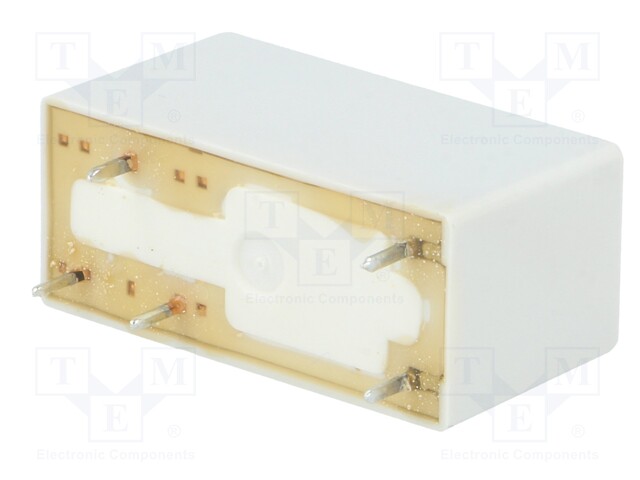

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 41.31.9.005.0010
    Manufacturer: FINDER
    Manufacturer code: 41.31.9.005.0010
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    10.59 € 10.59 € (wo VAT) 10.59 EUR

    10.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 12A/250VAC; 12A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

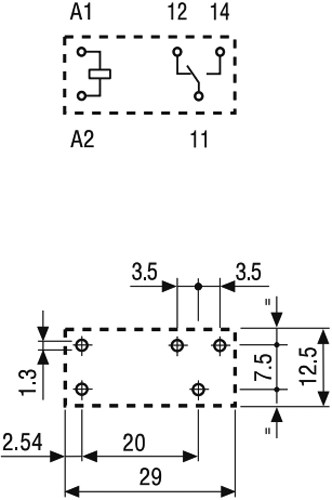

    Terminal pitch 3.5mm
    Body dimensions 29x12.5x15.7mm
    Mechanical durability 3000000cycles
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 62Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 25A
    Relay variant miniature
    Coil voltage max. 7.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 400mW
