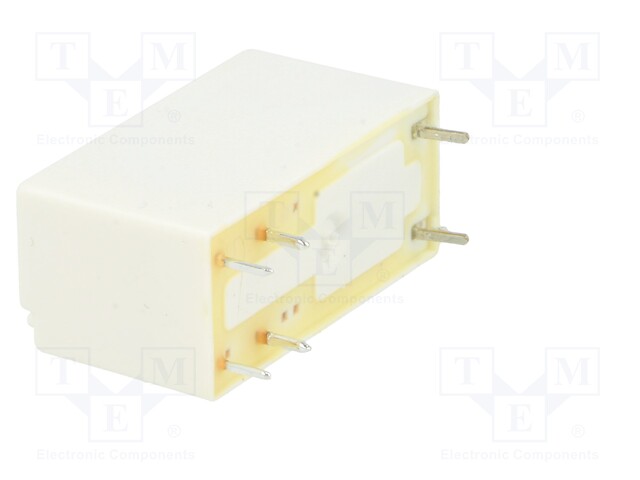

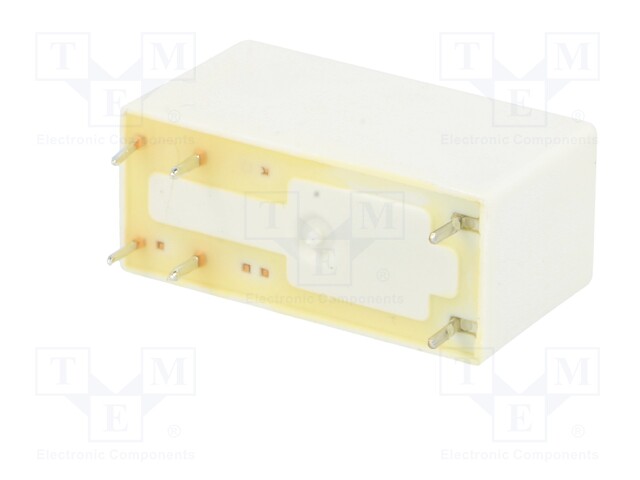

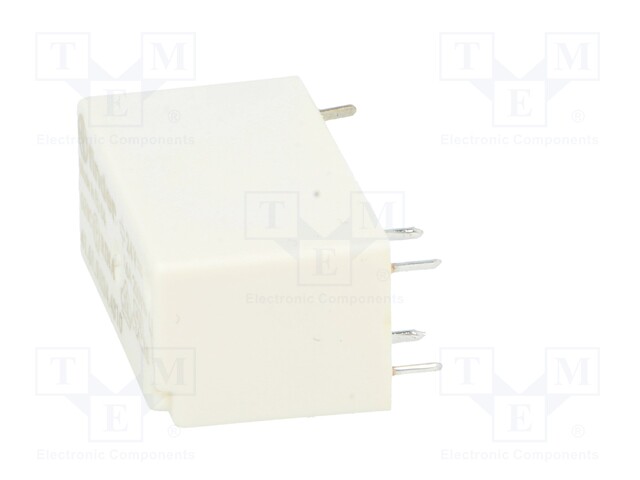

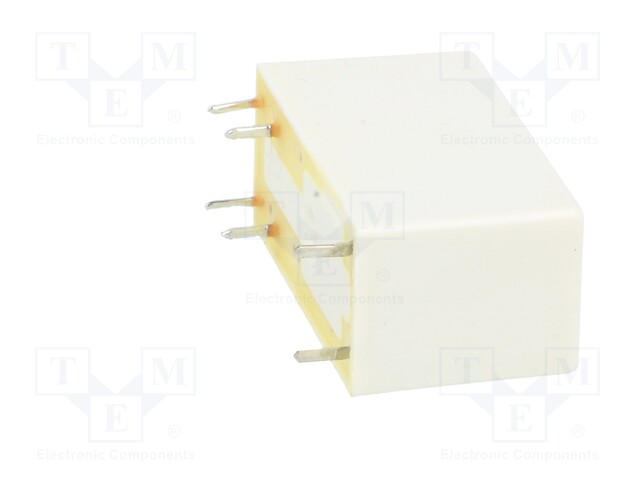

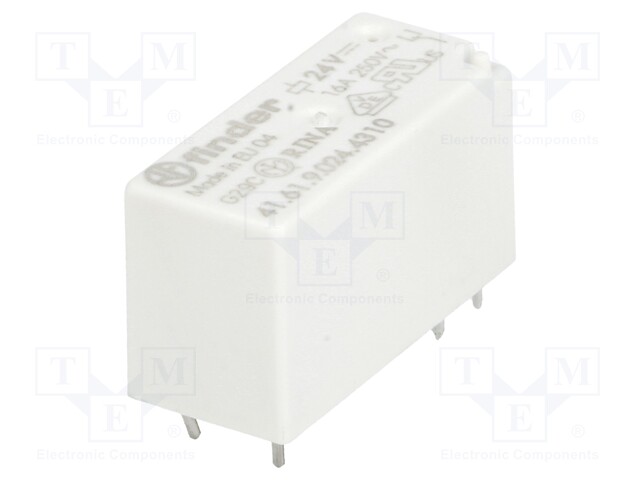

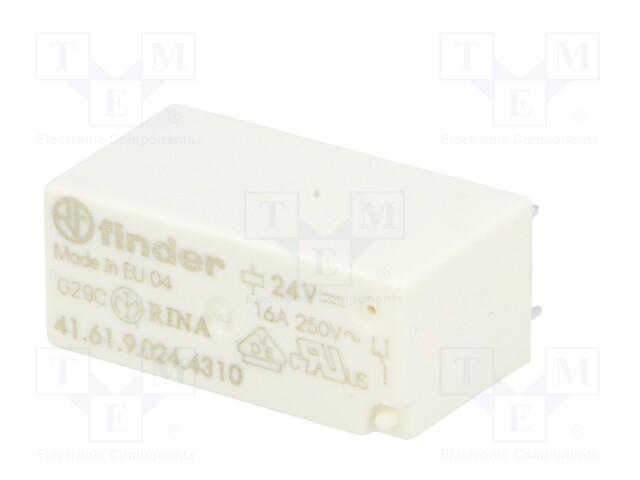

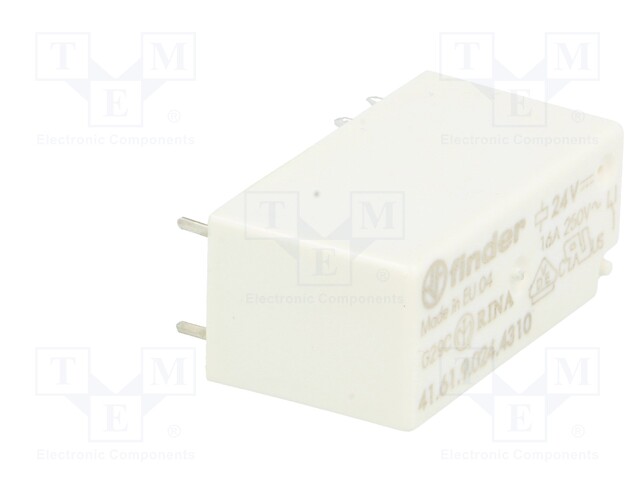

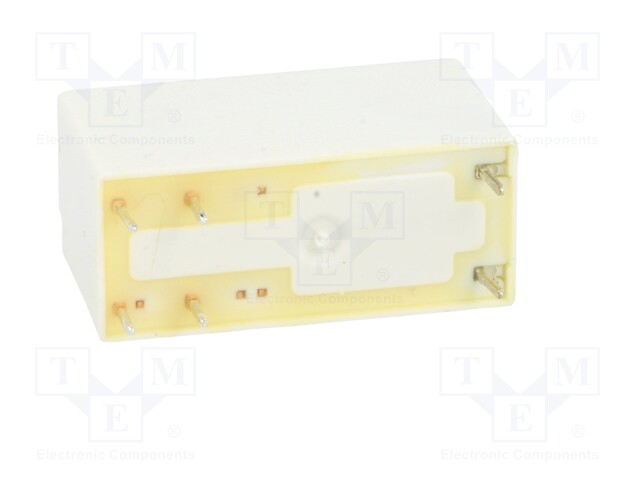

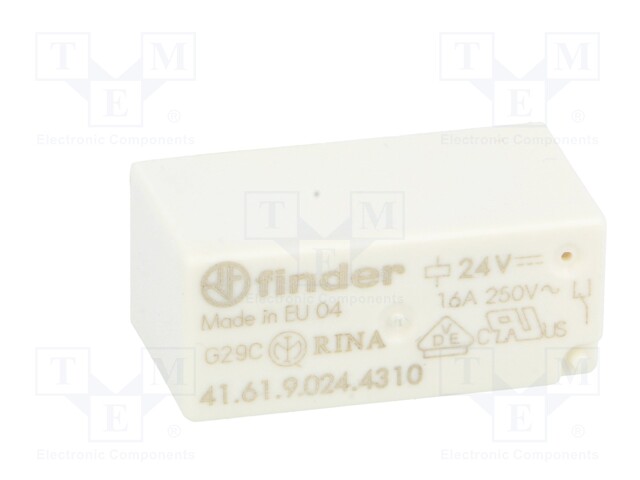

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/250VAC; 1.44kΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 41.61.9.024.4310
    Manufacturer: FINDER
    Manufacturer code: 41.61.9.024.4310
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    10.31 € 10.31 € (wo VAT) 10.31 EUR

    10.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/250VAC; 1.44kΩ

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Body dimensions 29x12.5x15.7mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 30V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 400mW
    Coil current 16.7mA
