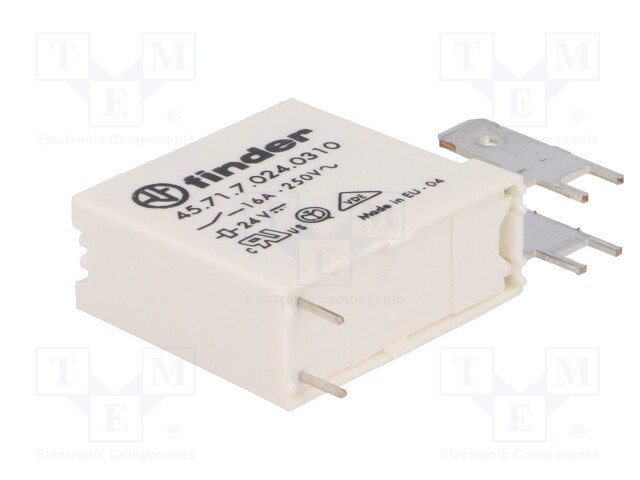

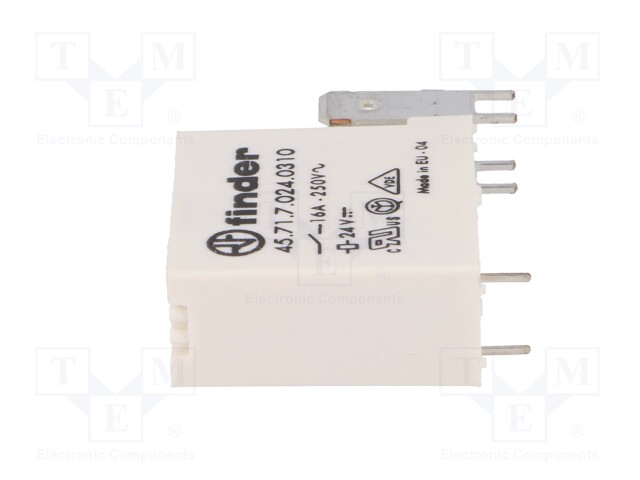

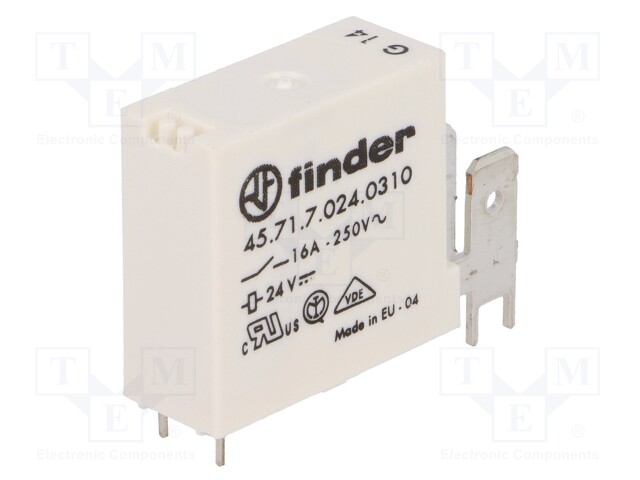

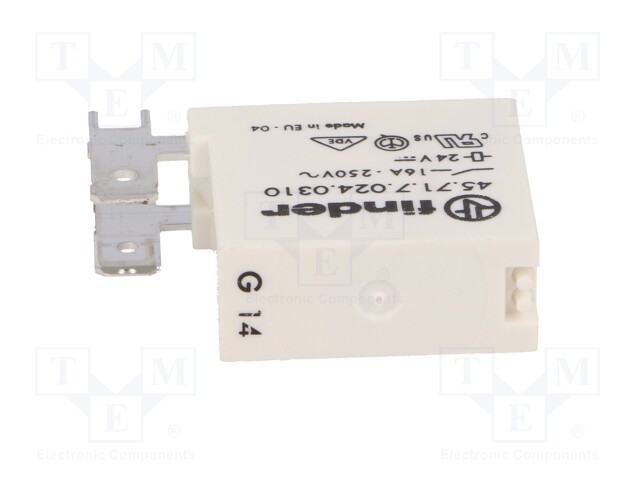

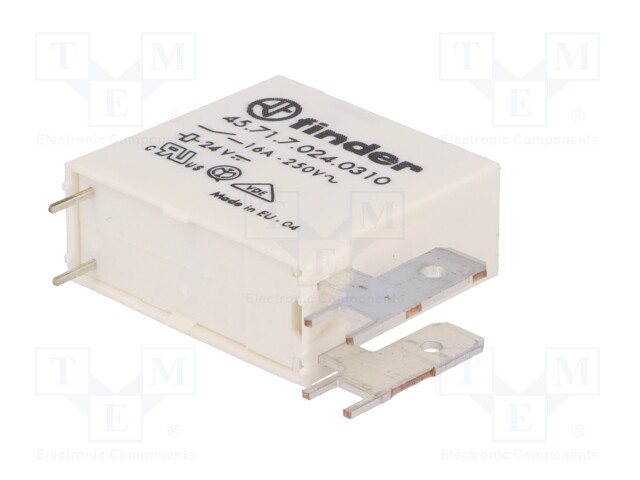

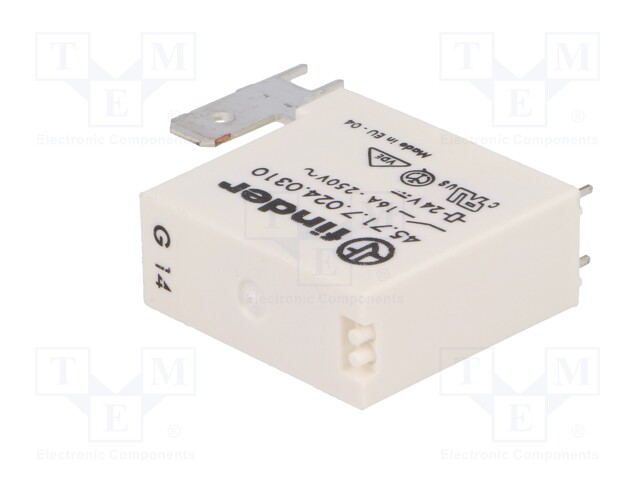

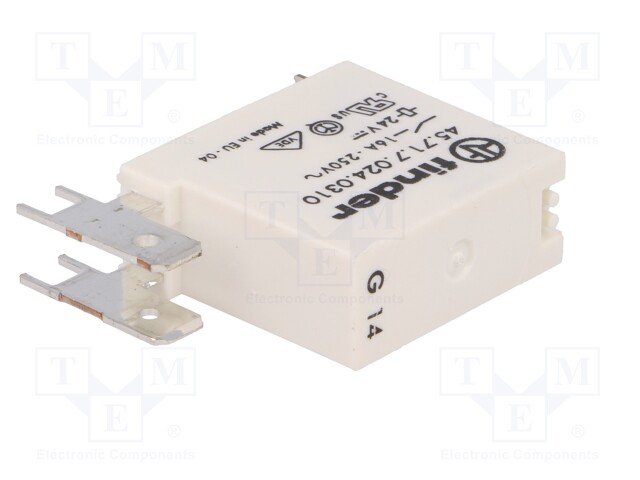

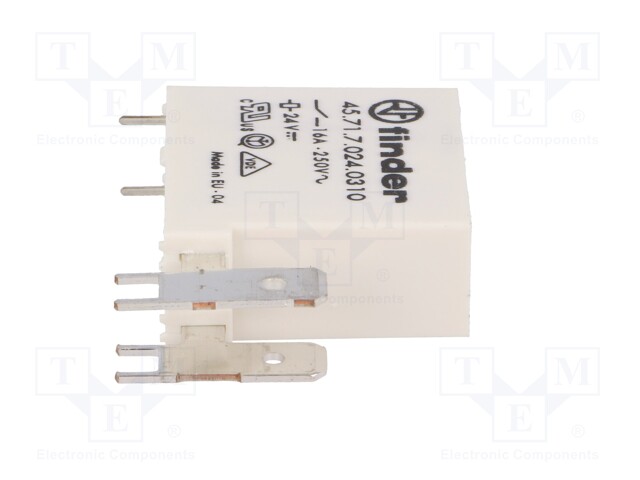

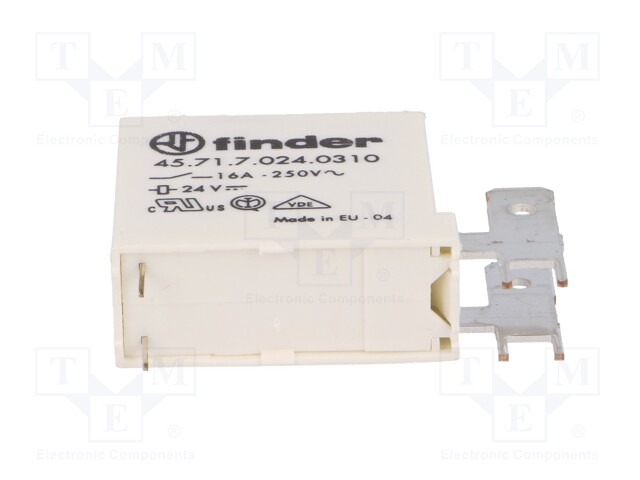

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/30VDC; 400Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 45.71.7.024.0310
    Manufacturer: FINDER
    Manufacturer code: 45.71.7.024.0310
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    9.59 € 9.59 € (wo VAT) 9.59 EUR

    9.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/30VDC; 400Ω

    Mounting PCB
    Operating temperature -40...125°C
    Contact material AgCdO

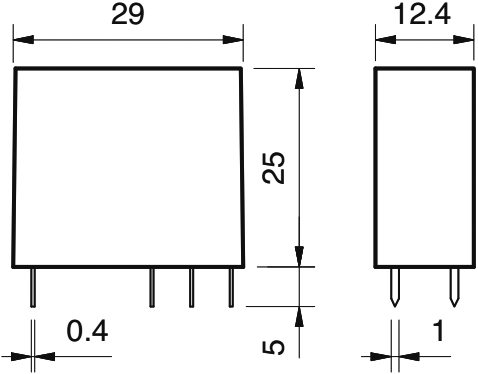

    Body dimensions 40.7x12.5x28.5mm
    Switched voltage max. 400V AC
    Coil resistance 400Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 30V DC
    Contact current max. 16A
    Relay variant miniature, sensitive
    Type of relay electromagnetic
    Coil power consumption 360mW
    Coil current 15mA
