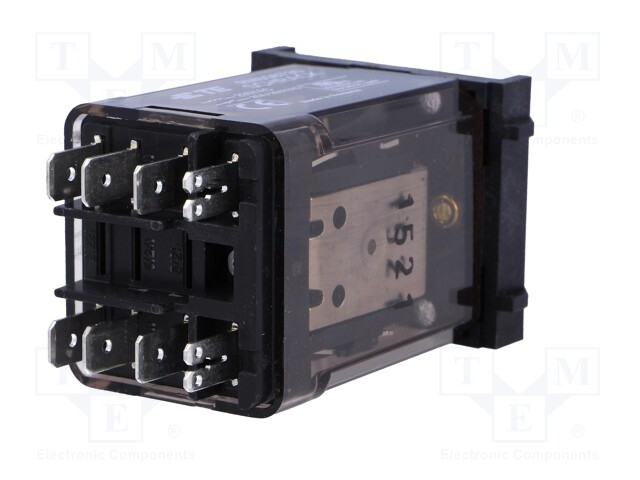

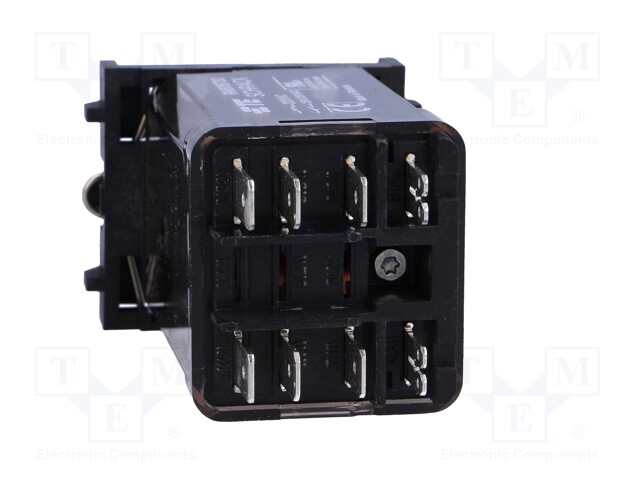

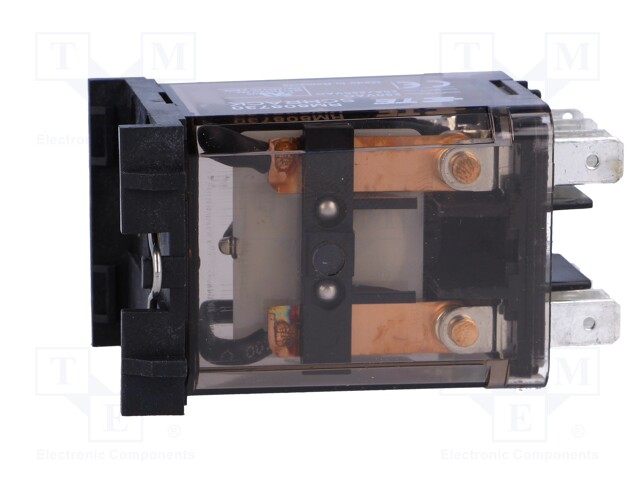

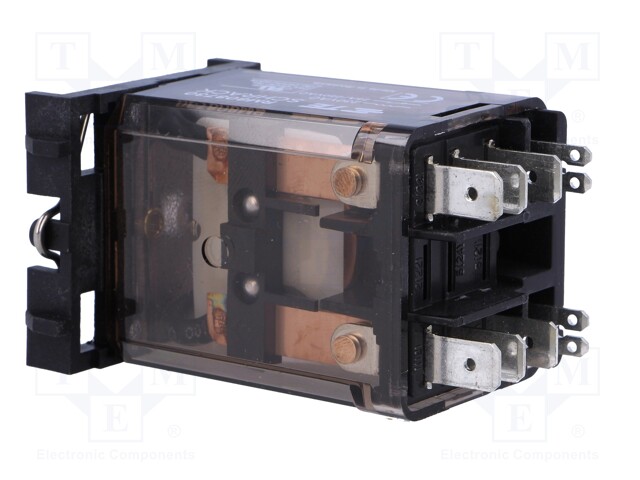

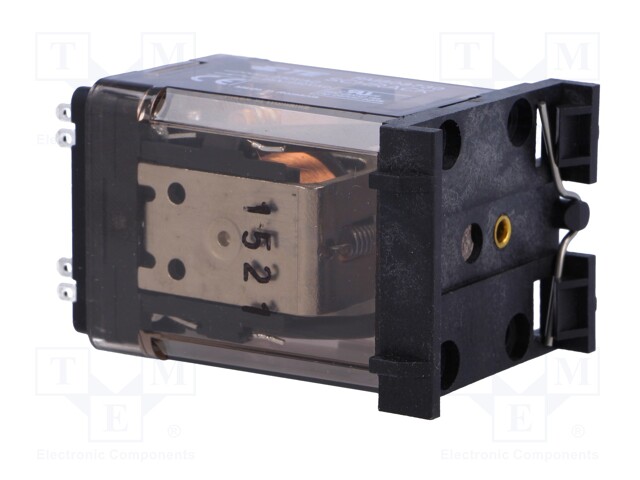

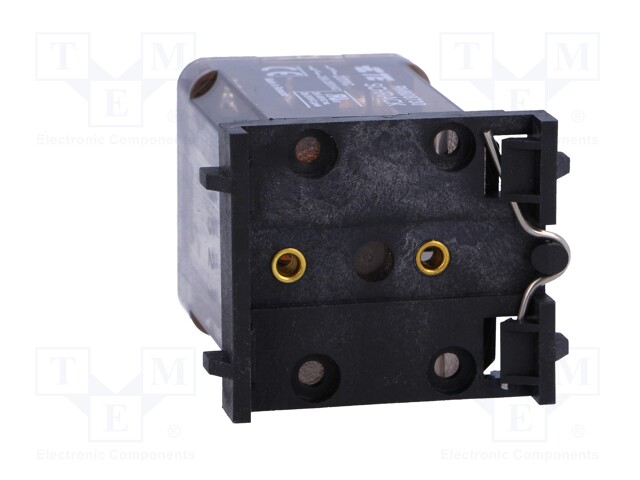

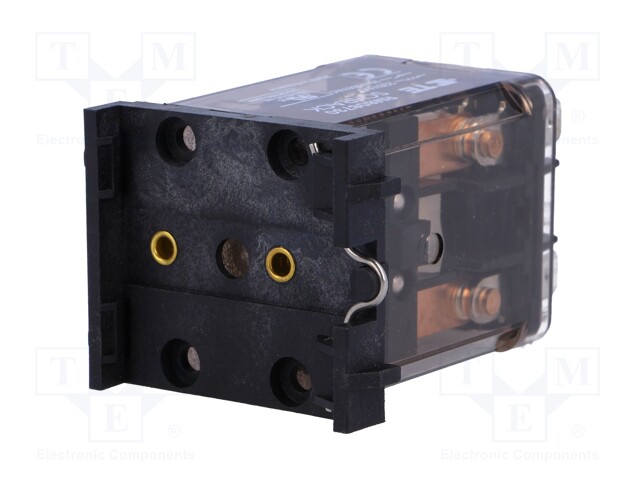

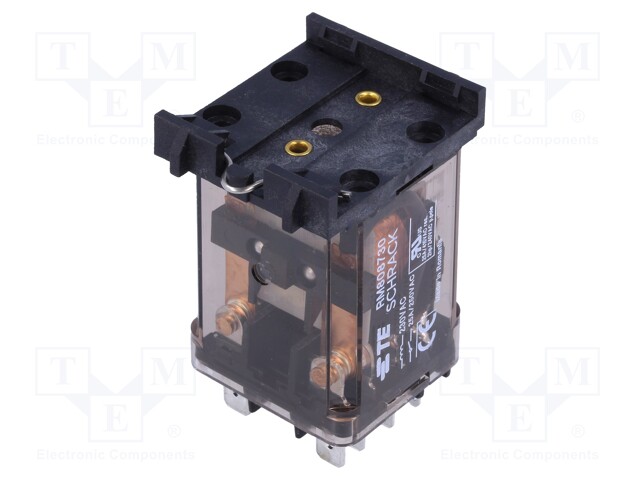

Relay: electromagnetic; DPDT; Ucoil: 230VAC; 25A/250VAC; 25A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 5-1393149-7
    Manufacturer: TE Connectivity
    Manufacturer code: 5-1393149-7
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 230VAC; 25A/250VAC; 25A/30VDC

    Mounting for DIN rail mounting
    Operating temperature -45...40°C
    Leads connectors
    Contact material AgCdO
    Body dimensions 38.5x38.5x58.5mm
    Mechanical durability 100000000cycles
    Switched voltage max. 300V DC, max. 440V AC
    Coil resistance 7.5kΩ
    Contacts configuration DPDT
    DC contacts rating @R 25A / 30V DC
    AC contacts rating @R 25A / 250V AC
    Contact current max. 25A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.8VA
    Operate time 15ms
    Release time 15ms
    Coil current 11.7mA
