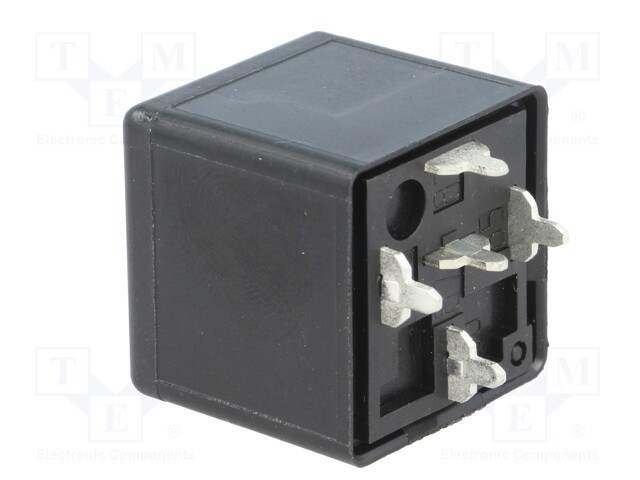

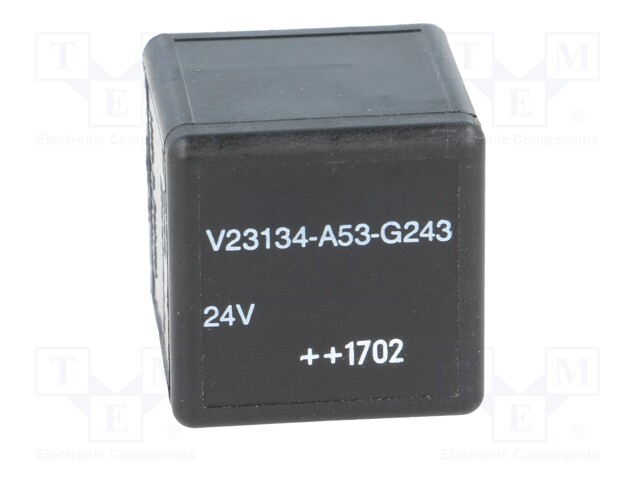

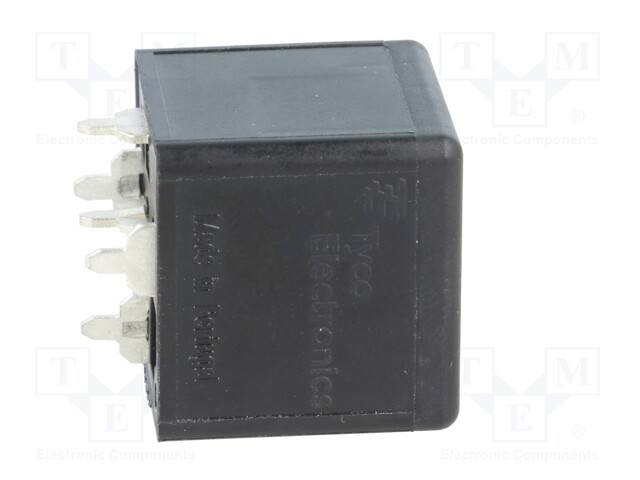

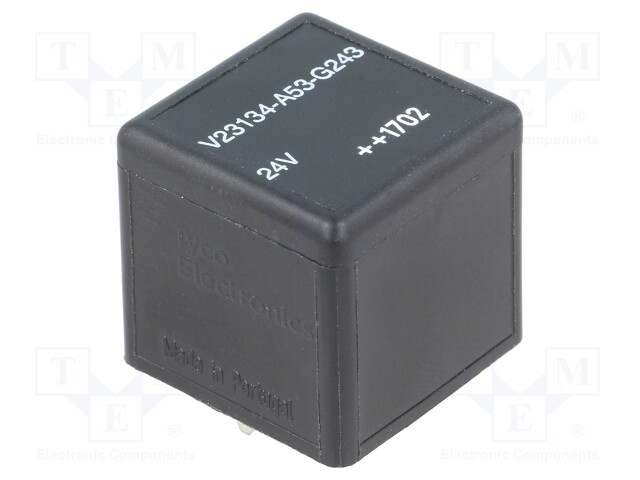

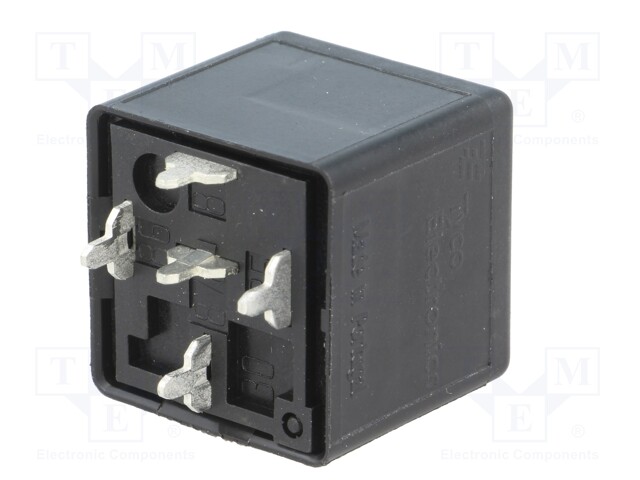

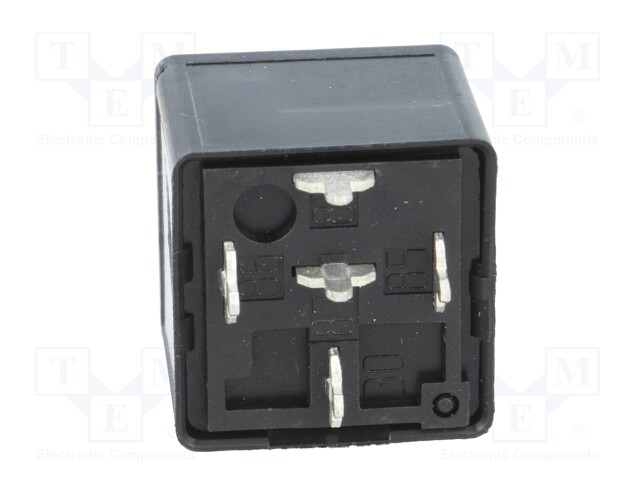

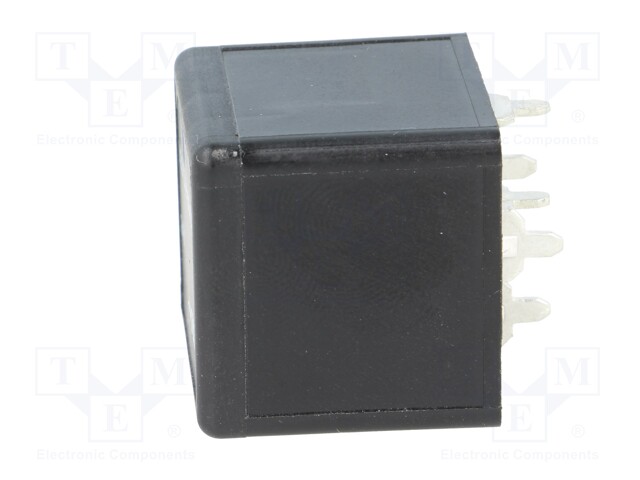

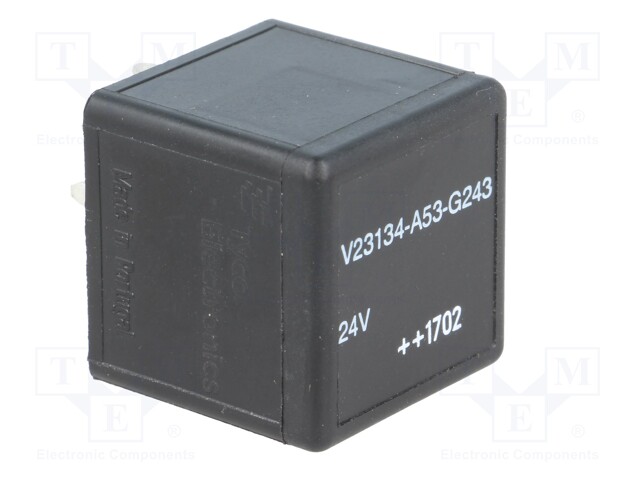

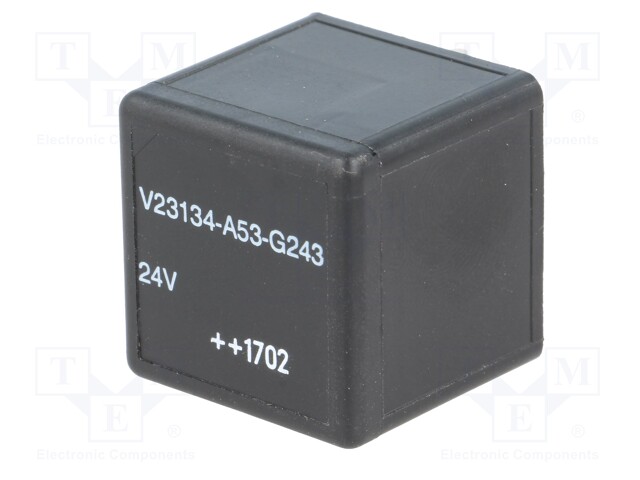

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 60A; automotive; 324Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 5-1393302-2
    Manufacturer: TE Connectivity
    Manufacturer code: 5-1393302-2
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    16.37 € 16.37 € (wo VAT) 16.37 EUR

    16.37 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 60A; automotive; 324Ω

    Mounting PCB
    Operating temperature -40...125°C

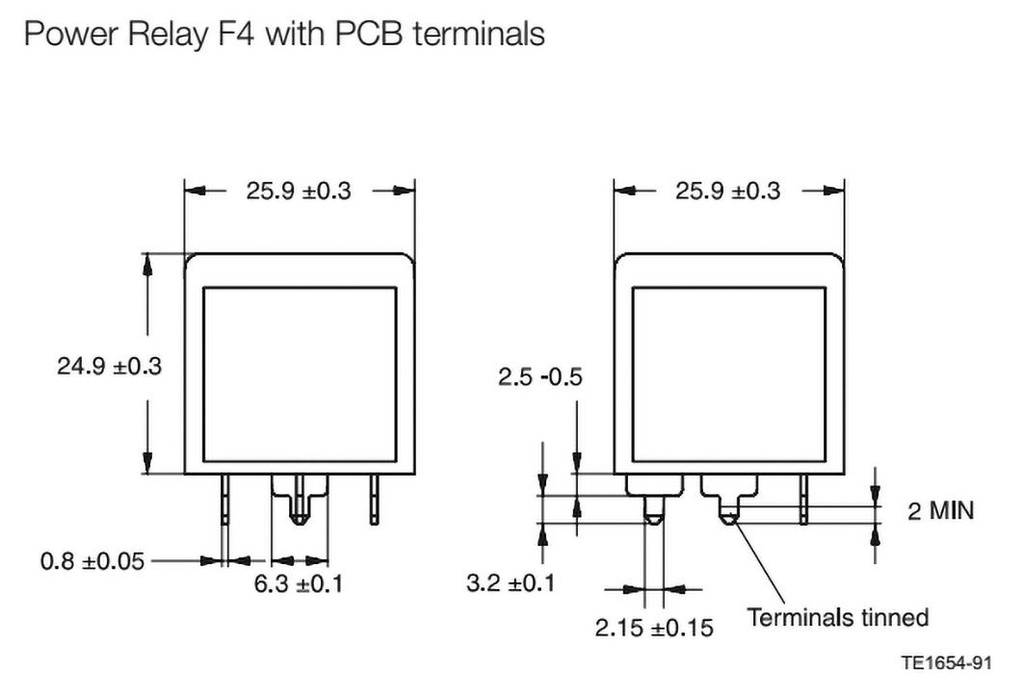

    Body dimensions 25.9x25.9x24.9mm
    Switched voltage max. 28V DC
    Coil resistance 324Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 45A / 24V DC
    Contact current max. 60A
    Relay variant automotive
    Type of relay electromagnetic
    Coil voltage min. 14.4V DC
    Coil power consumption 1.8W
