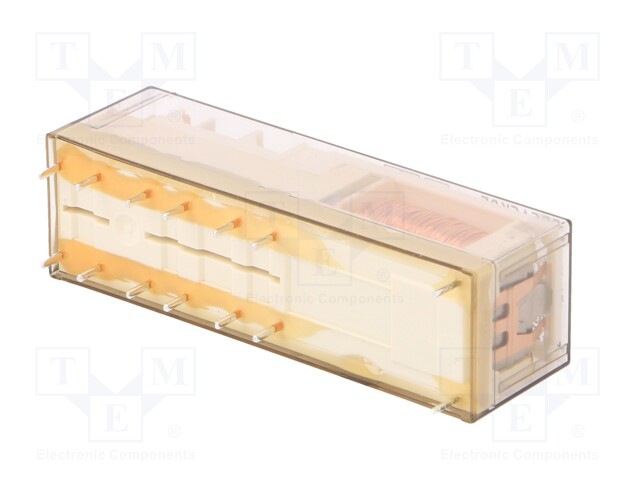

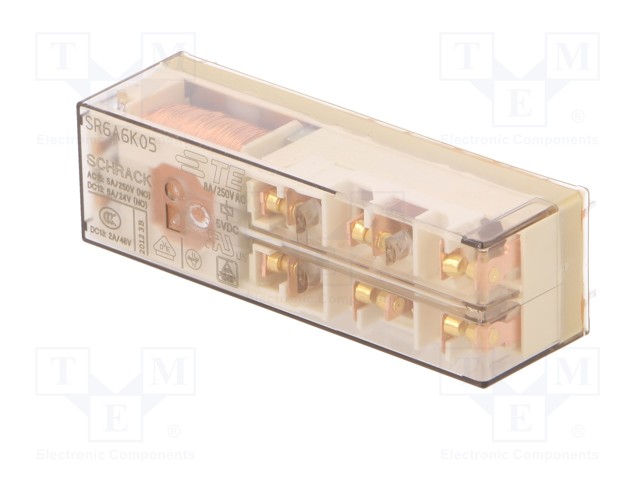

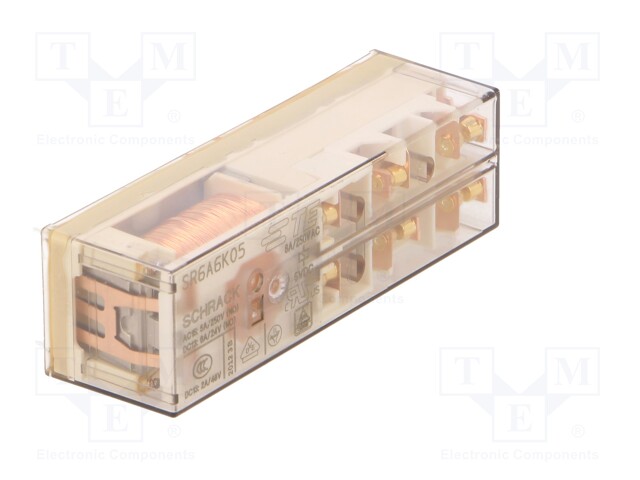

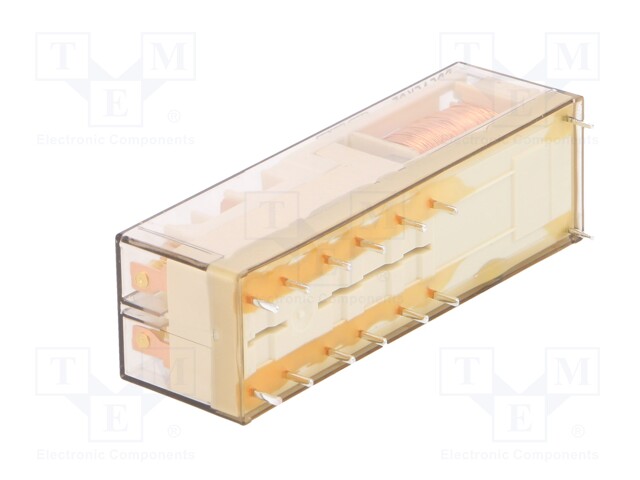

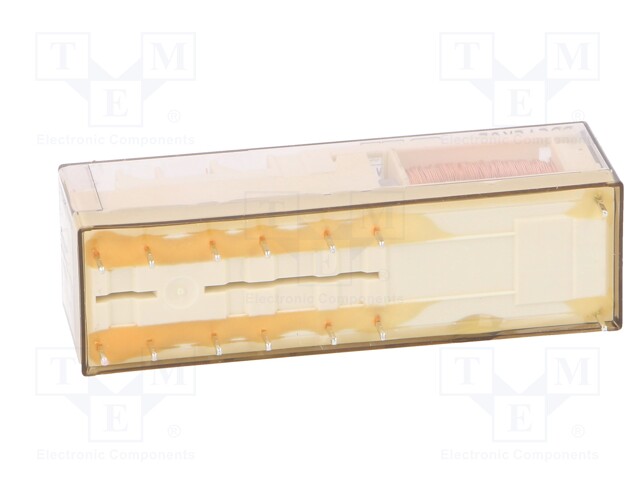

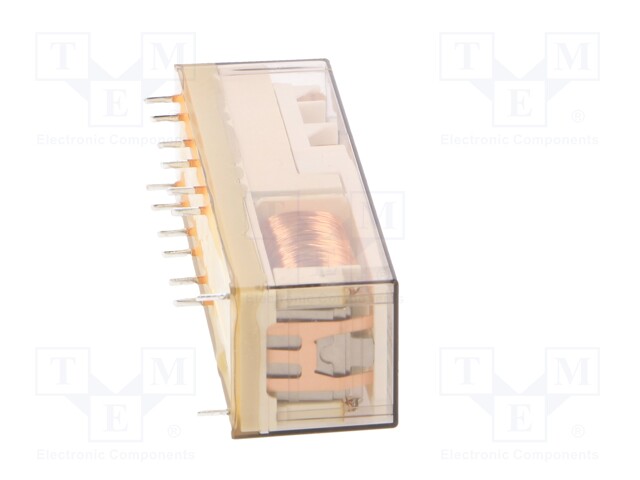

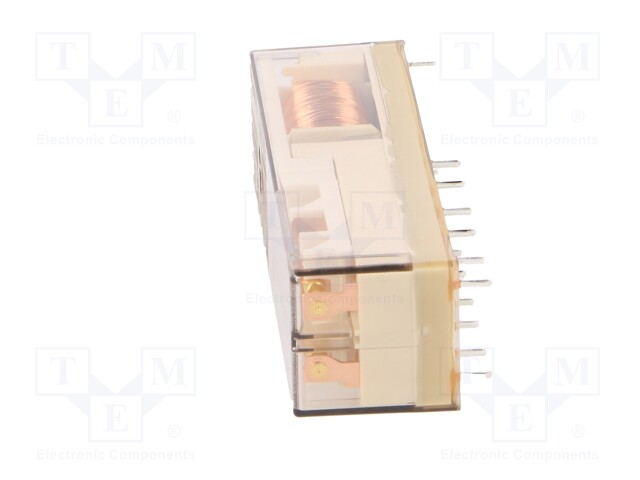

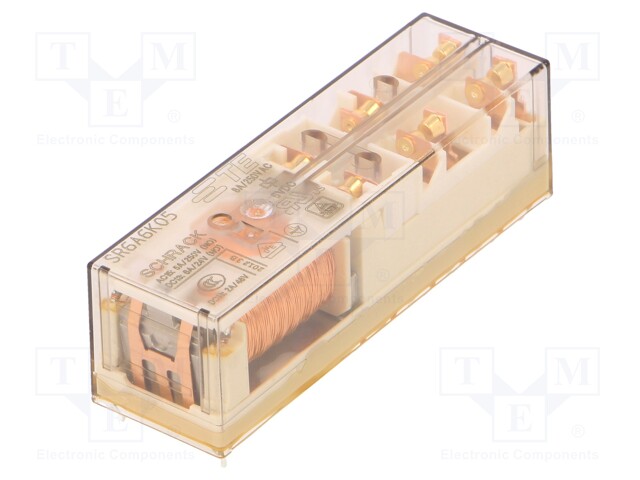

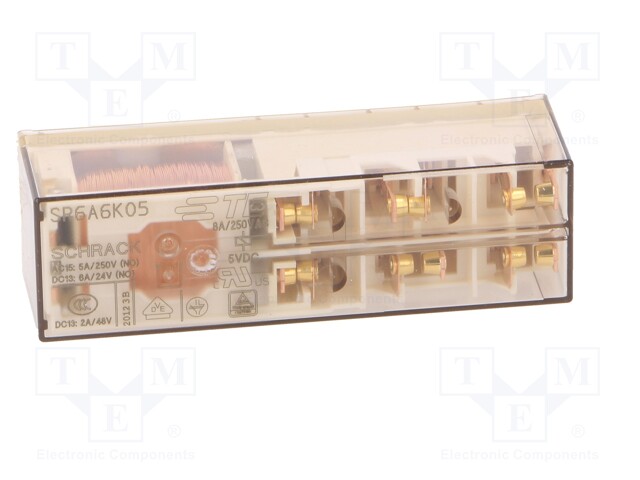

Relay: electromagnetic; NC x3 + NO x3; Ucoil: 5VDC; 6A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 5-1415537-8
    Manufacturer: TE Connectivity
    Manufacturer code: 5-1415537-8
    • Mounting
    • Operating temperature
    • Number of pins
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.

    42.18 € 42.18 € (wo VAT) 42.18 EUR

    42.18 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; NC x3 + NO x3; Ucoil: 5VDC; 6A/250VAC

    Mounting PCB
    Operating temperature -20...70°C
    Number of pins 14
    Contact material AgSnO<sub>2</sub>

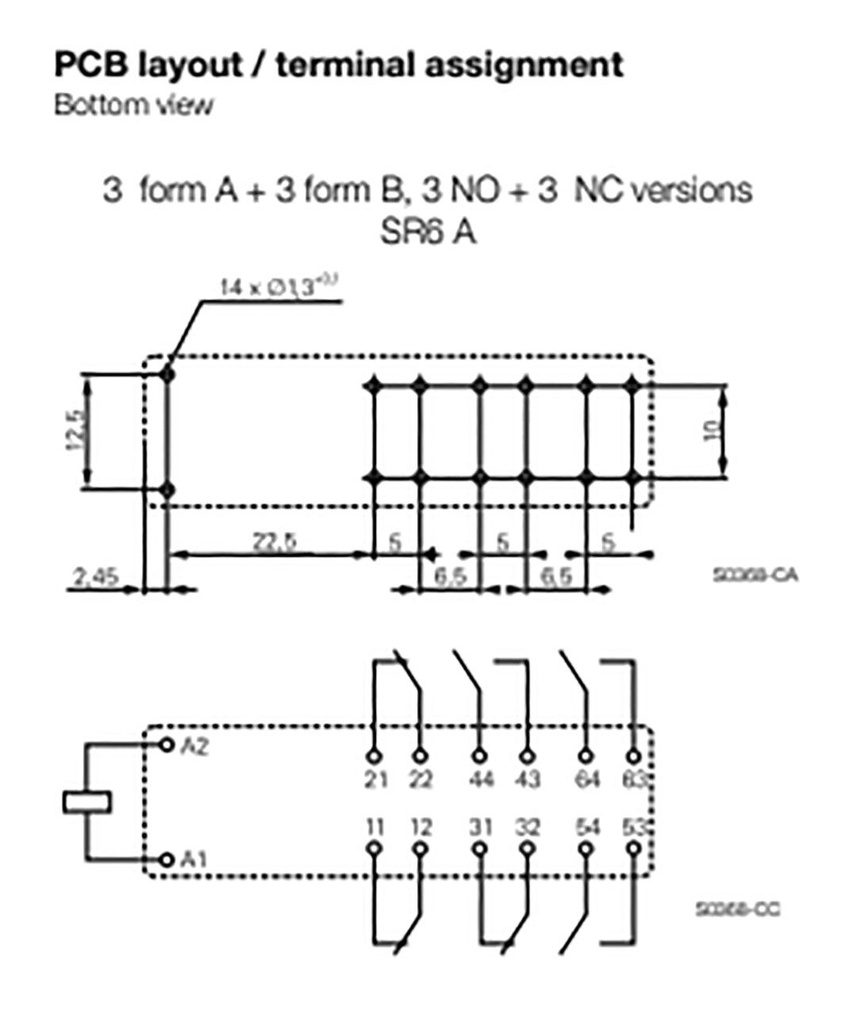

    Terminal pitch 5.5mm

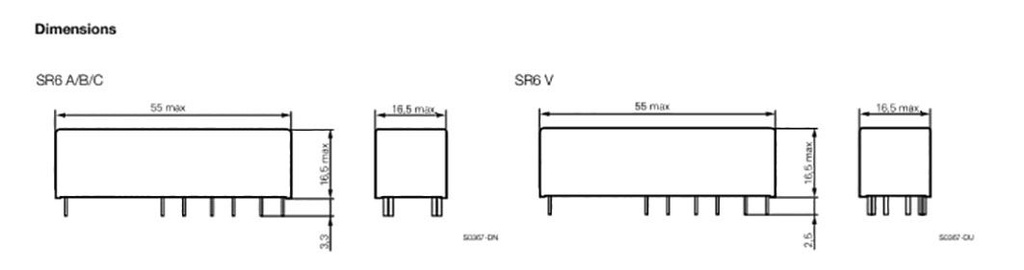

    Body dimensions 55x16.5x16.5mm
    Switched voltage max. 24V DC, max. 250V AC
    Coil resistance 31Ω
    Rated coil voltage 5V DC
    Contacts configuration NC x3 + NO x3
    DC contacts rating @R 6A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.8V DC
