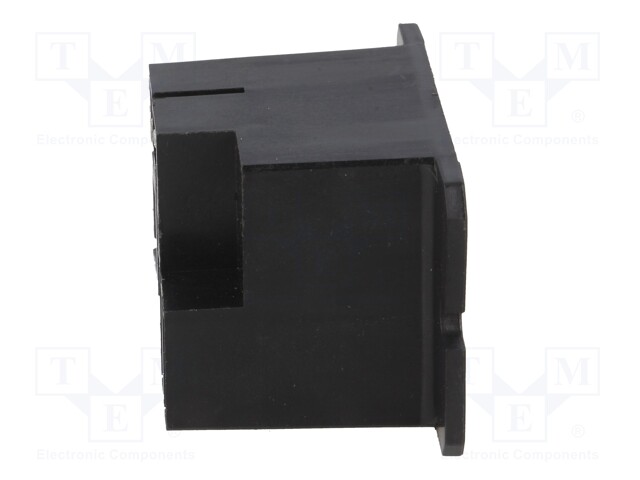

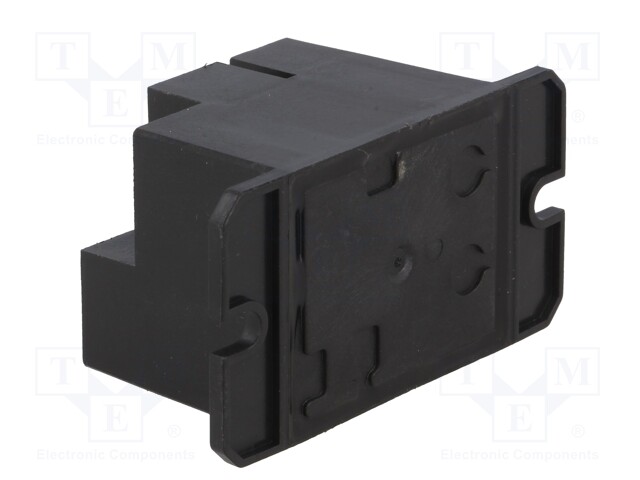

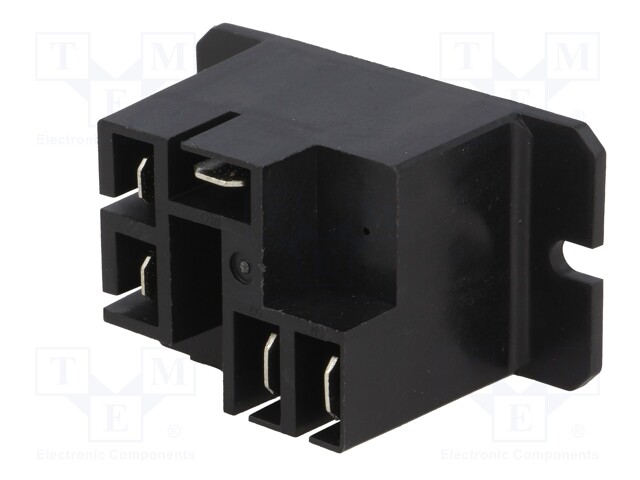

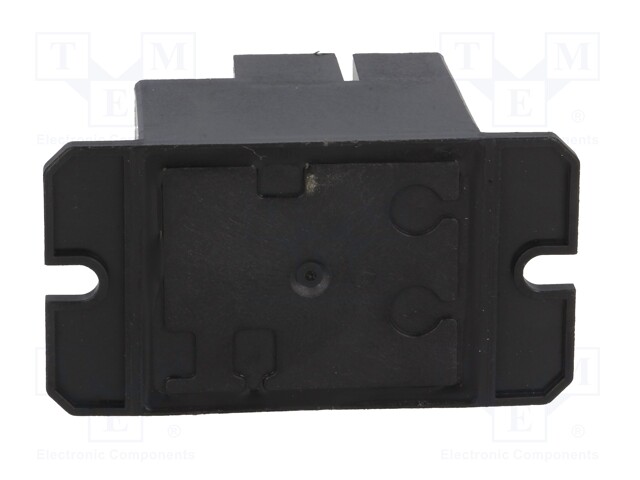

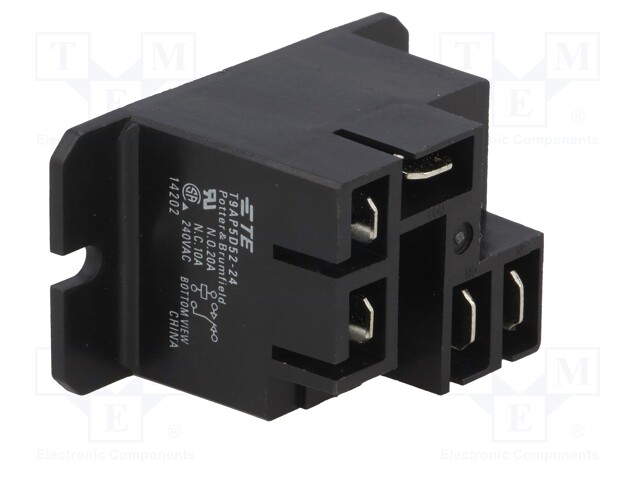

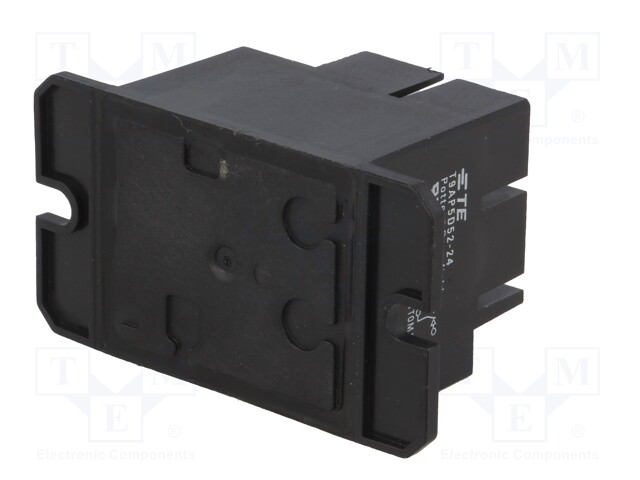

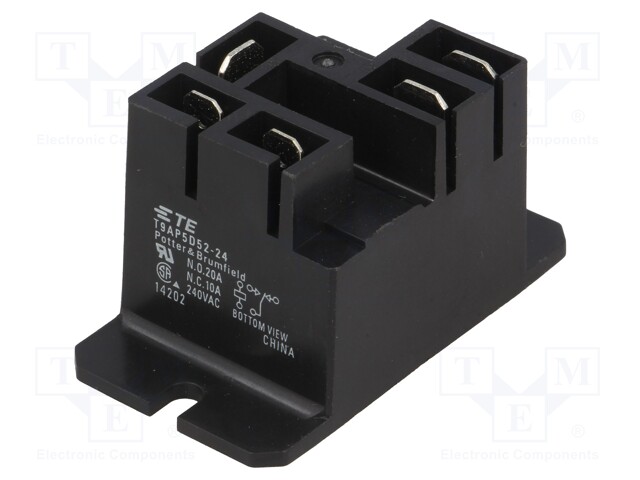

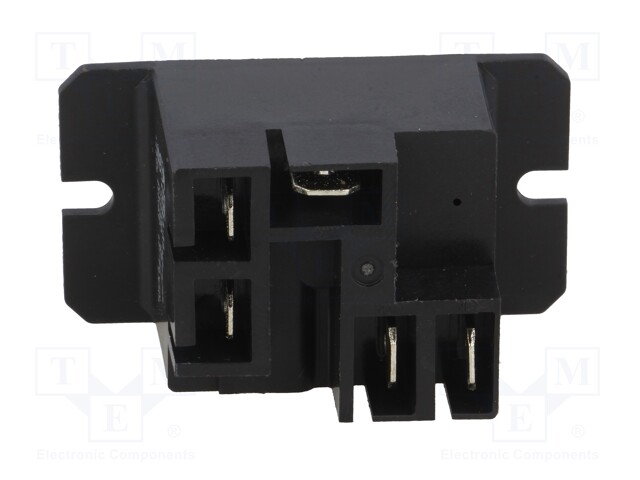

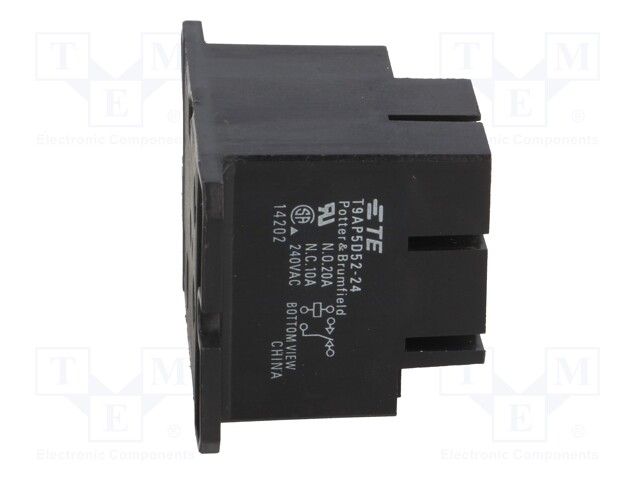

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A; Ucoil min: 18VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 5-1419102-2
    Manufacturer: TE Connectivity
    Manufacturer code: 5-1419102-2
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    10.98 € 10.98 € (wo VAT) 10.98 EUR

    10.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A; Ucoil min: 18VDC

    Mounting on panel
    Operating temperature -55...85°C
    Leads connectors
    Contact material AgCdO
    Body dimensions 50.3x27.9x27.4mm
    Mechanical durability 10000000cycles
    Switched voltage max. 28V DC, max. 277V AC
    Coil resistance 576Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 28V DC
    Contact resistance 75mΩ
    AC contacts rating @R 20A / 240V AC
    Contact current max. 20A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 1W
