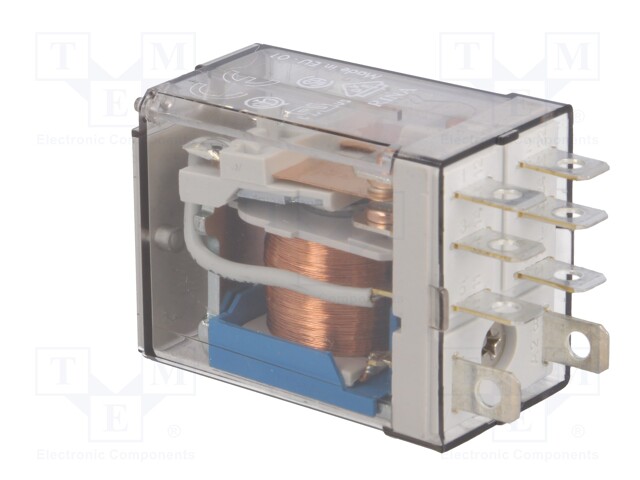

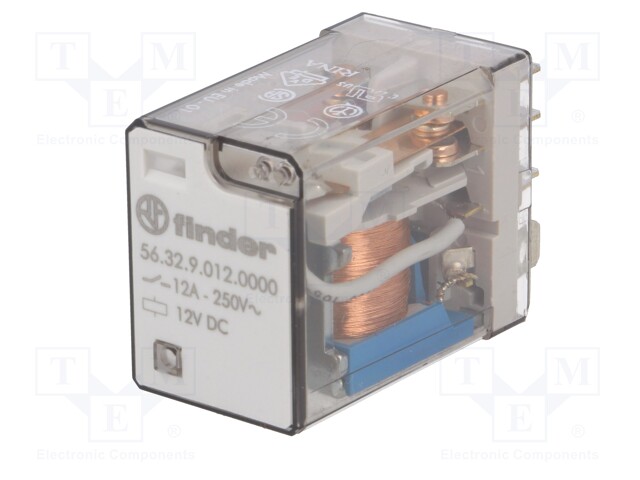

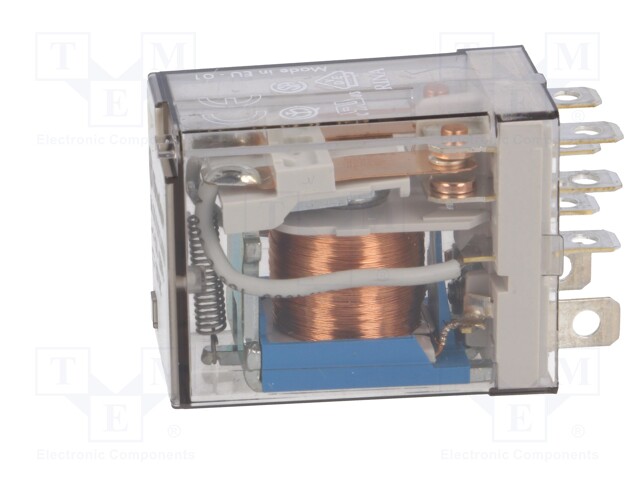

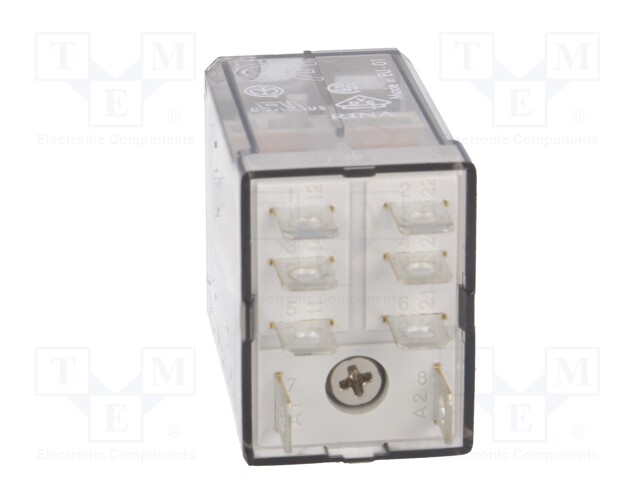

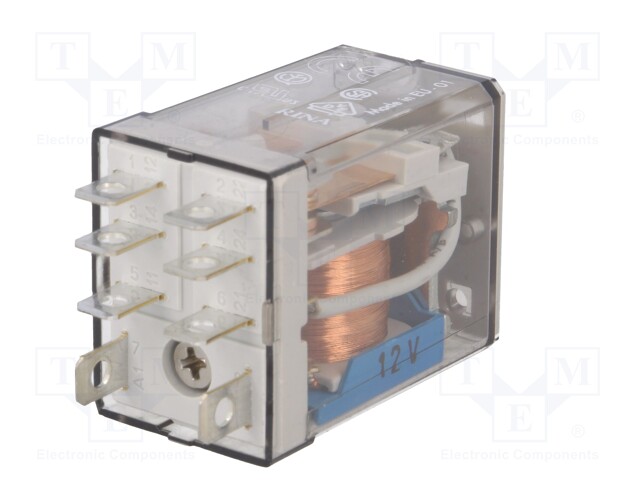

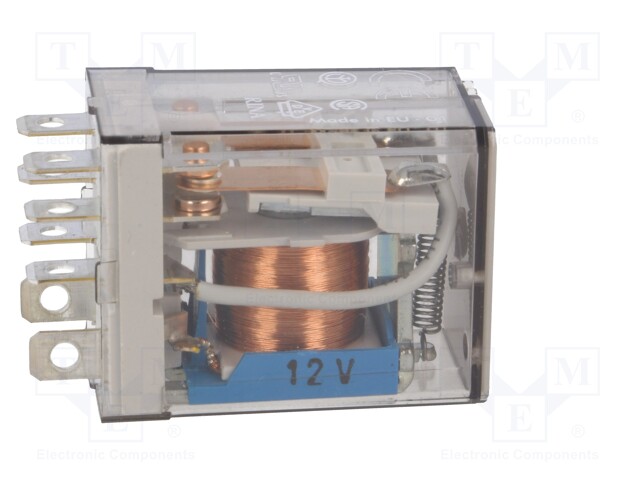

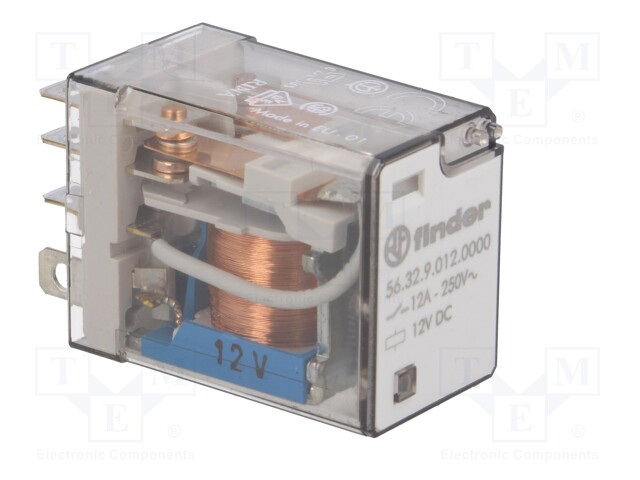

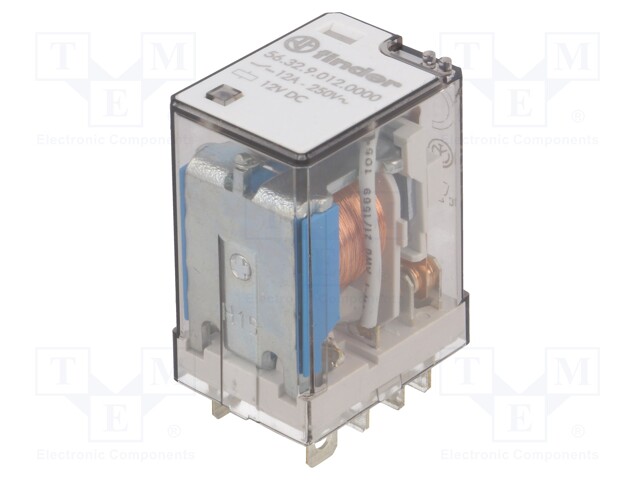

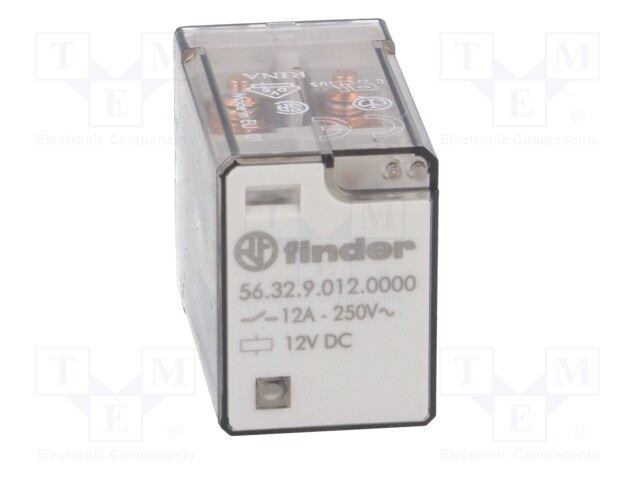

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 56.32.9.012.0000
    Manufacturer: FINDER
    Manufacturer code: 56.32.9.012.0000
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 12A/250VAC; 12A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Leads connectors
    Contact material AgNi
    Body dimensions 27.7x20.7x37.7mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 123Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.1W
    Coil current 97mA
