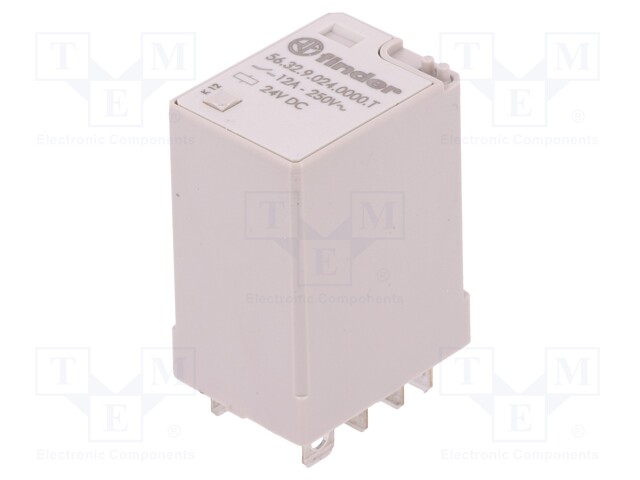

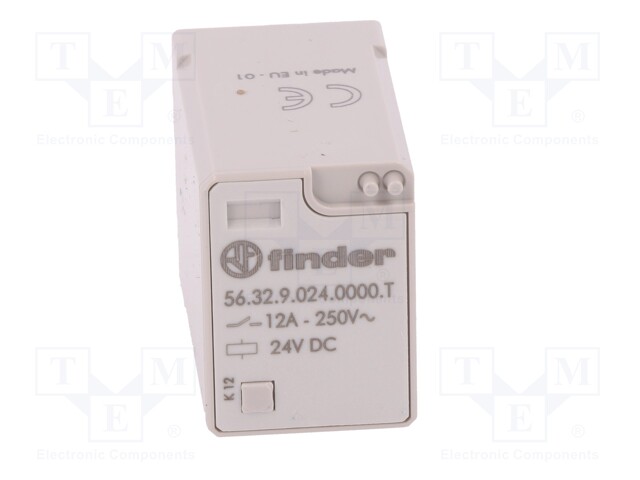

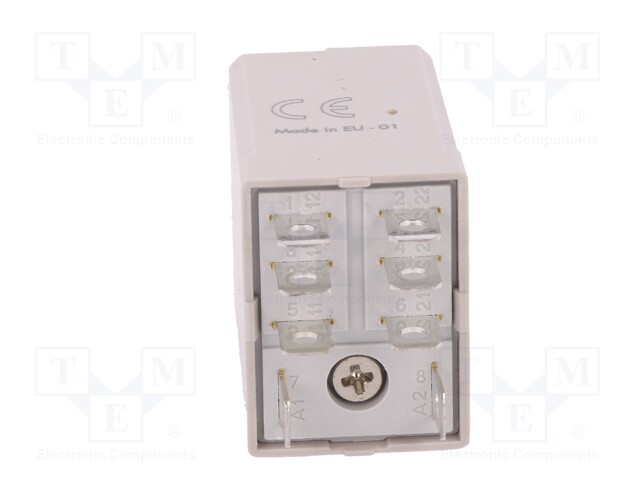

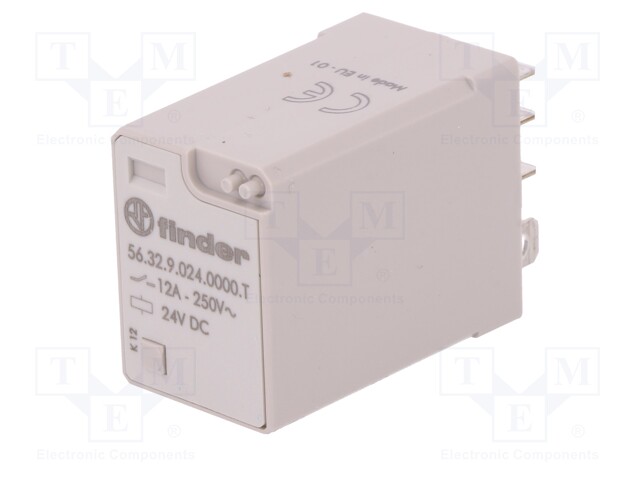

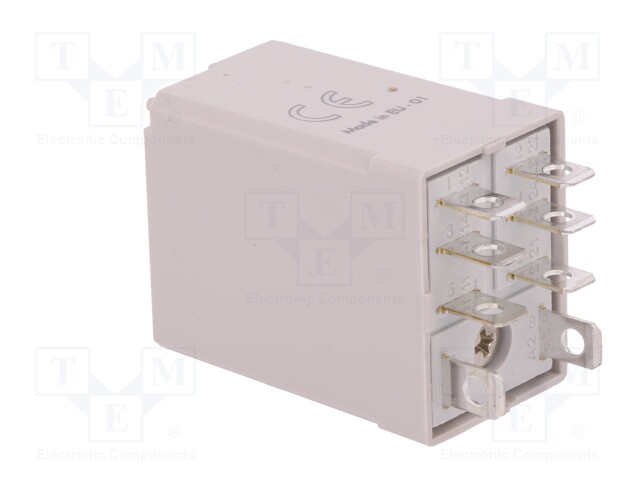

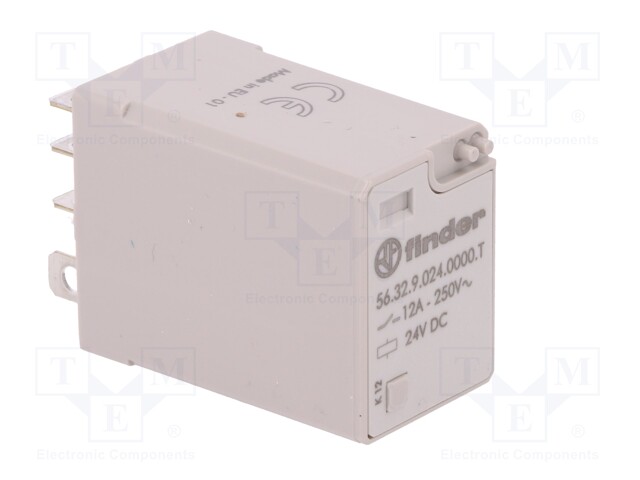

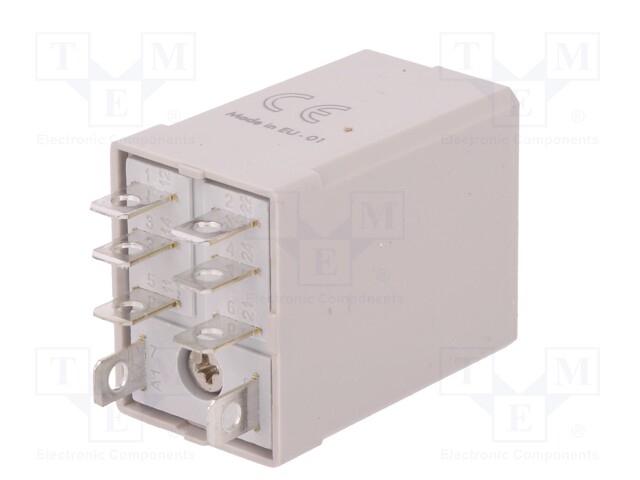

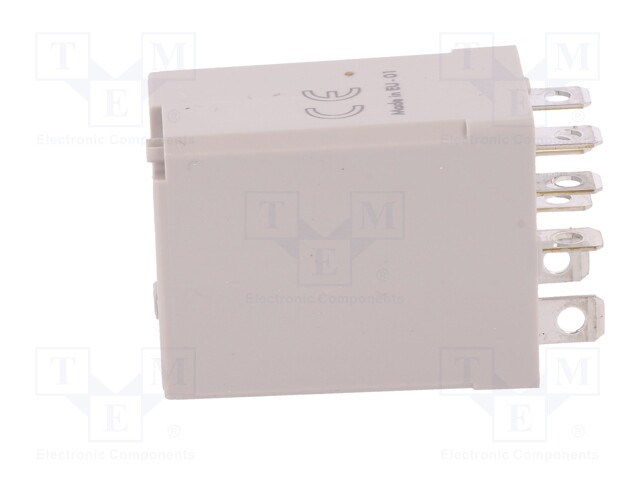

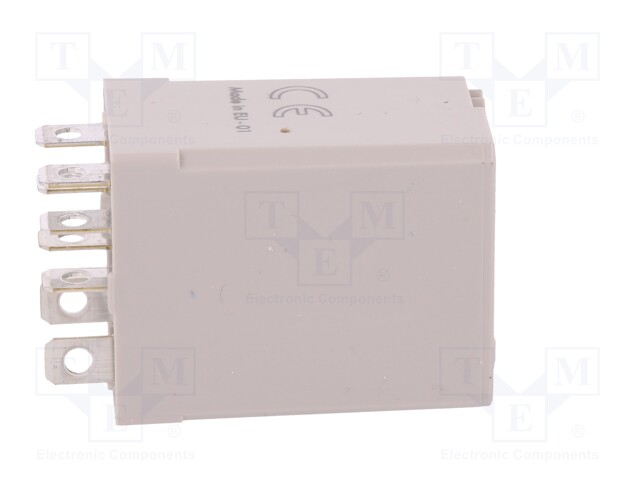

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 56.32.9.024.0000T
    Manufacturer: FINDER
    Manufacturer code: 56.32.9.024.0000T
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Switched voltage
    • Switched voltage
    • Conform to the norm
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    19.57 € 19.57 € (wo VAT) 19.57 EUR

    19.57 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 12A/250VAC; 12A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Leads connectors
    Contact material AgNi
    Switched voltage max. 220V DC, max. 400V AC
    Conform to the norm EN 50155
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1W
    Coil current 40mA
