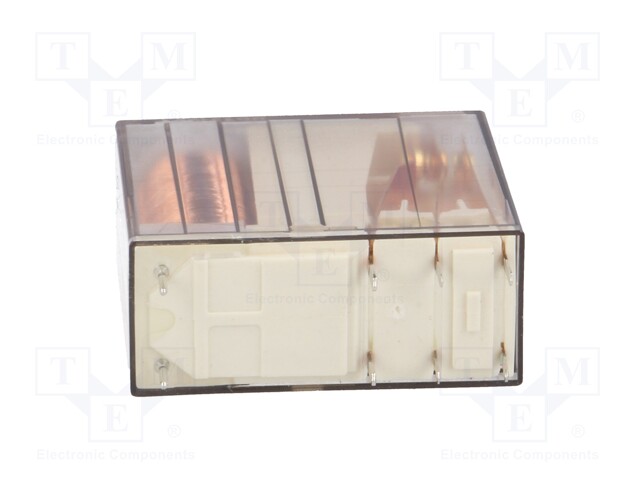

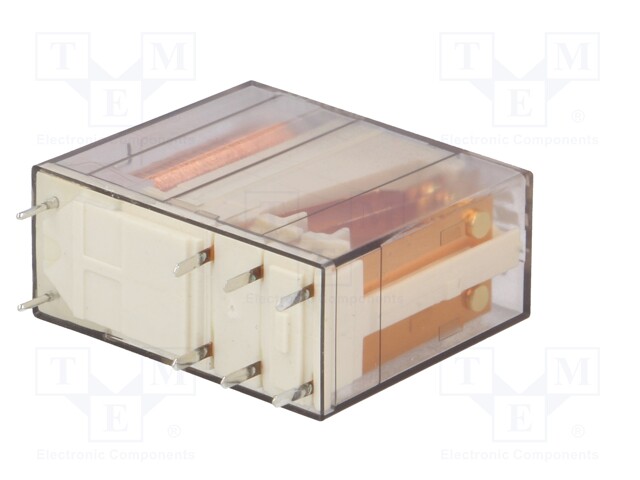

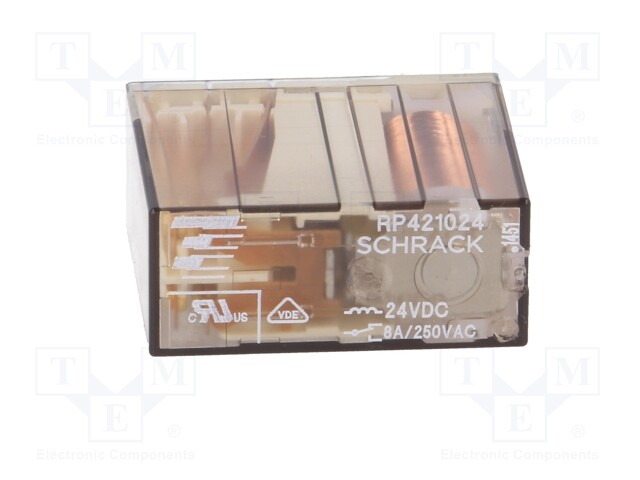

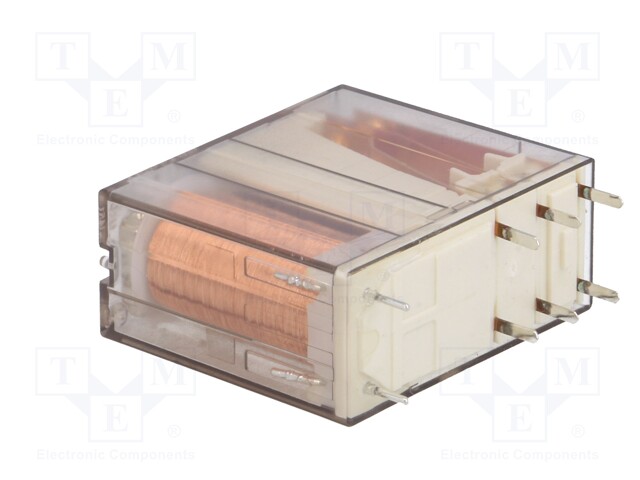

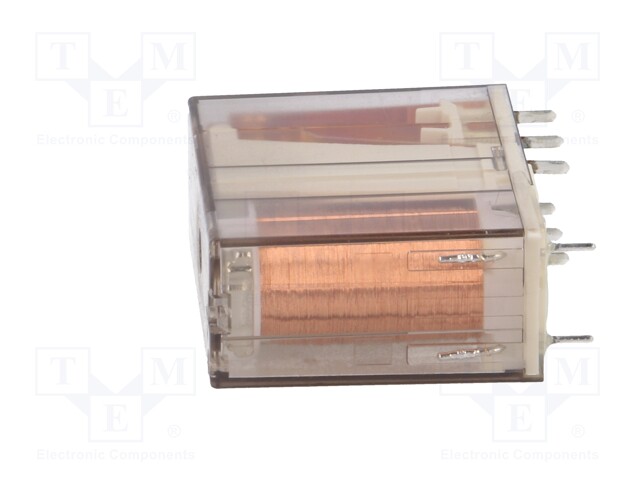

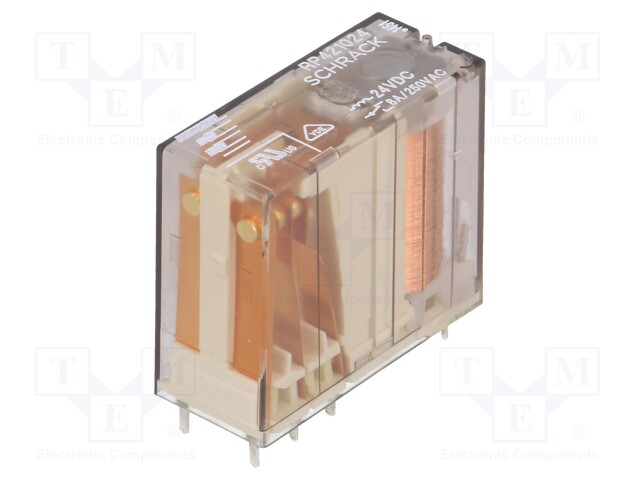

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 6-1393234-8
    Manufacturer: TE Connectivity
    Manufacturer code: 6-1393234-8
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    10.50 € 10.50 € (wo VAT) 10.5 EUR

    10.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...70°C
    IP rating IP40
    Contact material AgNi
    Terminal pitch 5mm
    Body dimensions 29x12.6x25.5mm
    Mechanical durability 30000000cycles
    Switched voltage max. 300V DC, max. 440V AC
    Switching capacity 4kVA
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.5W
    Operate time 8ms
    Release time 2ms
    Coil current 21.8mA
