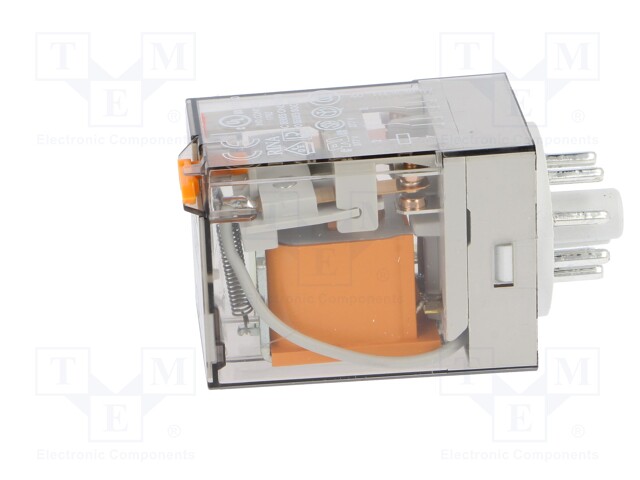

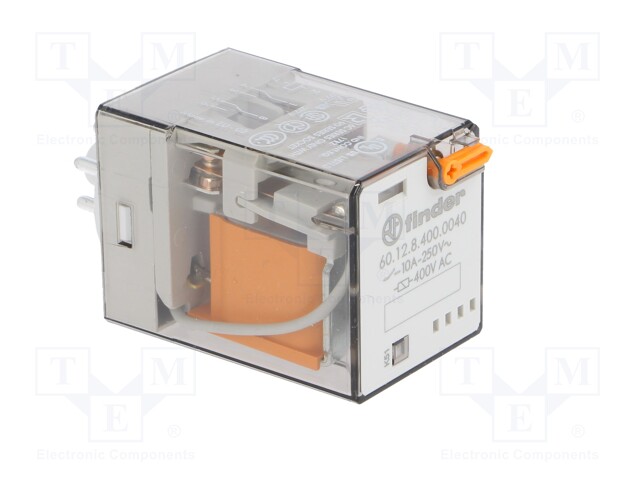

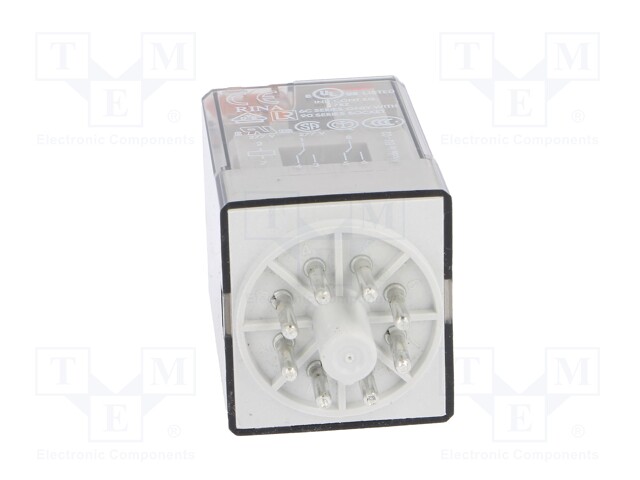

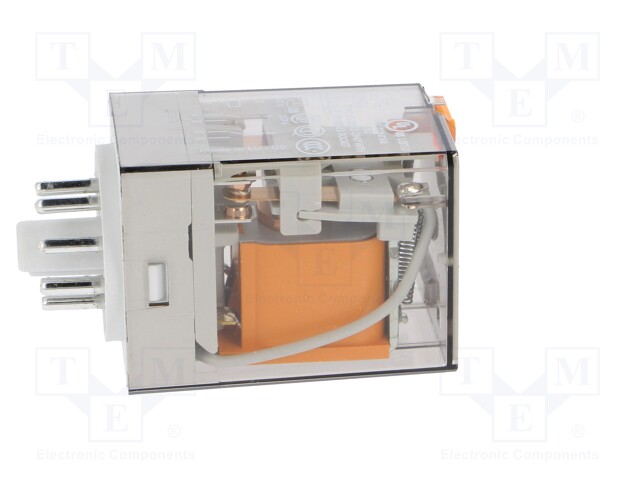

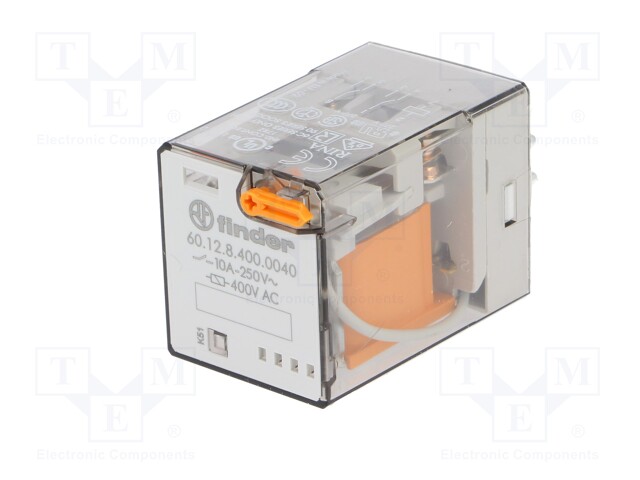

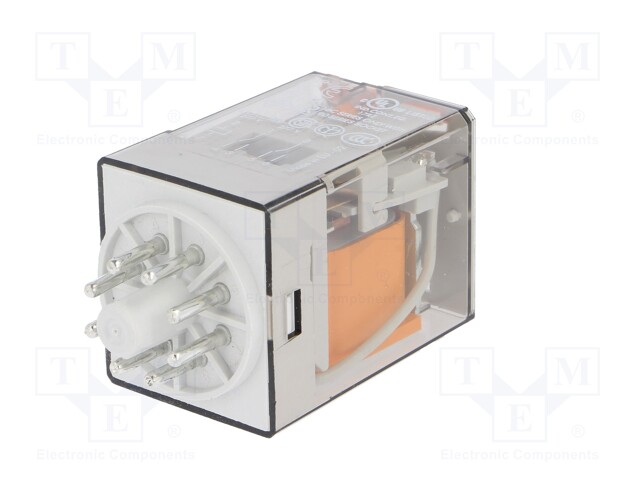

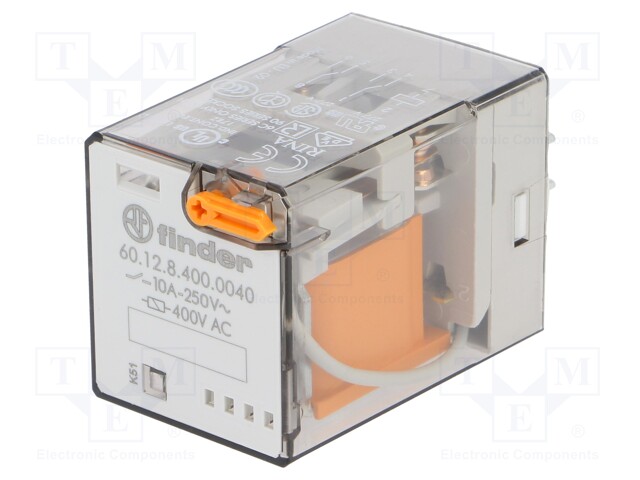

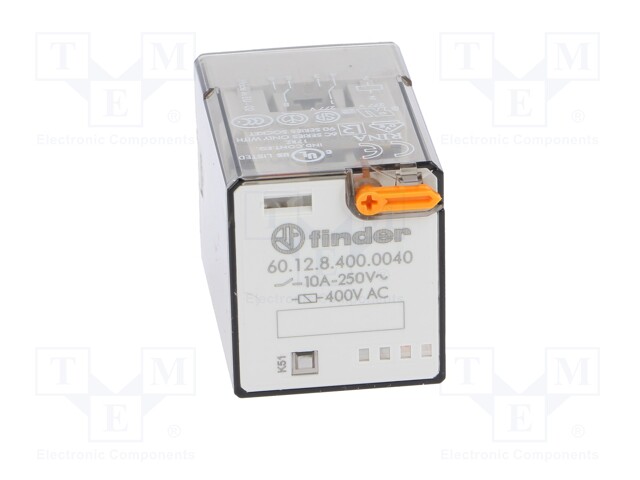

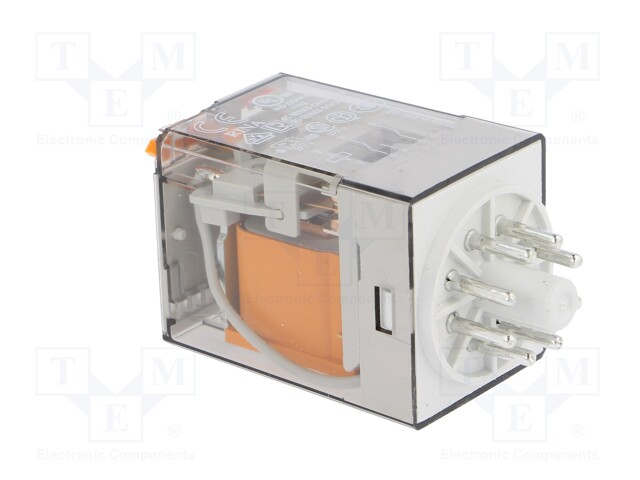

Relay: electromagnetic; DPDT; Ucoil: 400VAC; 10A/250VAC; 10A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 60.12.8.400.0040
    Manufacturer: FINDER
    Manufacturer code: 60.12.8.400.0040
    • Mounting
    • Operating temperature
    • Kind of connector
    • Leads
    • Number of pins
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Electrical connection
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    19.07 € 19.07 € (wo VAT) 19.07 EUR

    19.07 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 400VAC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Kind of connector octal
    Leads stud terminals
    Number of pins 8
    Contact material AgNi
    Body dimensions 36.4x32.5x54.2mm
    Switched voltage max. 220V DC, max. 400V AC
    Electrical connection round socket
    Coil resistance 19.8kΩ
    Contacts configuration DPDT
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.2VA
    Coil current 6mA
