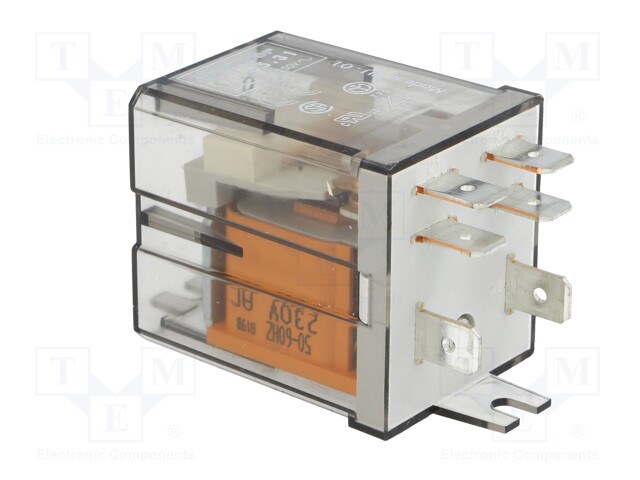

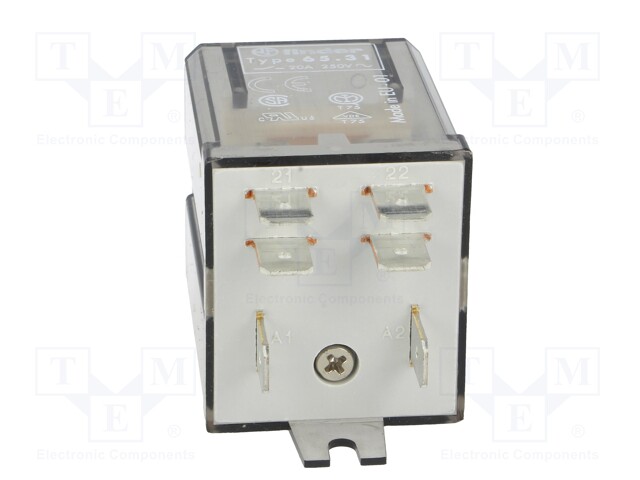

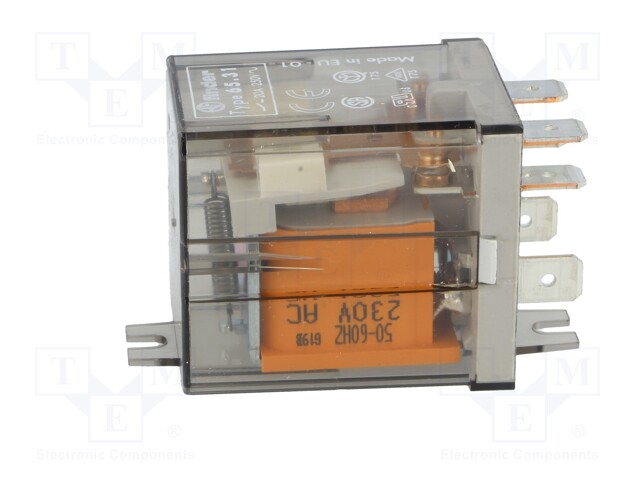

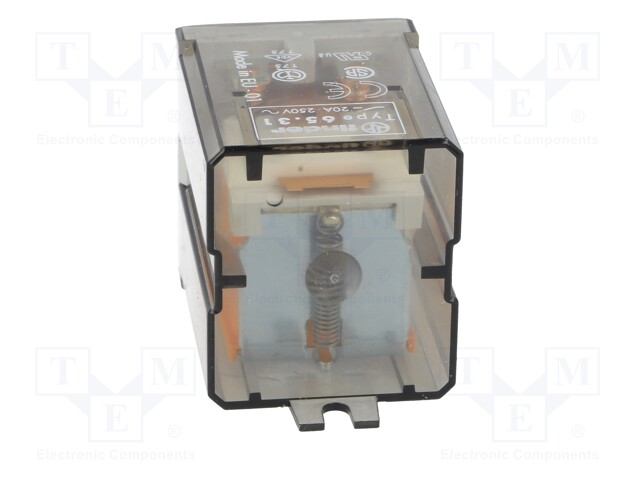

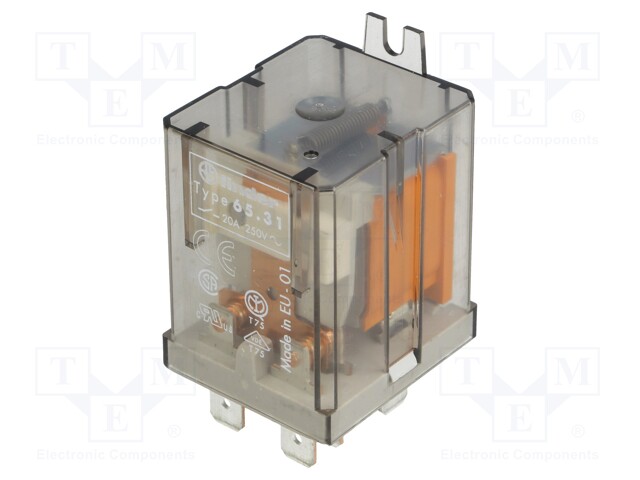

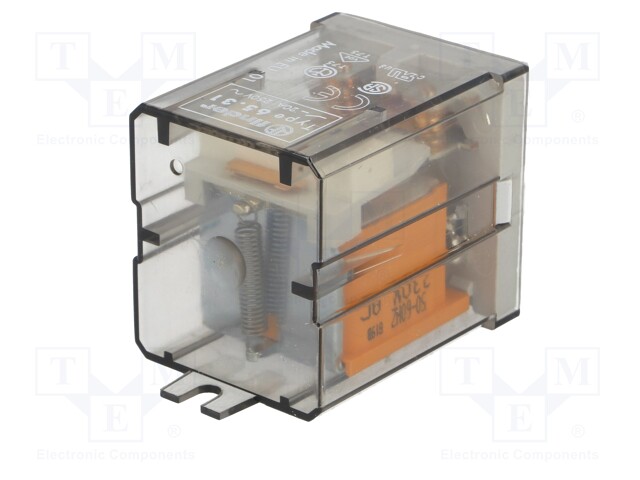

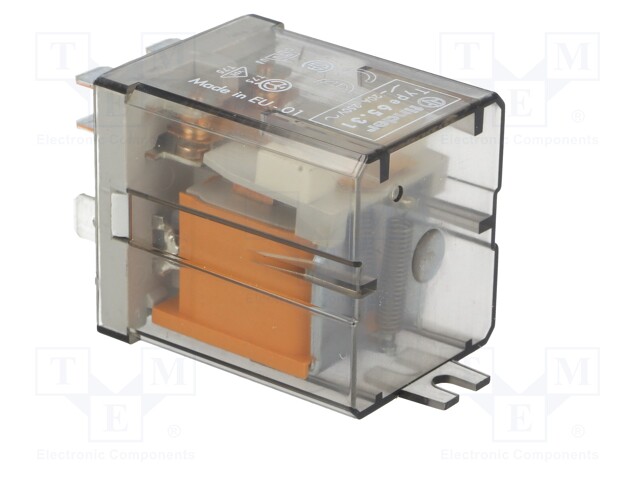

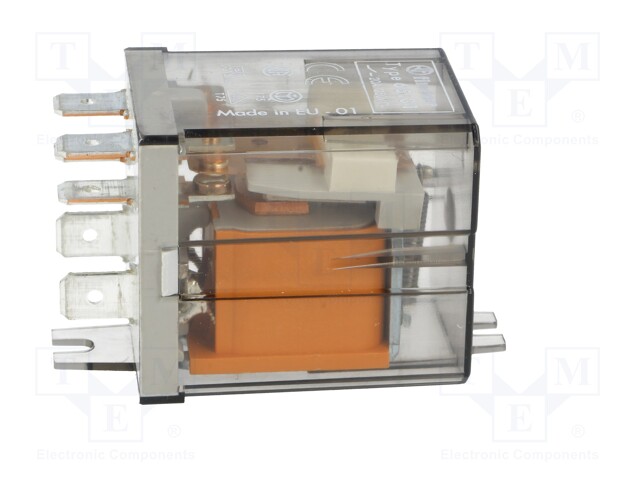

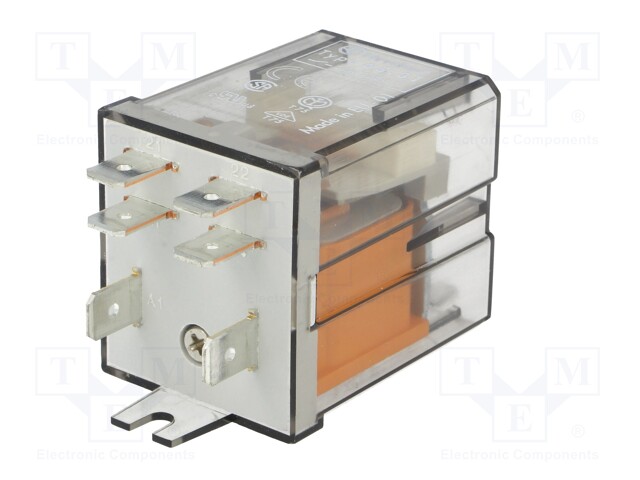

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 230VAC; 7.25kΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 65.31.8.230.0000
    Manufacturer: FINDER
    Manufacturer code: 65.31.8.230.0000
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    19.07 € 19.07 € (wo VAT) 19.07 EUR

    19.07 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 230VAC; 7.25kΩ

    Mounting on panel
    Operating temperature -40...75°C
    Contact material AgCdO
    Body dimensions 43.3x36.6x32.2mm
    Switched voltage max. 220V DC, max. 400V AC
    Coil resistance 7.25kΩ
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 20A / 30V DC
    AC contacts rating @R 20A / 250V AC
    Contact current max. 40A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.2VA
    Coil current 10.5mA
