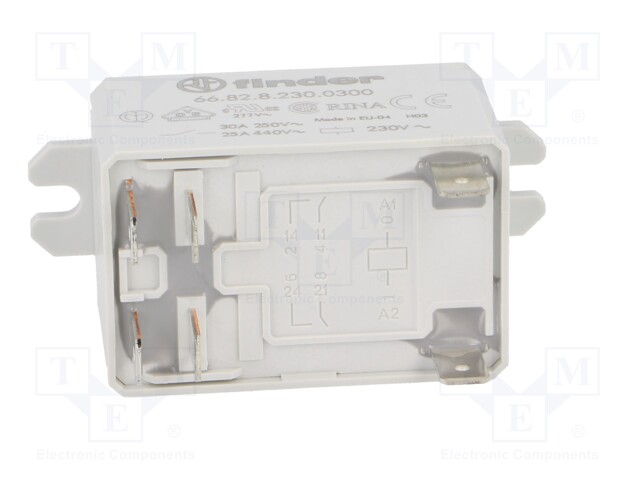

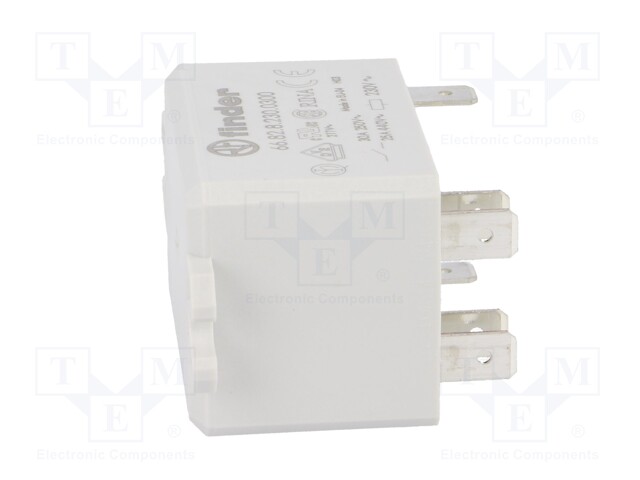

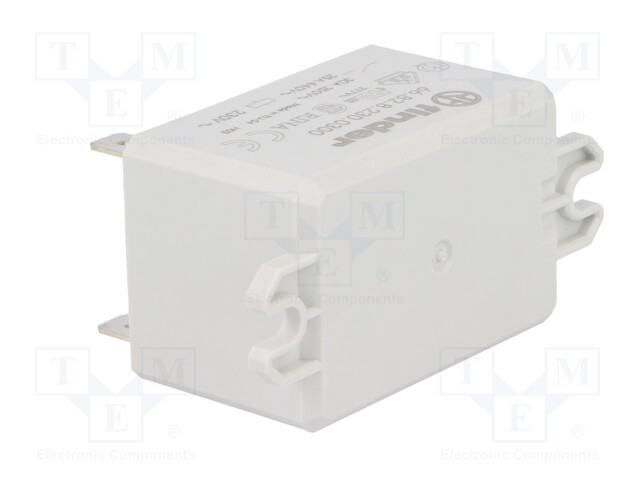

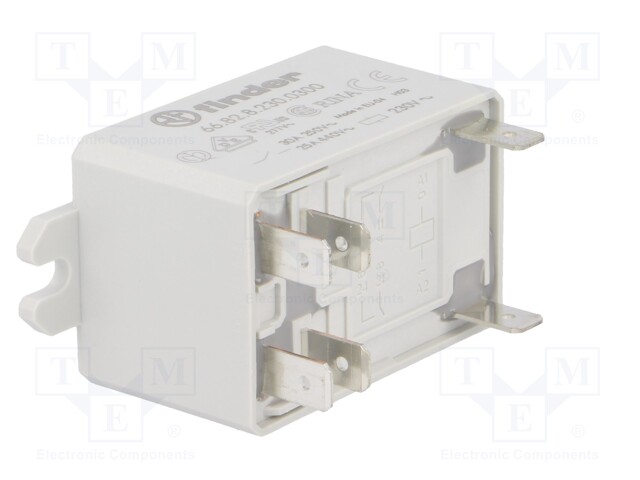

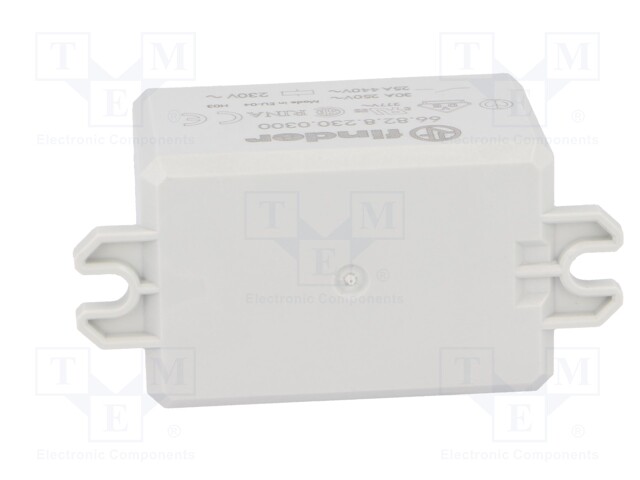

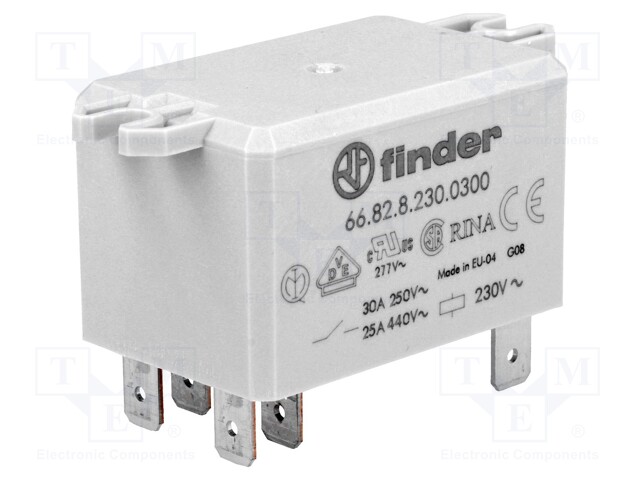

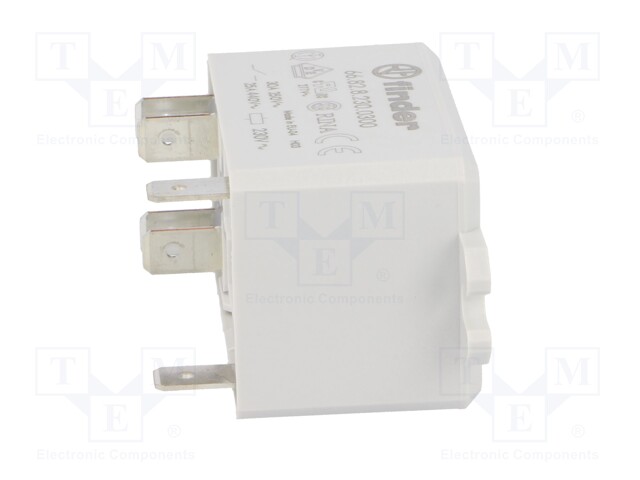

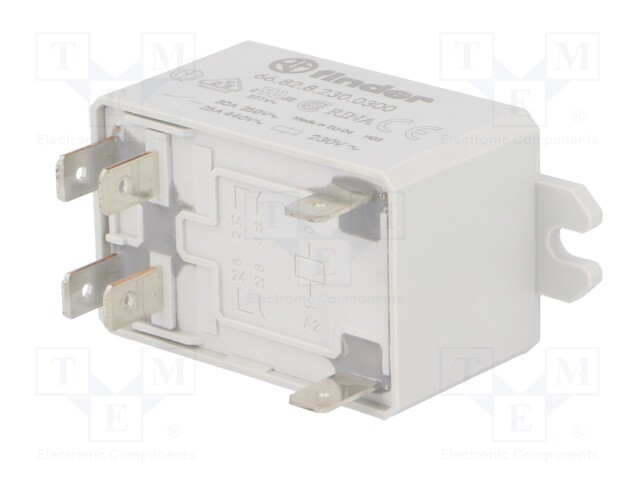

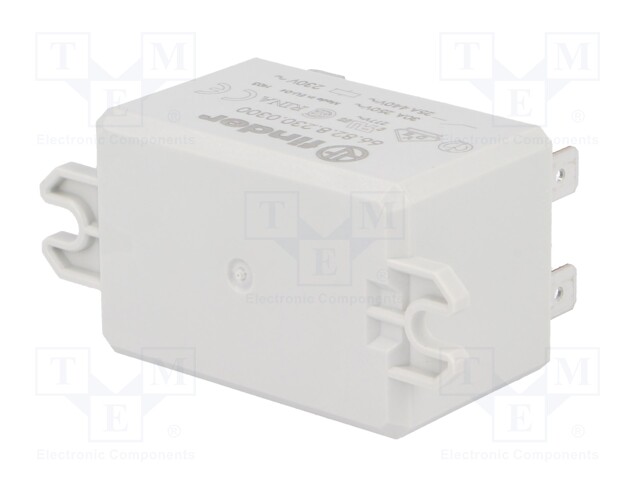

Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; Icontacts max: 30A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 66.82.8.230.0300
    Manufacturer: FINDER
    Manufacturer code: 66.82.8.230.0300
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; Icontacts max: 30A

    Mounting on panel
    Operating temperature -40...70°C
    Leads connectors
    Body dimensions 68.5x33.5x31mm
    Switched voltage max. 220V DC, max. 440V AC
    Coil resistance 4kΩ
    Contacts configuration DPST-NO
    DC contacts rating @R 30A / 30V DC
    AC contacts rating @R 30A / 250V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 3.6W
    Coil current 15.7mA
