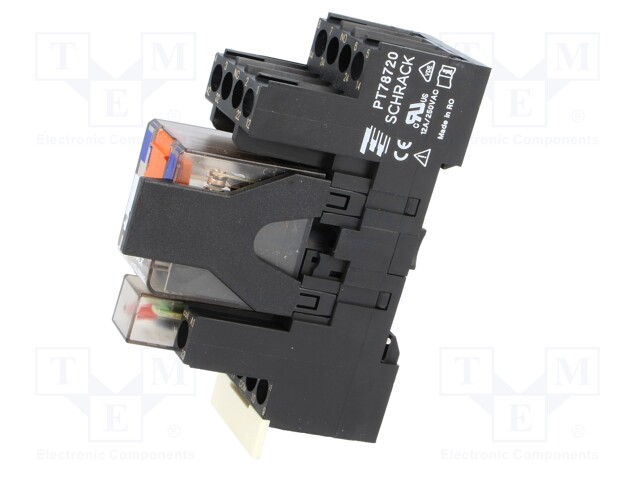

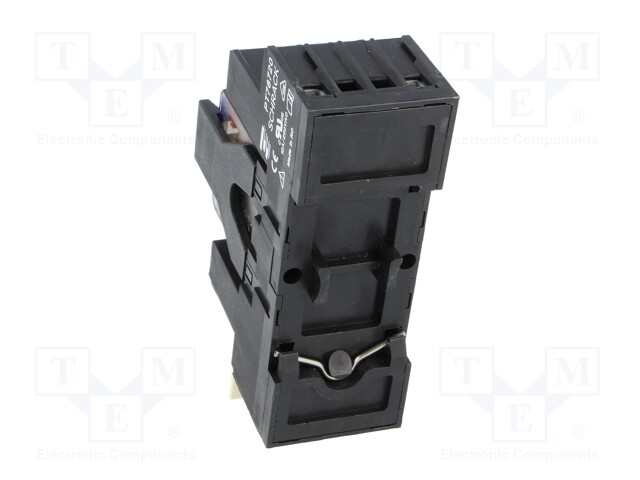

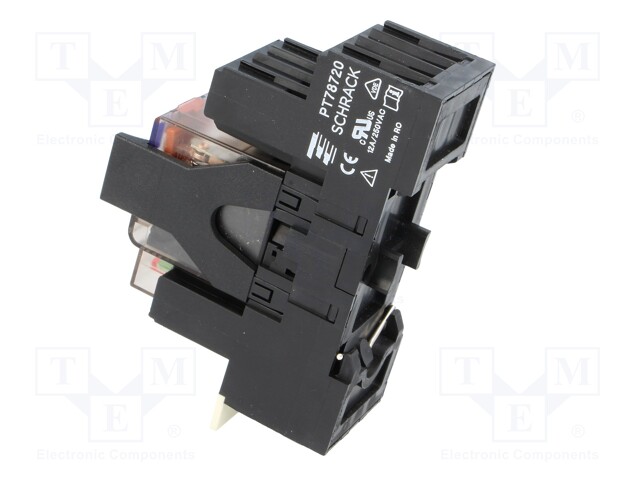

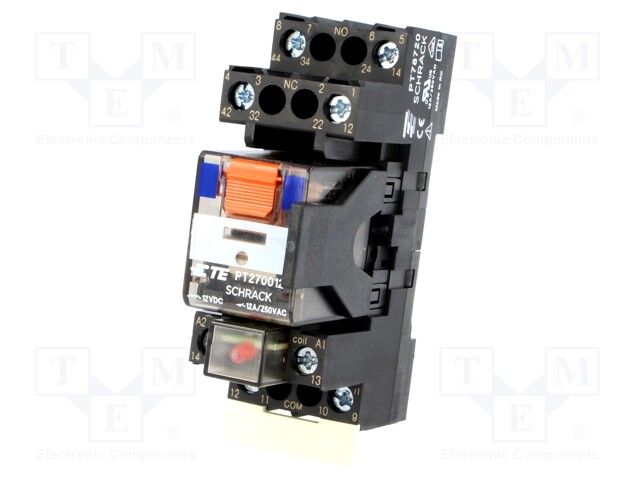

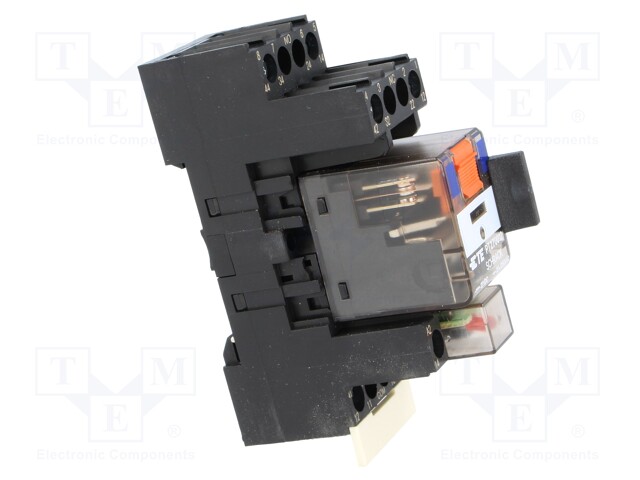

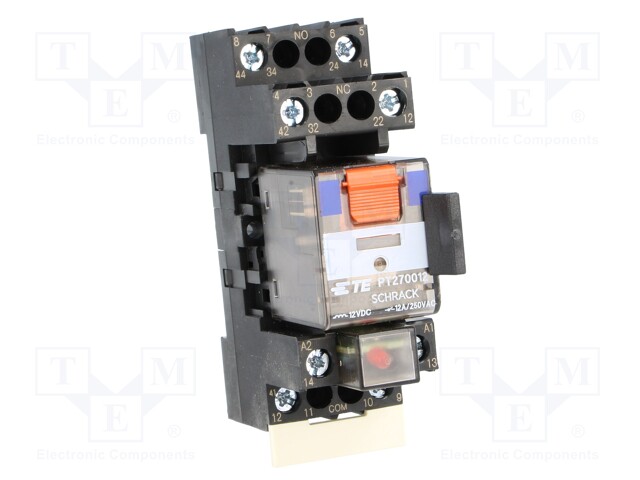

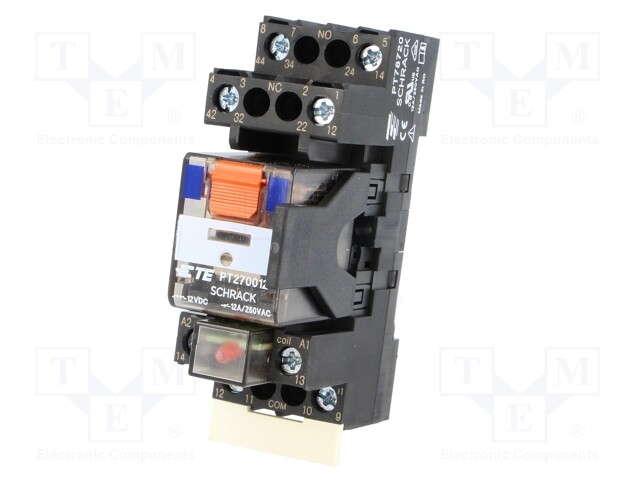

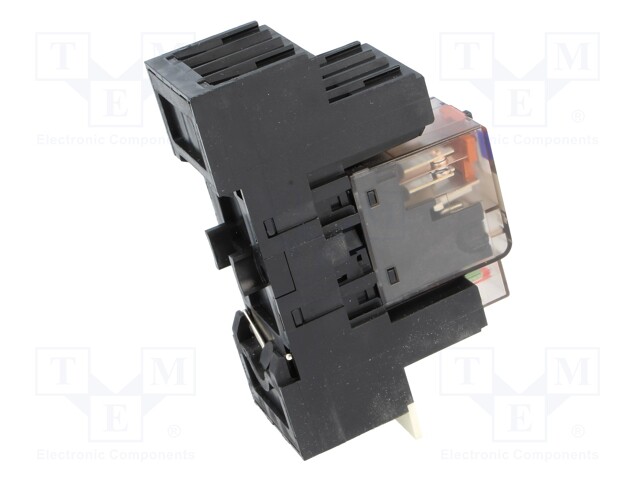

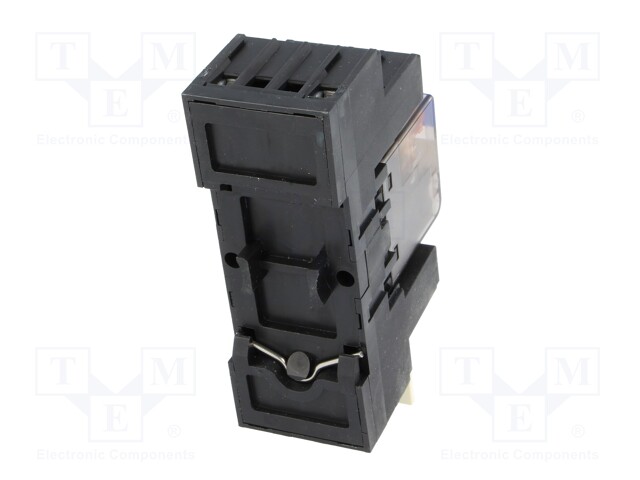

Relay: interface; DPDT; Ucoil: 12VDC; 12A; 12A/250VAC; 12A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 7-1415074-1
    Manufacturer: TE Connectivity
    Manufacturer code: 7-1415074-1
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Coil power consumption

    16.53 € 16.53 € (wo VAT) 16.53 EUR

    16.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; DPDT; Ucoil: 12VDC; 12A; 12A/250VAC; 12A/30VDC

    Mounting for DIN rail mounting
    Max. operating current 12A
    Operating temperature -40...70°C
    Leads screw terminals
    Body dimensions 73.5x58x27mm
    Kit contents description plate PT17040, ejector PT17016, indication module PTML0024, PT270012 relay, socket
    Switched voltage max. 300V DC, max. 400V AC
    Switching capacity 3kVA
    Coil resistance 192Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Coil power consumption 0.75W
