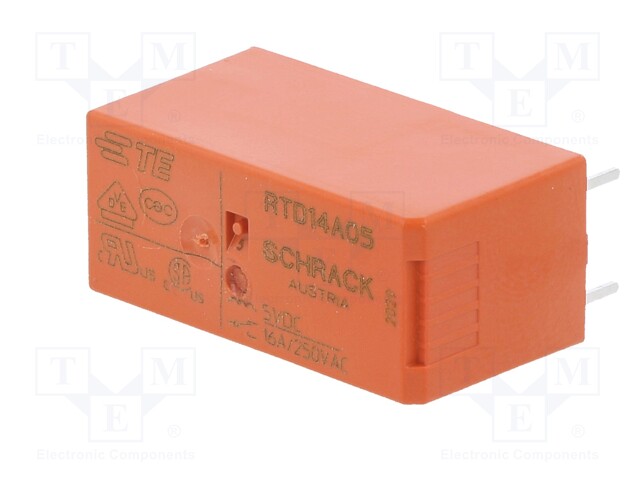

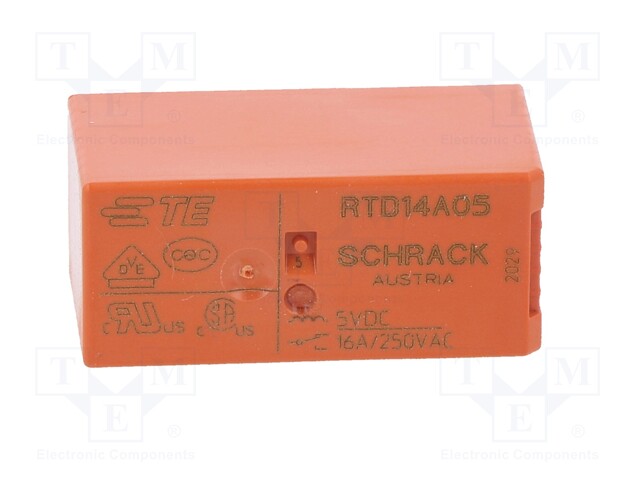

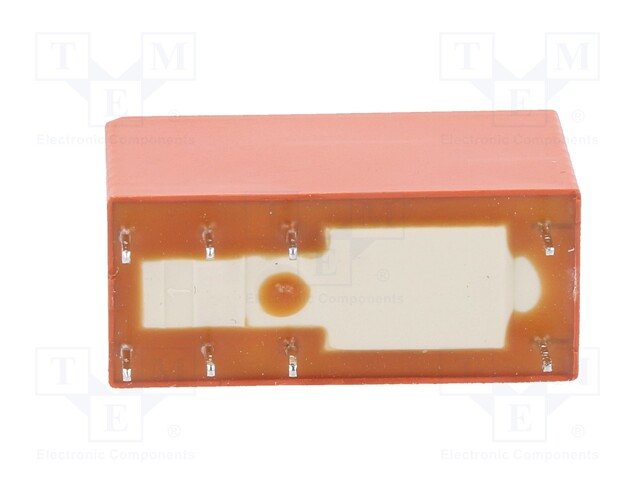

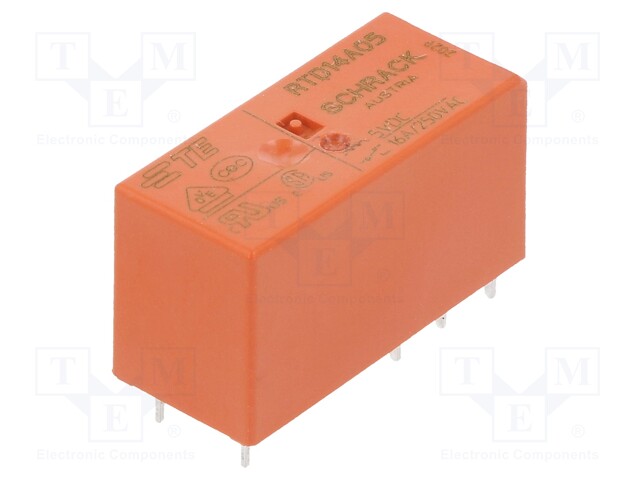

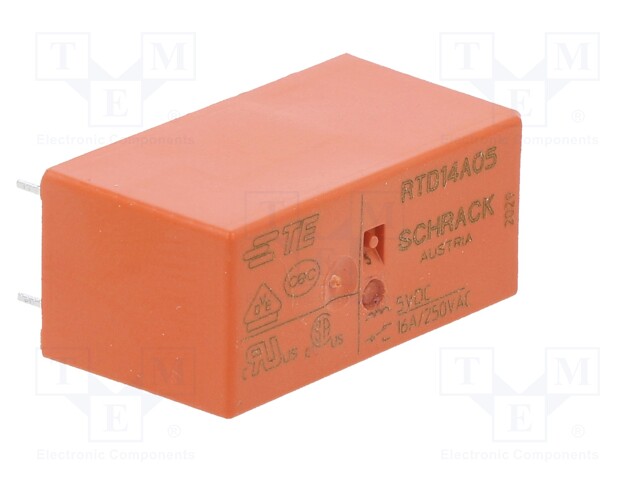

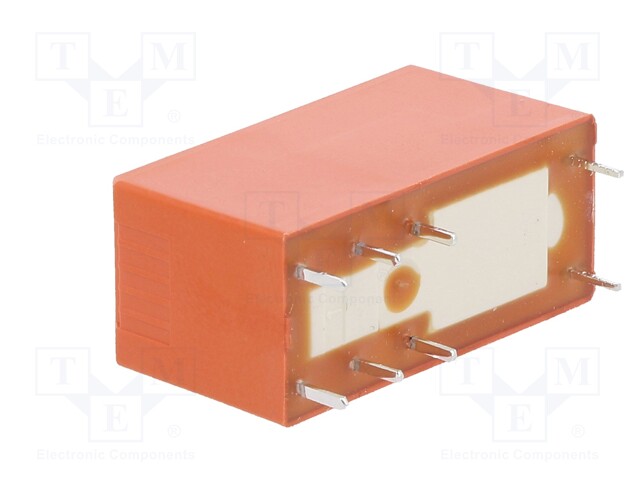

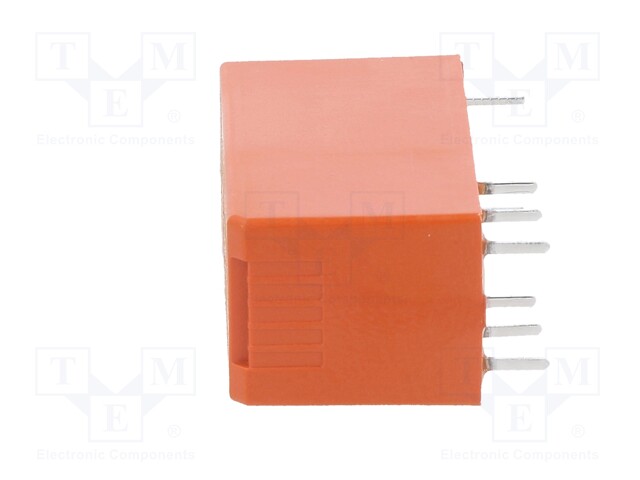

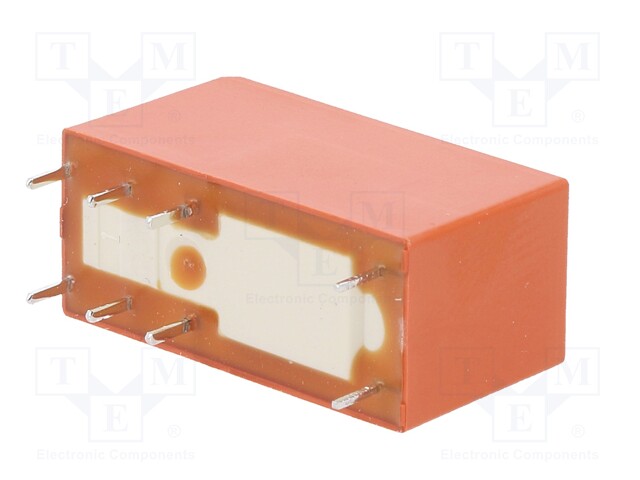

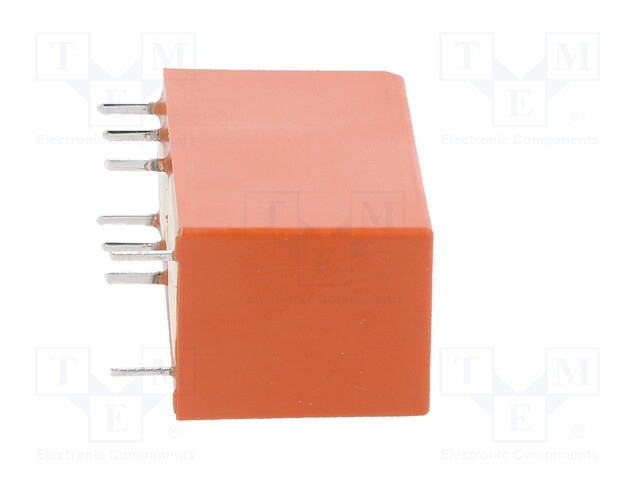

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 16A/250VAC; max.400VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 7-1415539-5
    Manufacturer: TE Connectivity
    Manufacturer code: 7-1415539-5
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    7.59 € 7.59 € (wo VAT) 7.59 EUR

    7.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 16A/250VAC; max.400VAC

    Mounting THT
    Operating temperature -40...85°C
    IP rating IP67
    Number of pins 8
    Contact material AgNi

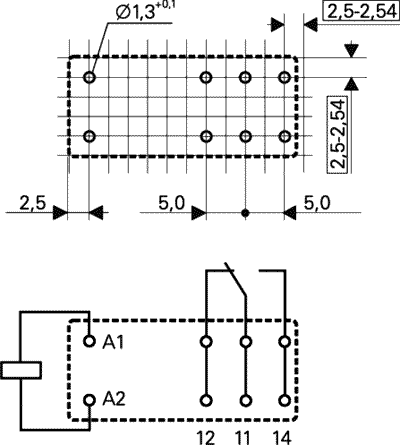

    Terminal pitch 5mm
    Height 15.7mm

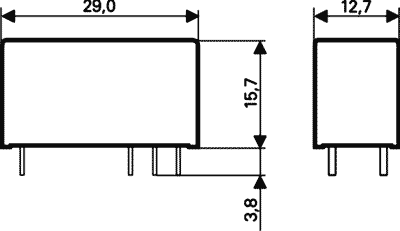

    Body dimensions 29x15.7x12.7mm
    Mechanical durability 30000000cycles
    Switched voltage max. 400V AC
    Max surge current 30A
    Switching capacity 4kVA
    Coil resistance 62Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 403mW
