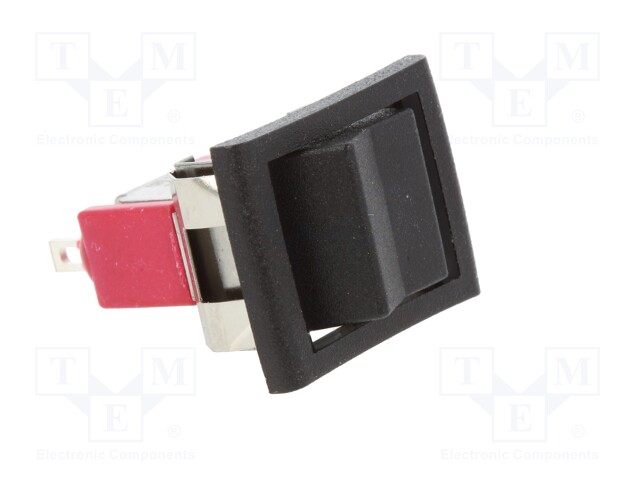

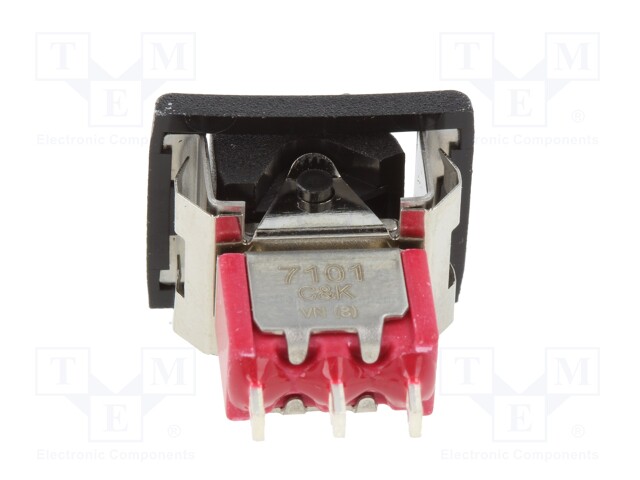

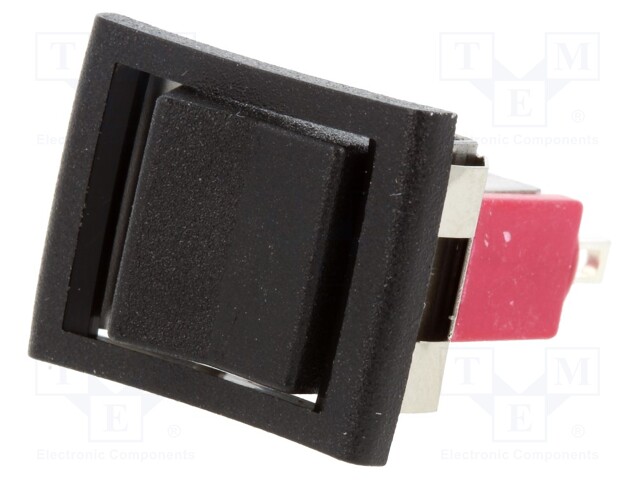

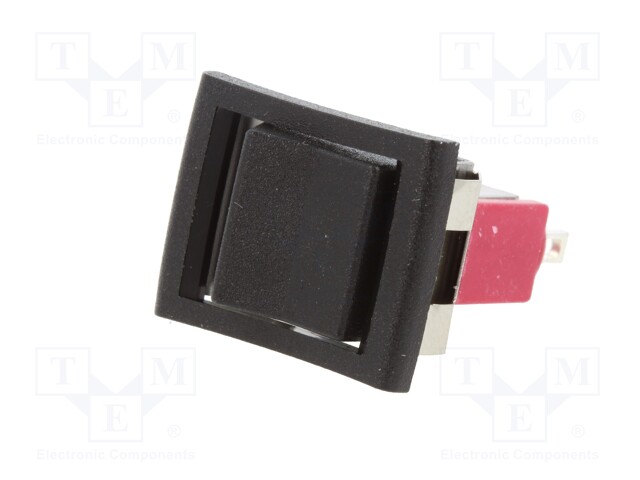

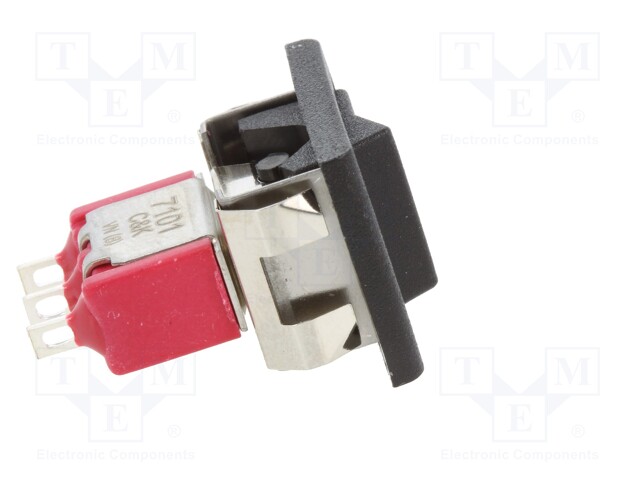

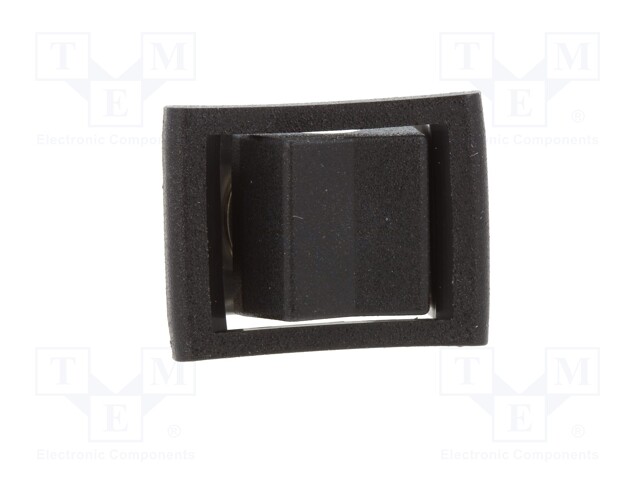

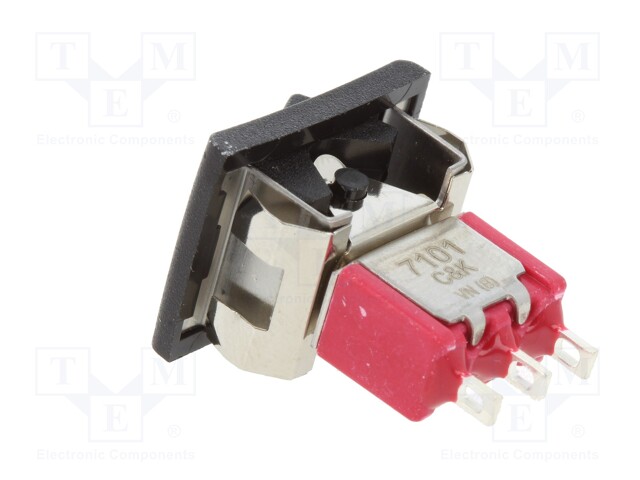

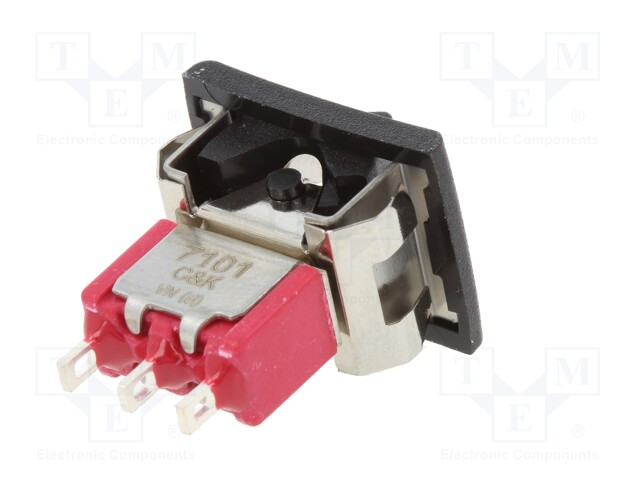

ROCKER; SPDT; Pos: 2; ON-ON; 2A/250VAC; 5A/28VDC; Rcont max: 10mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 7101J51ZQE22
    Manufacturer: C&K
    Manufacturer code: 7101J51ZQE22
    • Mounting
    • Operating temperature
    • Type of switch
    • Colour
    • Contact plating
    • Number of positions
    • Leads
    • Series
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Number of terminals
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number

    11.88 € 11.88 € (wo VAT) 11.88 EUR

    11.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; SPDT; Pos: 2; ON-ON; 2A/250VAC; 5A/28VDC; Rcont max: 10mΩ

    Mounting on panel
    Operating temperature -30...85°C
    Type of switch ROCKER
    Colour black
    Contact plating silver plated
    Number of positions 2
    Leads for soldering
    Series 7000
    Contact material copper
    Max. contact resistance: 10mΩ
    Terminal pitch 4.7mm
    Mounting hole diameter 15.24x12.7mm
    Body colour black
    Body dimensions 12.7x6.86x9.4mm
    Number of terminals 3
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 100000cycles
    Contacts configuration SPDT
    DC contacts rating @R 5A / 28V DC
    AC contacts rating @R 2A / 250V AC
    Switching method ON-ON
    Stable positions number 2
