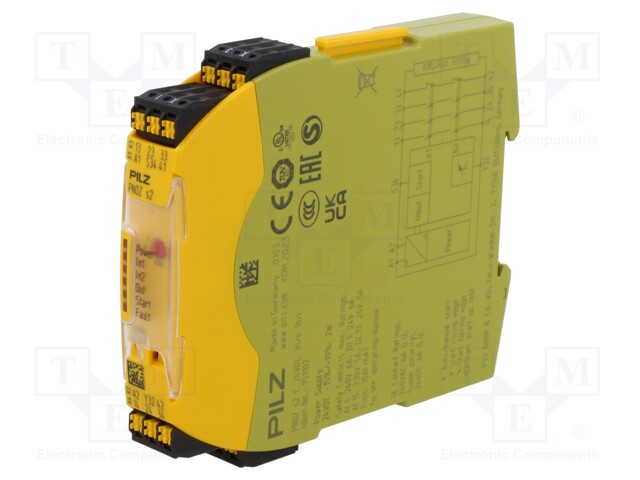

Module: safety relay; Series: PNOZ s2 C; IN: 2; OUT: 5; Mounting: DIN

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 751102
    Manufacturer: PILZ
    Manufacturer code: 751102
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Series
    • Application
    • Application
    • Body dimensions
    • Number of inputs
    • Number of outputs
    • Electrical connection
    • Signal output
    • Safety category
    • Input 1 properties
    • Safety outputs
    • Auxiliary outputs

    184.83 € 184.83 € (wo VAT) 184.83 EUR

    184.83 €

    This combination does not exist.

    Add to Cart

    Specification for Module: safety relay; Series: PNOZ s2 C; IN: 2; OUT: 5; Mounting: DIN

    Mounting for DIN rail mounting
    Supply voltage 24V DC
    Operating temperature -10...55°C
    IP rating IP40
    Series PNOZ s2 C
    Application emergency stop, safety gates and light beam devices
    Body dimensions 100x17.5x120mm
    Number of inputs 2
    Number of outputs 5
    Electrical connection spring-loaded terminals
    Signal output transistor 24V DC
    Safety category 2
    Input 1 properties 1 channel
    Safety outputs 3x NO
    Auxiliary outputs 1x NC
