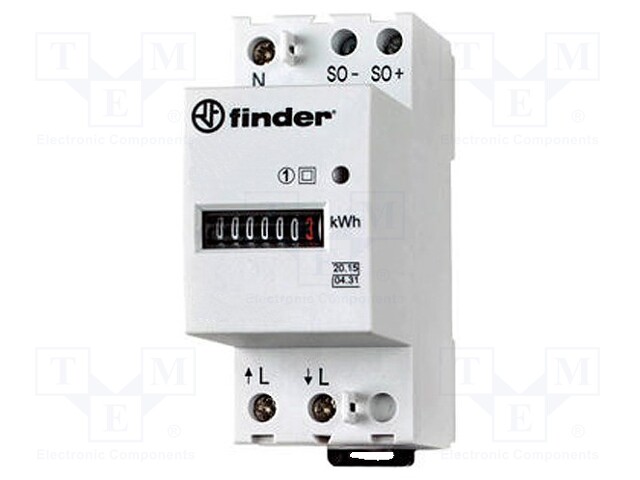

Controller; IP50; OC; DIN; -10÷55°C; 0.5W; Range: 999999,9kWh

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 7E.16.8.230.0000
    Manufacturer: FINDER
    Manufacturer code: 7E.16.8.230.0000
    • Mounting
    • Operating temperature
    • IP rating
    • Operating current
    • Current rating
    • Power consumption
    • Kind of display used
    • Electrical connection
    • Counting range
    • Controlled parameter
    • Kind of output 1
    • Type of counted signal

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Controller; IP50; OC; DIN; -10÷55°C; 0.5W; Range: 999999,9kWh

    Mounting for DIN rail mounting
    Operating temperature -10...55°C
    IP rating IP50
    Operating current 0.5...65A
    Current rating 10A
    Power consumption 500mW
    Kind of display used mechanical indicator
    Electrical connection screw terminals
    Counting range 999999,9kWh
    Controlled parameter 230V AC 50/60Hz
    Kind of output 1 OC
    Type of counted signal electric power
