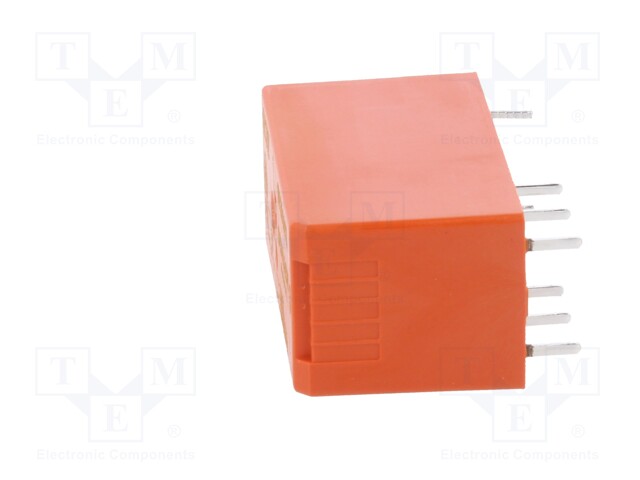

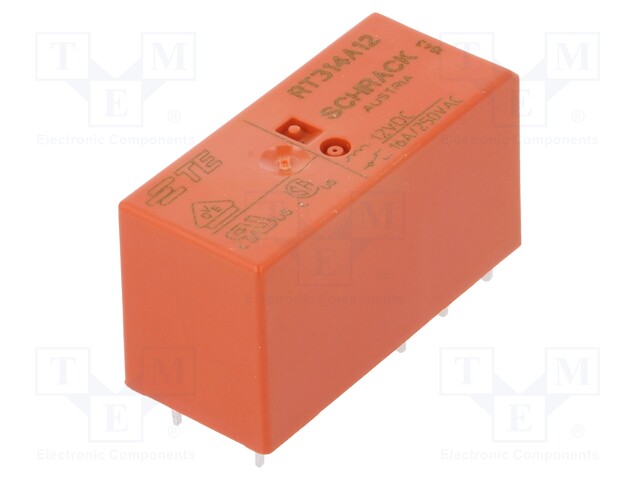

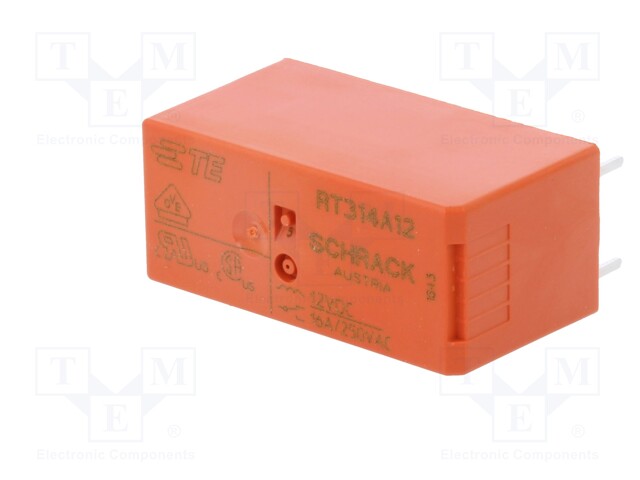

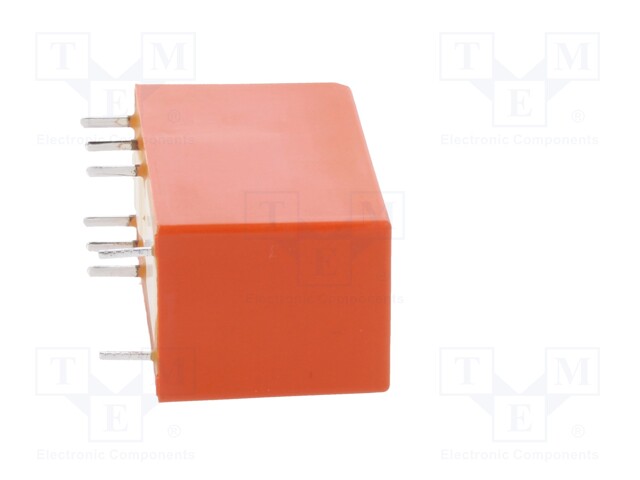

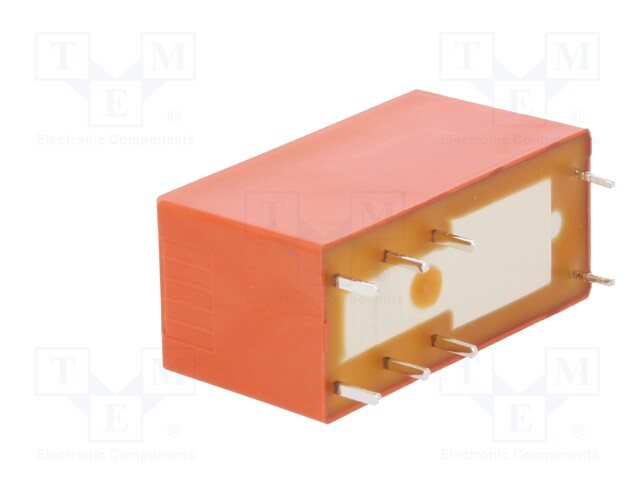

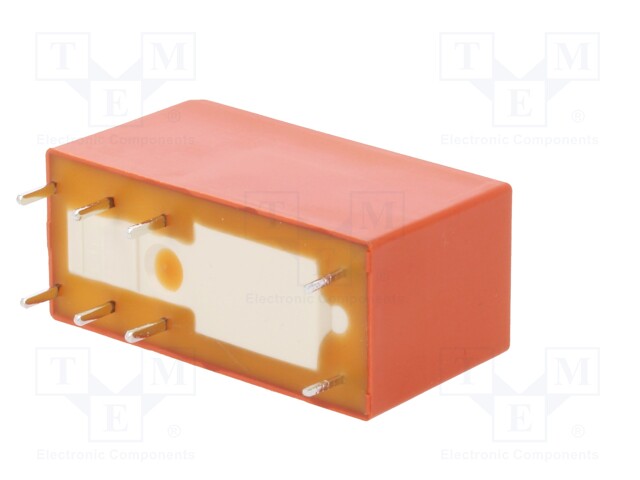

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 16A/250VAC; 16A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 8-1393239-0
    Manufacturer: TE Connectivity
    Manufacturer code: 8-1393239-0
    • Mounting
    • Operating temperature
    • IP rating
    • Number of pins
    • Contact material
    • Terminal pitch
    • Height
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption

    8.37 € 8.37 € (wo VAT) 8.370000000000001 EUR

    8.37 €

    This combination does not exist.

    Add to Cart

    Product downloads

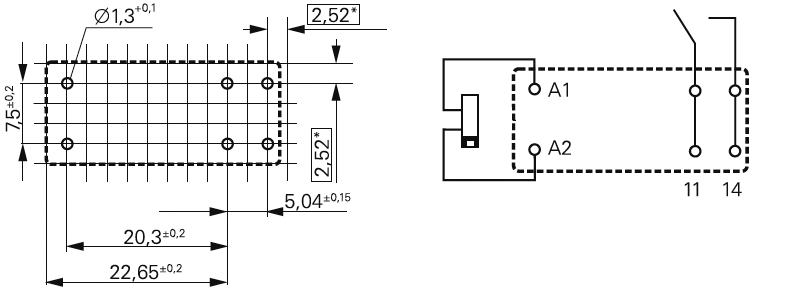

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 16A/250VAC; 16A/24VDC

    Mounting THT
    Operating temperature -40...85°C
    IP rating IP40
    Number of pins 8
    Contact material AgNi 90/10
    Terminal pitch 5mm
    Height 15.7mm
    Body dimensions 29x15.7x12.7mm
    Mechanical durability 5000000cycles
    Switched voltage max. 300V DC, max. 400V AC
    Max surge current 30A
    Switching capacity 4kVA
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant bistable, miniature
    Type of relay electromagnetic
    Coil power consumption 400mW
