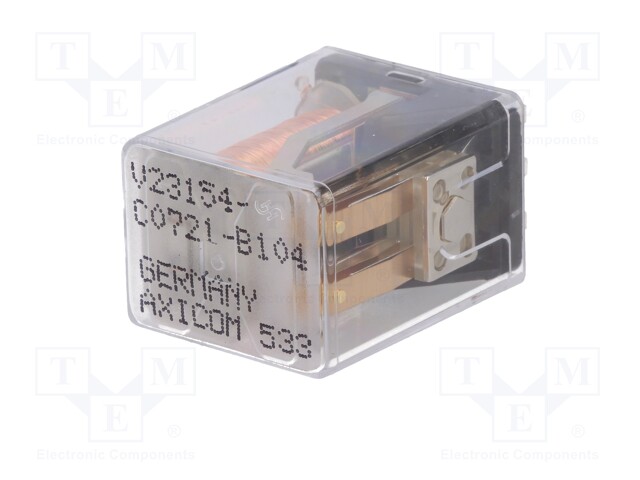

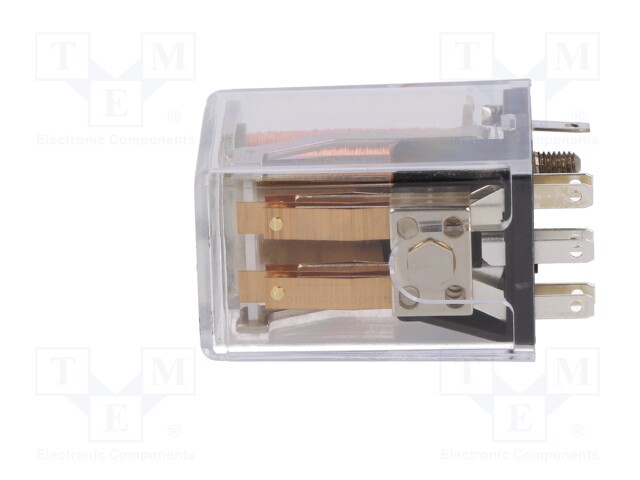

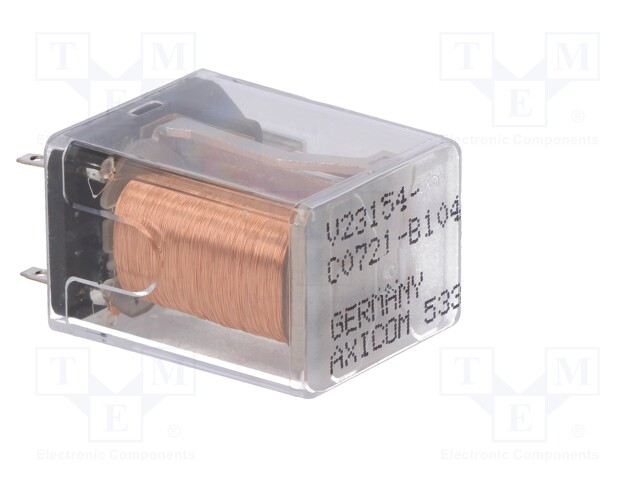

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; miniature; 890Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 8-1393806-6
    Manufacturer: TE Connectivity
    Manufacturer code: 8-1393806-6
    • Mounting
    • Operating temperature
    • Contact plating
    • Leads
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    83.86 € 83.86 € (wo VAT) 83.86 EUR

    83.86 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 2A; miniature; 890Ω

    Mounting socket
    Operating temperature -40...70°C
    Contact plating gold-plated
    Leads for soldering
    Contact material silver alloy

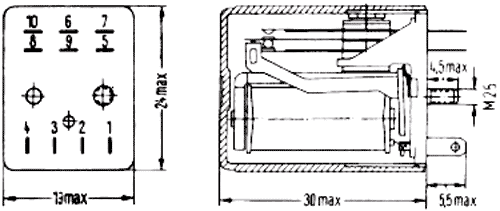

    Body dimensions 24x19x30mm
    Coil resistance 890Ω
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    AC contacts rating @R 5A / 250V AC
    Contact current max. 2A
    Relay variant miniature
    Coil voltage max. 40V DC
    Type of relay electromagnetic
    Coil voltage min. 11V DC
    Coil power consumption 647mW
