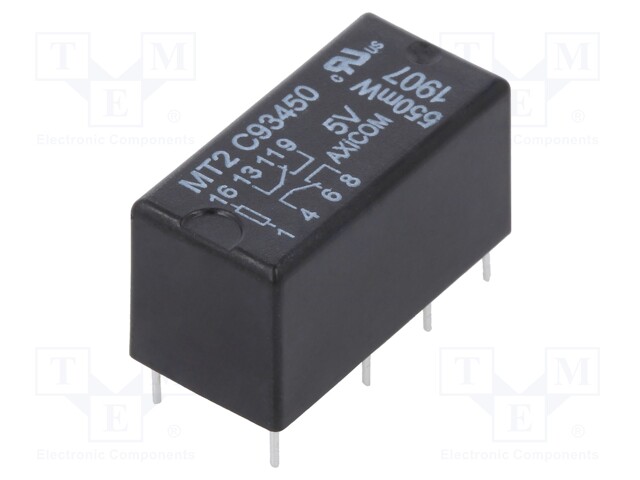

Relay: electromagnetic; DPDT; Ucoil: 5VDC; max.250VAC; max.220VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 8-1462000-5
    Manufacturer: TE Connectivity
    Manufacturer code: 8-1462000-5
    • Mounting
    • Operating temperature
    • IP rating
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Switched current
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    5.45 € 5.45 € (wo VAT) 5.45 EUR

    5.45 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; max.250VAC; max.220VDC

    Mounting PCB
    Operating temperature -55...85°C
    IP rating IP67
    Body dimensions 20.2x10x11mm
    Mechanical durability 100000000cycles
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 45Ω
    Rated coil voltage 5V DC
    Contacts configuration DPDT
    Contact resistance 70mΩ
    Switched current 2A
    Contact current max. 2A
    Relay variant signal
    Coil voltage max. 7V DC
    Type of relay electromagnetic
    Coil voltage min. 3.3V DC
    Coil power consumption 550mW
