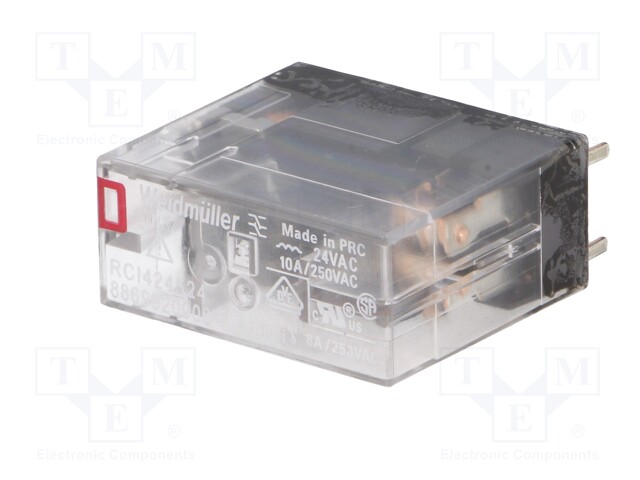

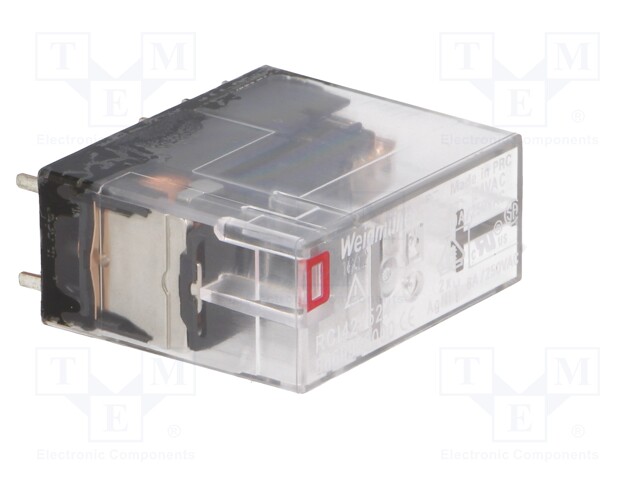

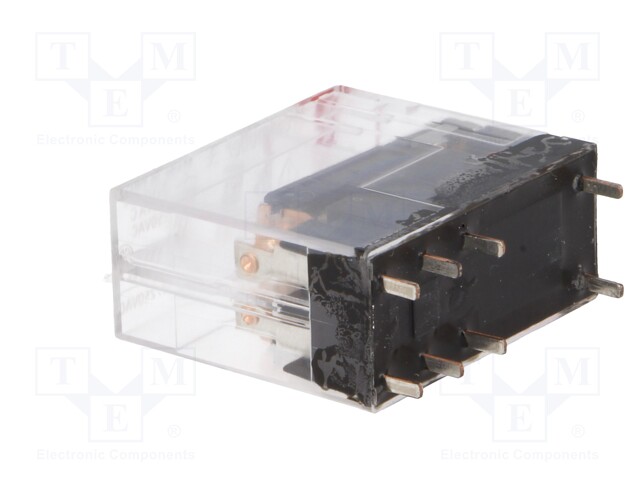

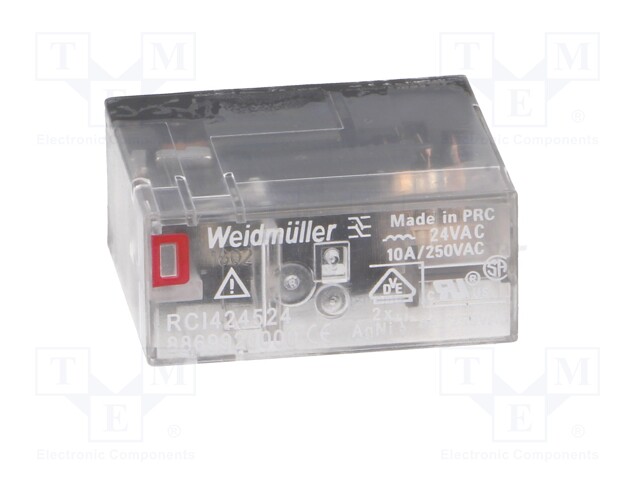

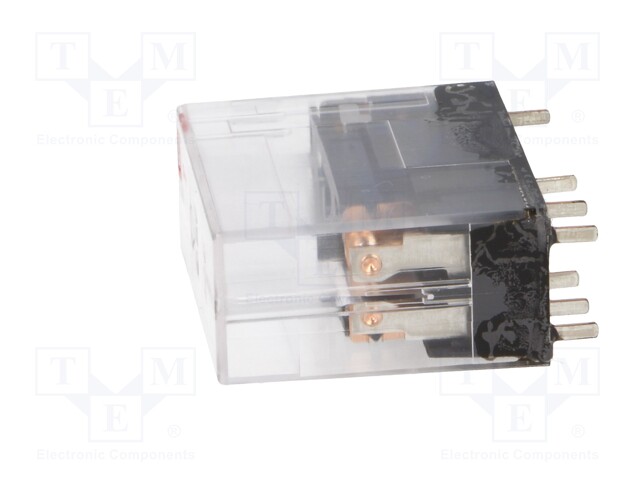

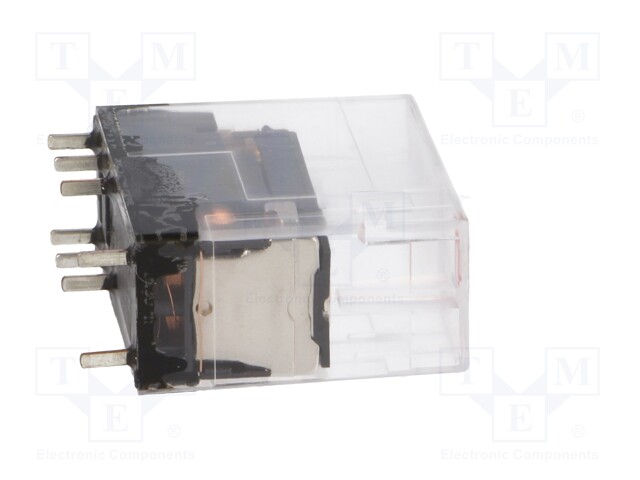

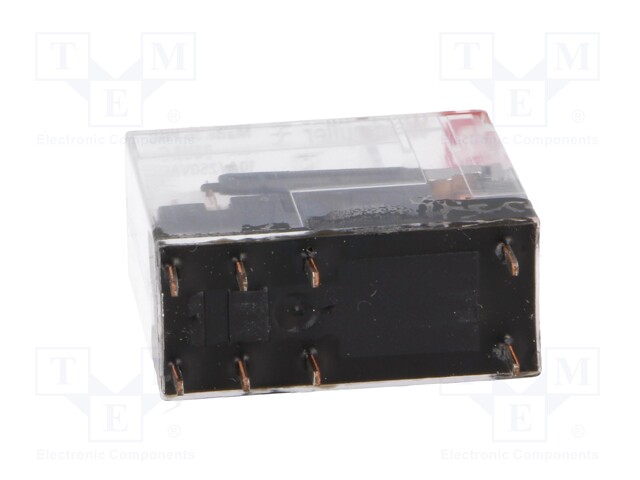

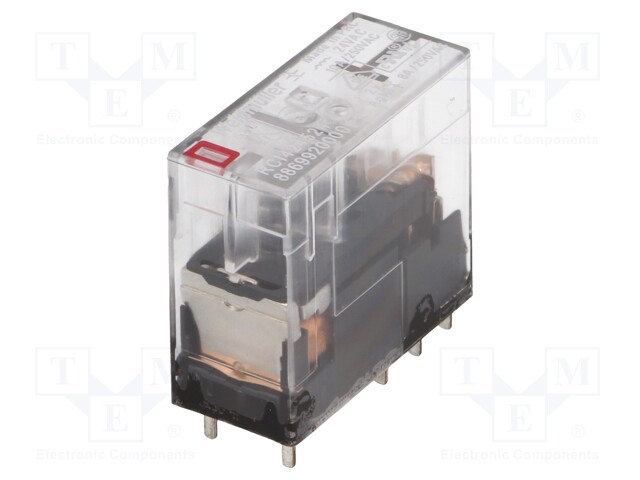

Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/240VAC; 8A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 8869920000
    Manufacturer: WEIDMÜLLER
    Manufacturer code: 8869920000
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    12.86 € 12.86 € (wo VAT) 12.86 EUR

    12.86 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/240VAC; 8A/24VDC

    Mounting socket
    Operating temperature -40...70°C
    Terminal pitch 5mm
    Body dimensions 29x13.7x26.7mm
    Switched voltage max. 220V DC, max. 400V AC
    Switching capacity 2kVA
    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 50mΩ
    AC contacts rating @R 8A / 240V AC
    Contact current max. 8A
    Relay variant industrial, miniature
    Type of relay electromagnetic
    Coil power consumption 0.75VA
    Operate time 10ms
    Release time 6ms
    Coil current 31.6mA
