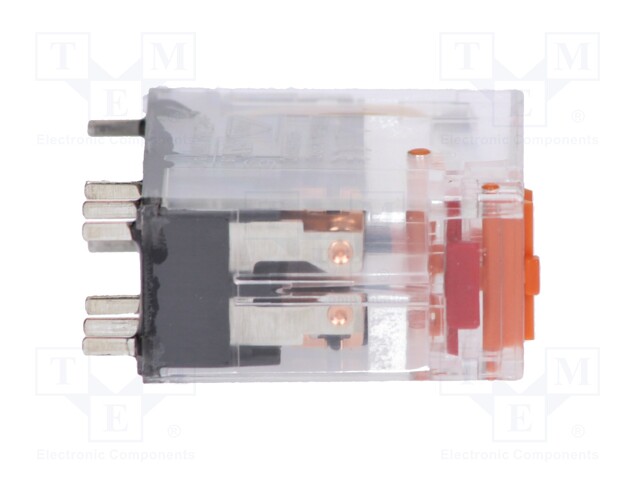

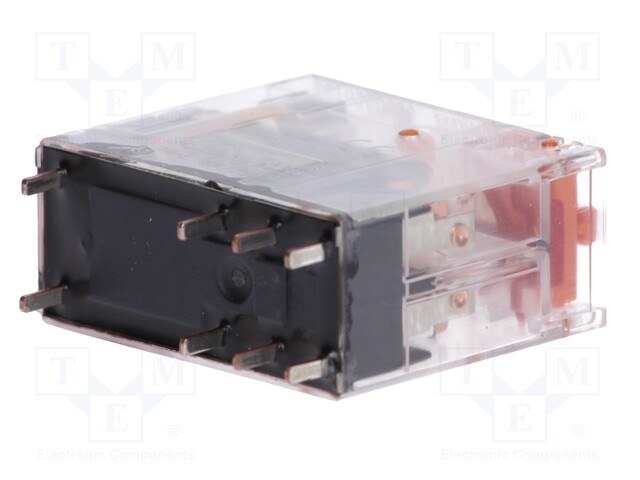

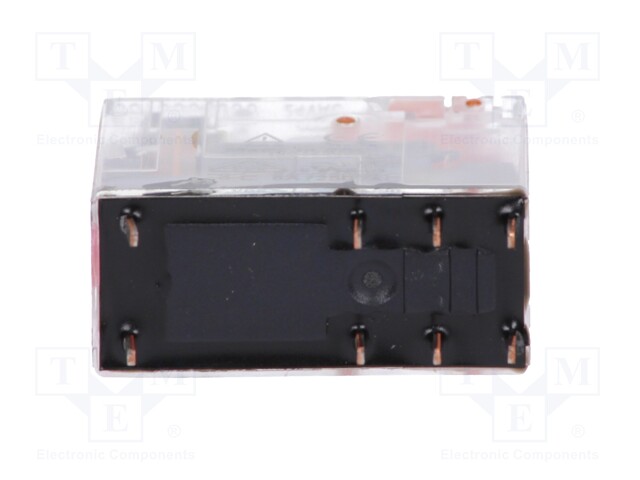

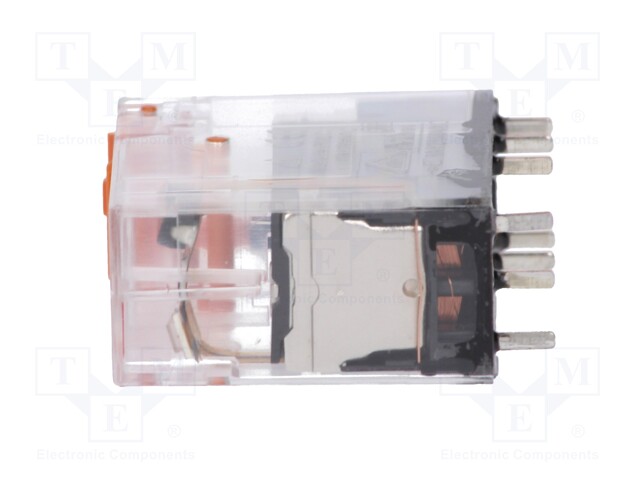

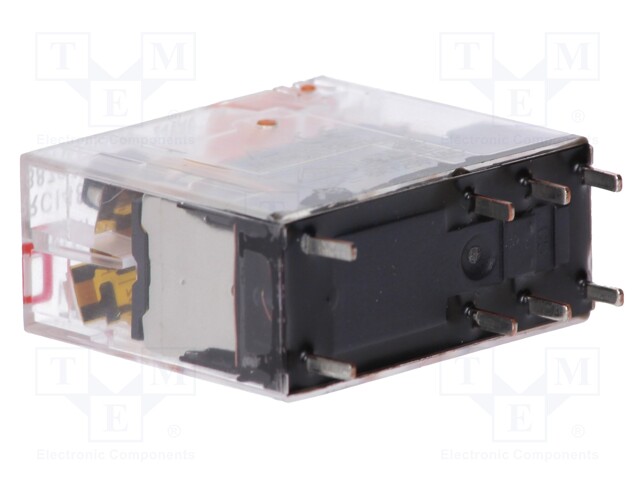

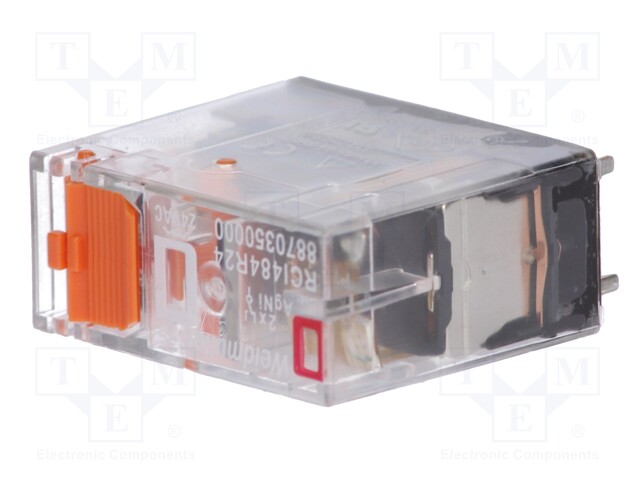

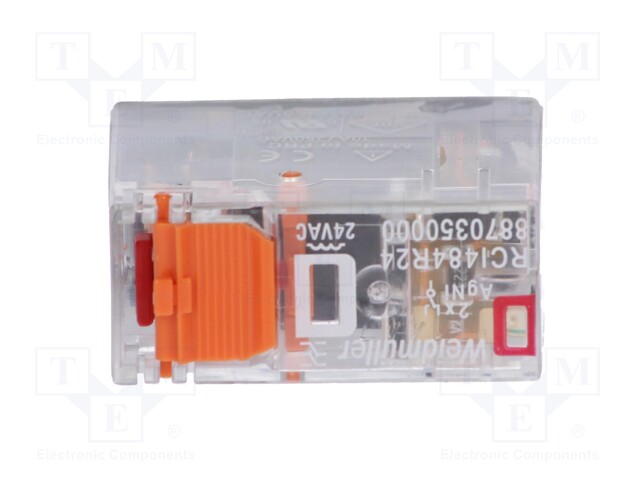

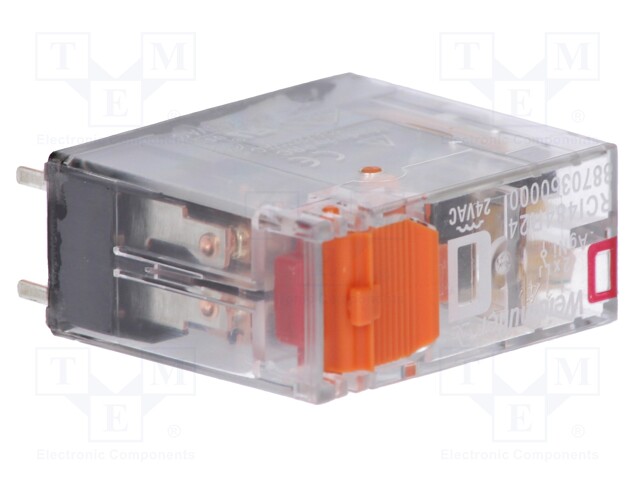

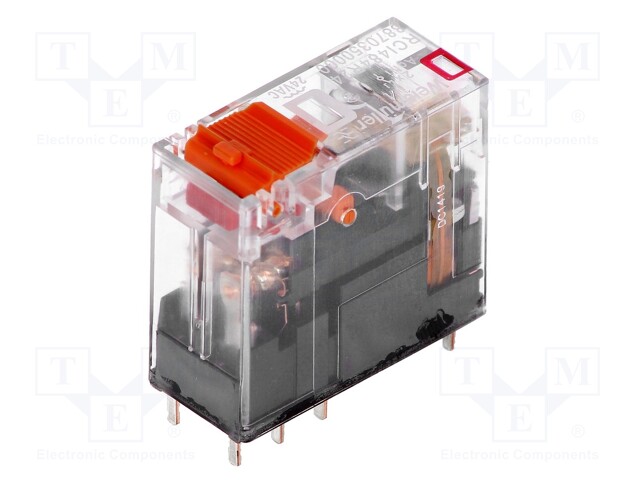

Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/240VAC; max.400VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 8870350000
    Manufacturer: WEIDMÜLLER
    Manufacturer code: 8870350000
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    22.40 € 22.40 € (wo VAT) 22.400000000000002 EUR

    22.40 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VAC; 8A/240VAC; max.400VAC

    Mounting socket
    Operating temperature -40...70°C
    Contact material AgNi 90/10
    Terminal pitch 5mm
    Switched voltage max. 400V AC
    Coil resistance 350Ω
    Contacts configuration DPDT
    AC contacts rating @R 8A / 240V AC
    Contact current max. 15A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 10ms
    Release time 6ms
    Coil current 31.6mA
