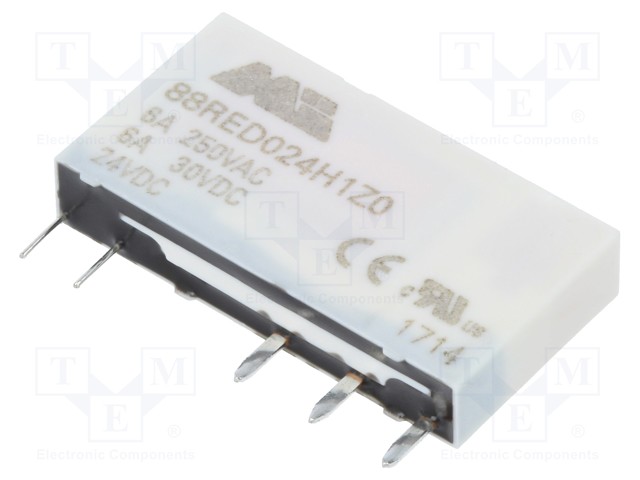

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC; 6A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 88RED024H1Z0
    Manufacturer: MORSETTITALIA
    Manufacturer code: 88RED024H1Z0
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption

    5.81 € 5.81 € (wo VAT) 5.8100000000000005 EUR

    5.81 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 6A/250VAC; 6A/30VDC; 6A

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

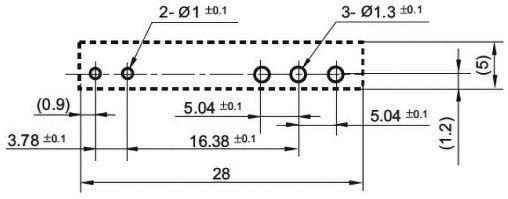

    Terminal pitch 5.04mm
    Body dimensions 5x28x15mm
    Switched voltage max. 30V DC, max. 250V AC
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant interface
    Type of relay electromagnetic
    Coil power consumption 170mW
