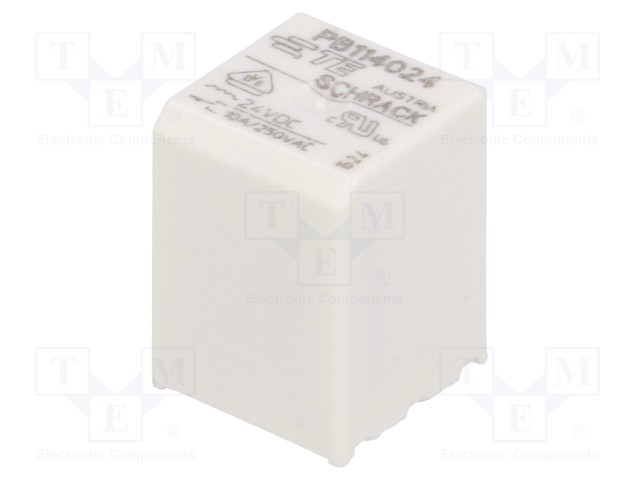

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A; 1.6kΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 9-1415029-1
    Manufacturer: TE Connectivity
    Manufacturer code: 9-1415029-1
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    1.59 € 1.59 € (wo VAT) 1.59 EUR

    1.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A; 1.6kΩ

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi 90/10
    Body dimensions 20x15x15mm
    Mechanical durability 30000cycles
    Switched voltage max. 400V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 360mW
    Operate time 10ms
    Release time 20ms
