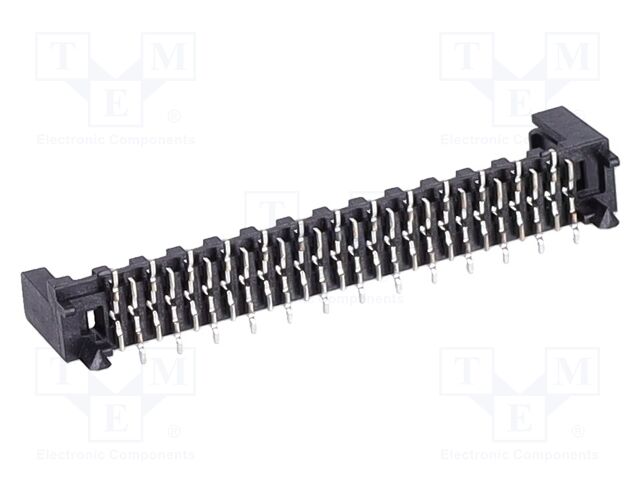

Wire-board

    Multiples: 1.0
    Minimum quantity: 58.0
    Product code: 90816-0026
    Manufacturer: MOLEX
    Manufacturer code: 90816-0026
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Maximum current
    • Body colour
    • Current rating
    • Locking system
    • Max. voltage
    • Connector variant
    • Spatial orientation

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Wire-board

    Operating temperature -40...105°C
    Contacts pitch 1.27mm
    Electrical mounting SMT
    Connector socket
    Mechanical mounting on PCBs
    Colour black
    Contact plating tinned
    Type of connector wire-board
    Number of pins 26
    Contact material brass
    Body material polyamide
    Flammability rating UL94HB
    Maximum current 1.2A
    Body colour black
    Current rating 1.2A
    Locking system latch
    Max. voltage 250V
    Connector variant shrouded
    Spatial orientation vertical
