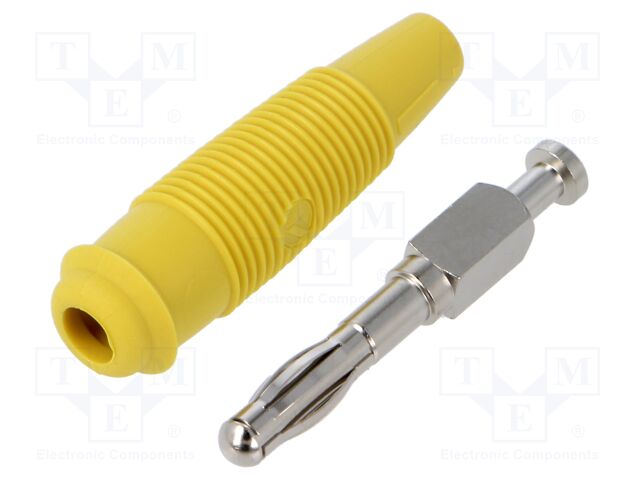

Connector: 4mm banana; plug; 32A; 60VDC; yellow; non-insulated

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 972518103
    Manufacturer: HIRSCHMANN T&M
    Manufacturer code: 972518103
    • Mounting
    • Operating temperature
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Current rating
    • Rated voltage
    • Connector variant
    • Max. wire diameter

    2.31 € 2.31 € (wo VAT) 2.31 EUR

    2.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Connector: 4mm banana; plug; 32A; 60VDC; yellow; non-insulated

    Mounting soldered
    Operating temperature -25...70°C
    Connector plug
    Mechanical mounting for cable
    Colour yellow
    Contact plating nickel plated
    Contact material brass
    Max. contact resistance: 3mΩ
    Current rating 32A
    Rated voltage 60V DC
    Connector variant non-insulated
    Max. wire diameter 4.2mm
