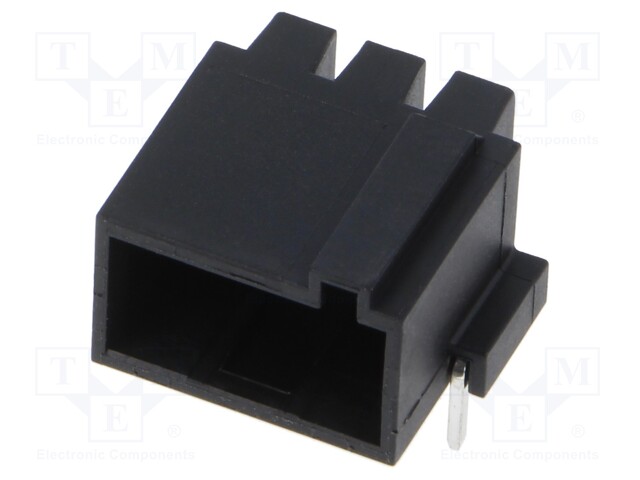

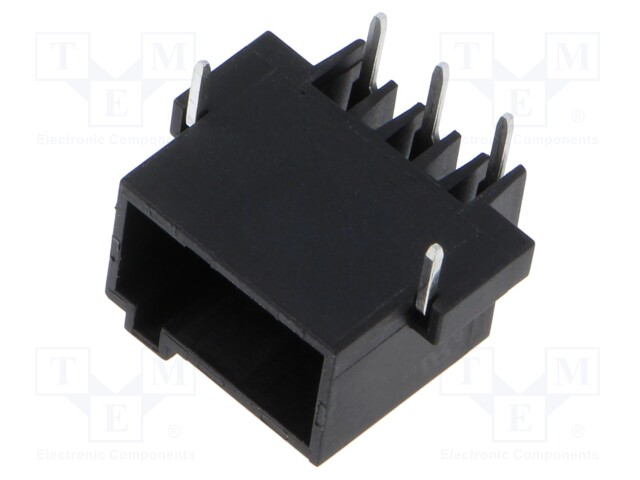

Pluggable terminal block; 5mm; ways: 3; angled 90°; socket; male

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 9EDGRC-5.0-03P-13-00A(H)
    Manufacturer: DEGSON ELECTRONICS
    Manufacturer code: 9EDGRC-5.0-03P-13-00A(H)
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Current rating
    • Number of ways
    • Number of terminals
    • Locking system
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation

    1.62 € 1.62 € (wo VAT) 1.62 EUR

    1.62 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Pluggable terminal block; 5mm; ways: 3; angled 90°; socket; male

    Operating temperature -40...105°C
    Contacts pitch 5mm
    Electrical mounting THT
    Connector socket
    Kind of connector male
    Mechanical mounting on PCBs
    Colour black
    Contact plating tinned
    Type of connector pluggable terminal block
    Contact material brass
    Body material NYLON 66
    Flammability rating UL94V-0
    Current rating 20A
    Number of ways 3
    Number of terminals 3
    Locking system friction lock
    Conform to the norm CE, UL, VDE
    Spatial orientation angled 90°
