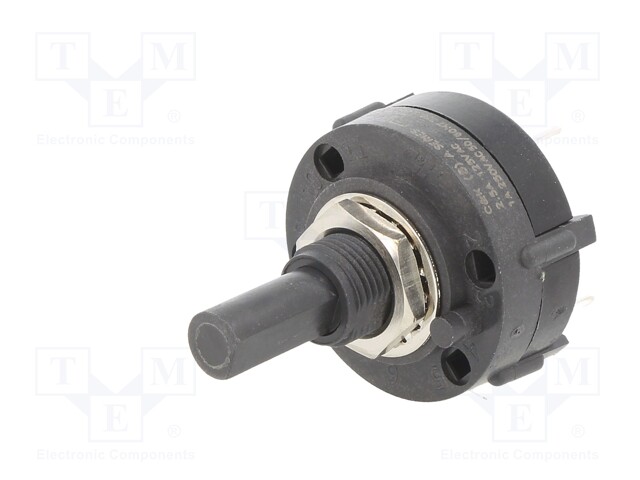

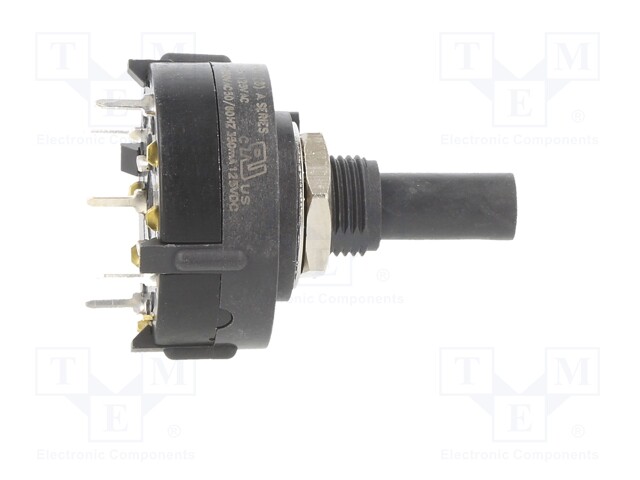

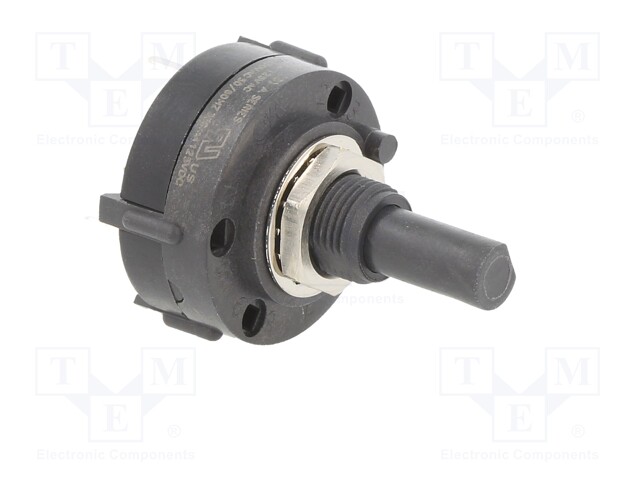

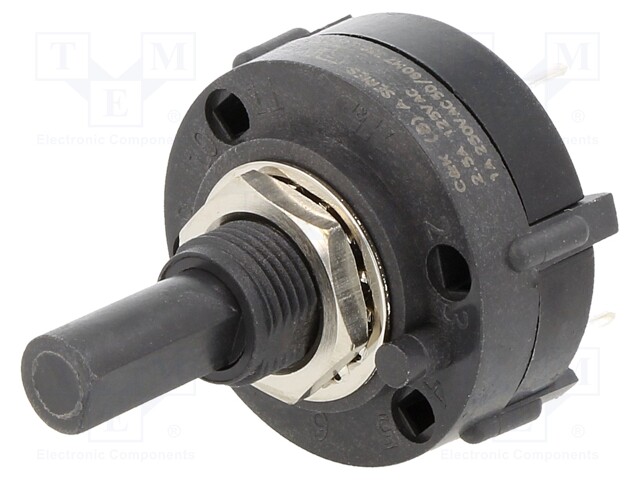

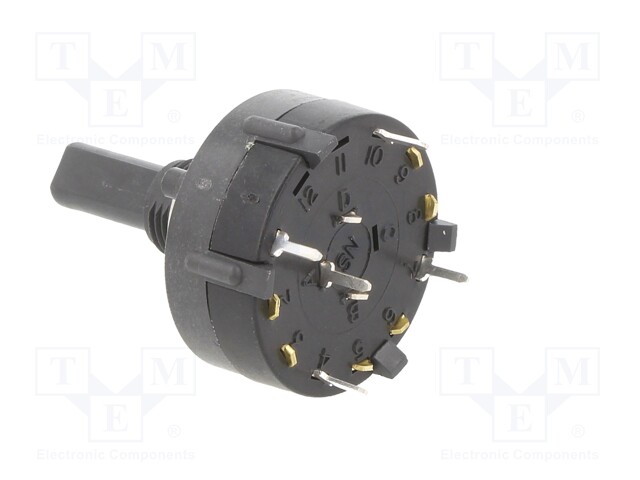

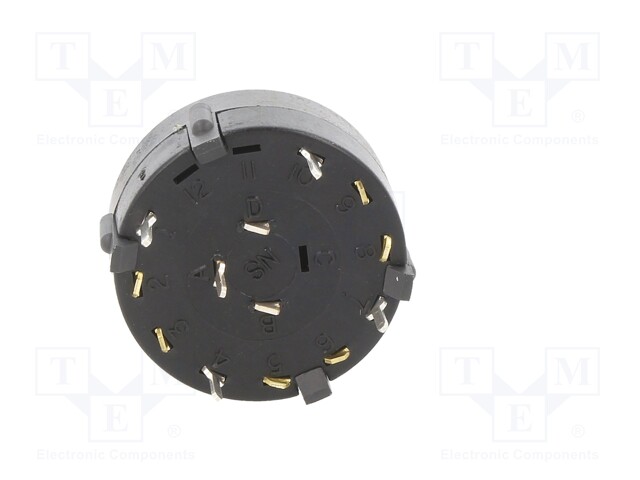

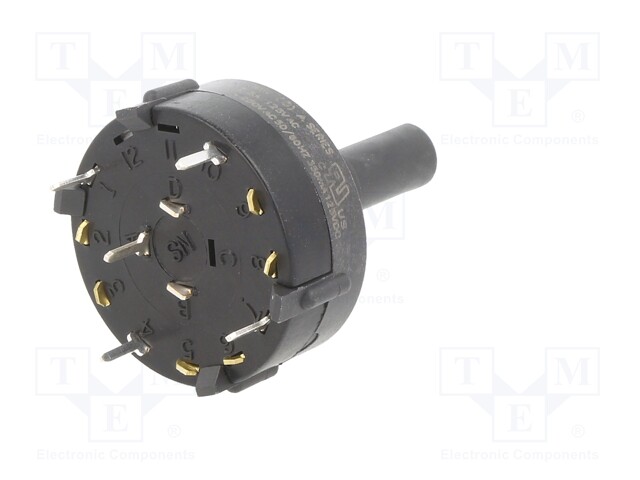

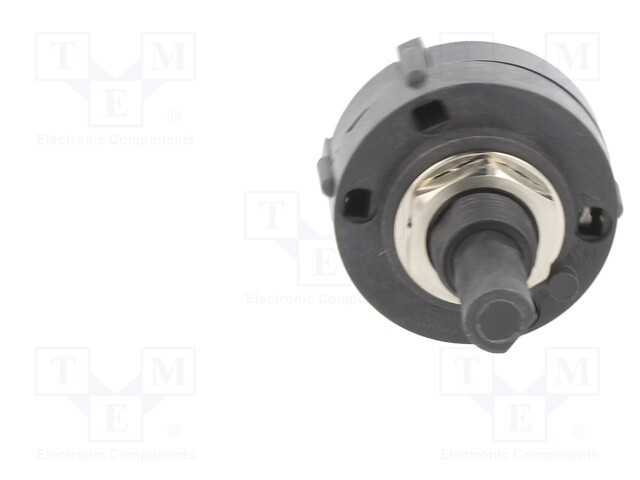

Switch: rotary; Pos: 4; SPDT; 2.5A/125VAC; 0.35A/125VDC; 90°

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: A12405RNCQ
    Manufacturer: C&K
    Manufacturer code: A12405RNCQ
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Fastening thread
    • Contact material
    • Max. contact resistance:
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Stable positions number

    10.65 € 10.65 € (wo VAT) 10.65 EUR

    10.65 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: rotary; Pos: 4; SPDT; 2.5A/125VAC; 0.35A/125VDC; 90°

    Mounting THT
    Operating temperature -30...85°C
    Type of switch rotary
    Contact plating silver plated
    Number of positions 4
    Leads for PCB
    Fastening thread 3/8-32 NEF-2A
    Contact material brass
    Max. contact resistance: 20mΩ
    Body dimensions Ø26.19x12.83mm
    Min. insulation resistance 10GΩ
    Electrical life 15000cycles
    Shaft length 12.7mm
    Shaft diameter 6.35mm
    Shaft surface D spring
    Poles number 1
    Contacts configuration SPDT
    DC contacts rating @R 0.35A / 125V DC
    AC contacts rating @R 2.5A / 125V AC
    Stable positions number 4
