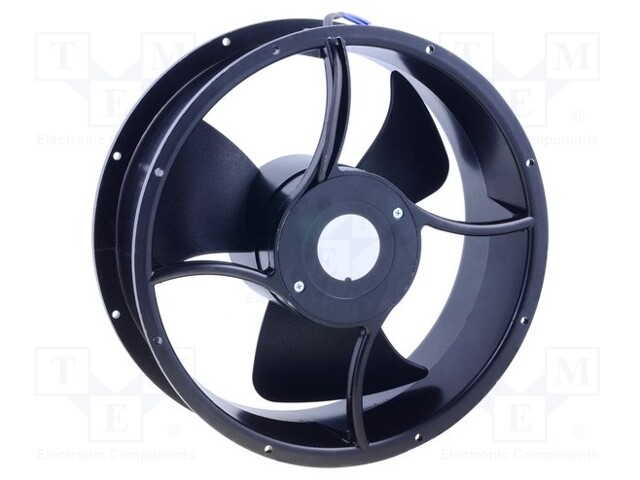

Fan: AC; axial; 115VAC; Ø254x89mm; 1444(±10%)m3/h; 68dBA; 2600rpm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: A1259XBL-TC.GN
    Manufacturer: SUNON
    Manufacturer code: A1259XBL-TC.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Frequency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    143.00 € 143.00 € (wo VAT) 143.0 EUR

    143.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: AC; axial; 115VAC; Ø254x89mm; 1444(±10%)m3/h; 68dBA; 2600rpm

    Supply voltage 115V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Flammability rating UL94V-0
    Frequency 50Hz
    Power consumption 88W
    Rotational rate/speed 2600rpm
    Fan motor Alveolate type motor with running capacitor
    Fan dimensions Ø254x89mm
    Kind of Bearing ball bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 19.3mm H<sub>2</sub>O
    Noise level 68dBA
