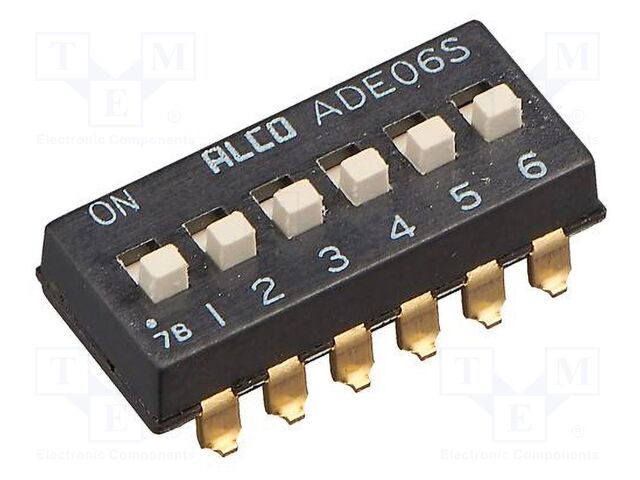

Switch: DIP-SWITCH

    Multiples: 25.0
    Minimum quantity: 100.0
    Product code: ADE06S04
    Manufacturer: TE Connectivity
    Manufacturer code: ADE06S04
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Overall length
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • Switching method

    1.50 € 1.50 € (wo VAT) 1.5 EUR

    1.50 €

    This combination does not exist.

    Add to Cart

    Specification for Switch: DIP-SWITCH

    Mounting SMT
    Operating temperature -30...85°C
    Type of switch DIP-SWITCH
    Switches features raised actuator
    Contact plating gold-plated
    Number of positions 6
    Contact material copper alloy
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Overall length 17.2mm
    Min. insulation resistance 1GΩ
    Electrical life 1000cycles
    Contacts configuration SPST
    Switching method OFF-ON
