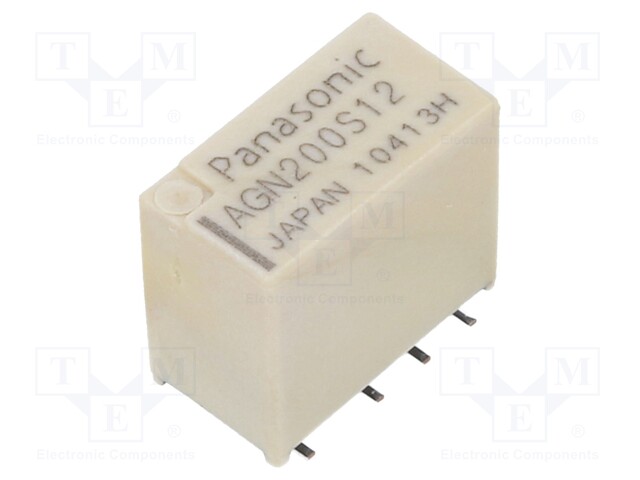

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.3A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AGN200S12J
    Manufacturer: PANASONIC
    Manufacturer code: AGN200S12J
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil voltage min.

    4.53 € 4.53 € (wo VAT) 4.53 EUR

    4.53 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 0.3A/125VAC; 1A/30VDC

    Mounting SMT
    Operating temperature -40...85°C
    Contact material AgPd/Au 0,2μm

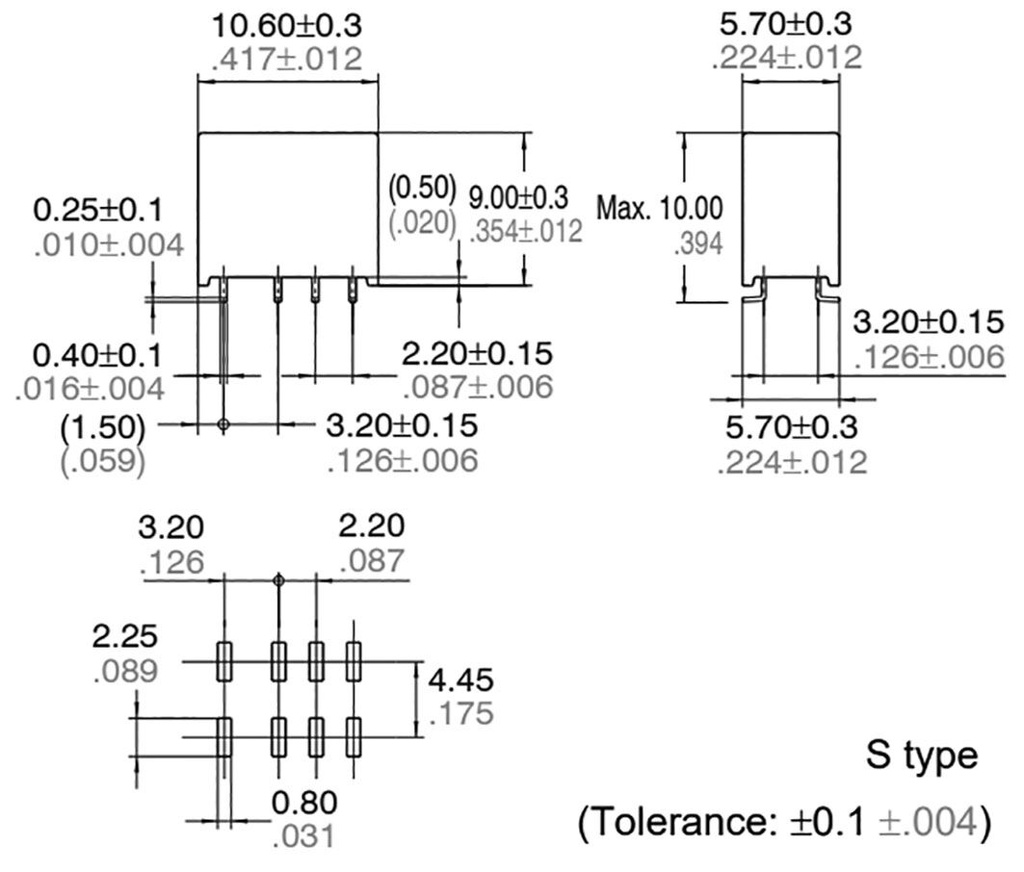

    Body dimensions 10.6x5.7x9mm
    Mechanical durability 50000000cycles
    Switched voltage max. 110V DC, max. 125V AC
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 0.3A / 125V AC
    Contact current max. 1A
    Relay variant signal, subminiature
    Type of relay electromagnetic
    Coil voltage min. 9V DC
