Relay: electromagnetic; SMT; -40÷85°C; Contacts: DPDT; Series: AGN

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AGN21012
    Manufacturer: PANASONIC
    Manufacturer code: AGN21012
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay

    3.75 € 3.75 € (wo VAT) 3.75 EUR

    3.75 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SMT; -40÷85°C; Contacts: DPDT; Series: AGN

    Mounting SMT
    Operating temperature -40...85°C
    Contact material AgPd/Au 0,2μm

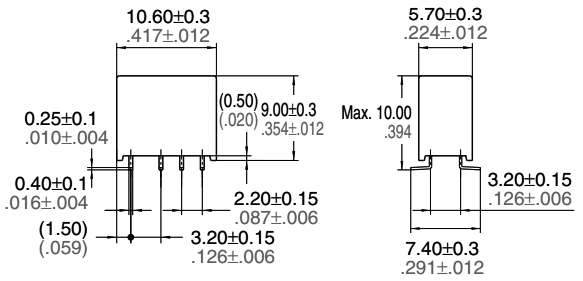

    Body dimensions 10.6x5.7x9mm
    Mechanical durability 50000000cycles
    Switched voltage max. 110V DC, max. 125V AC
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 0.3A / 125V AC
    Contact current max. 1A
    Relay variant signal, subminiature
    Type of relay electromagnetic
