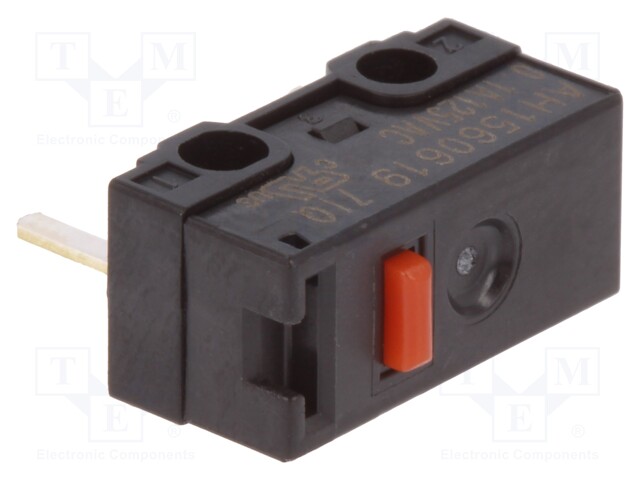

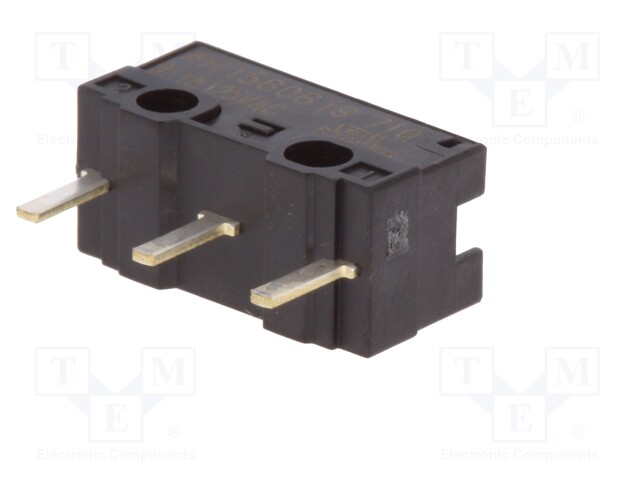

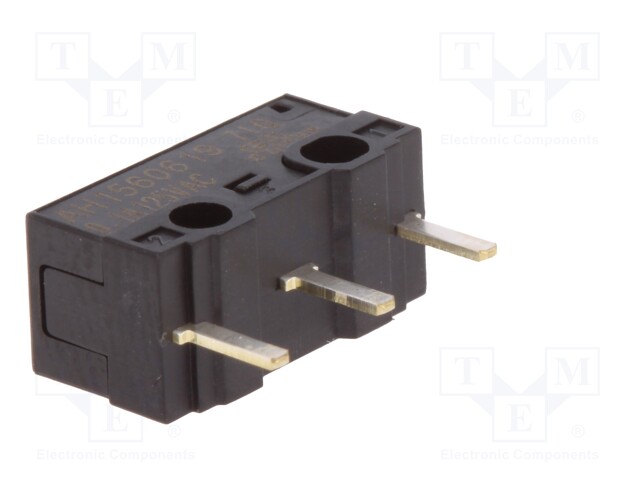

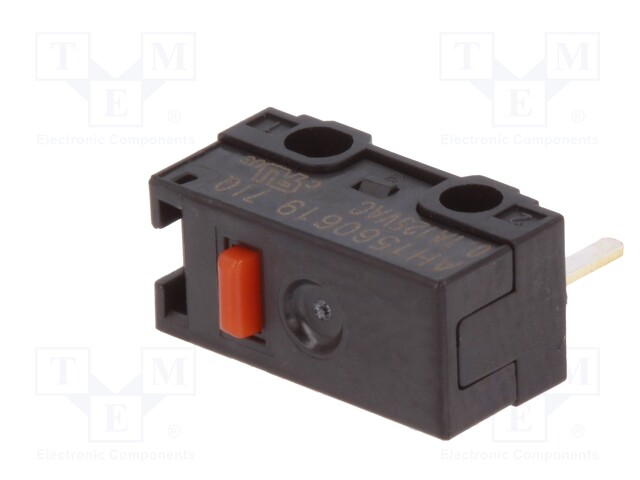

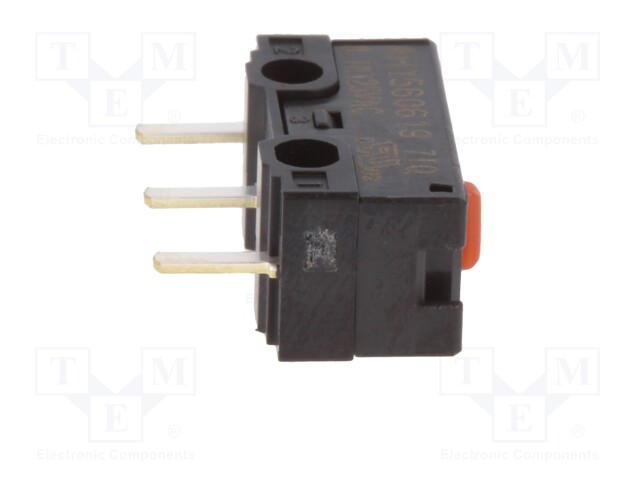

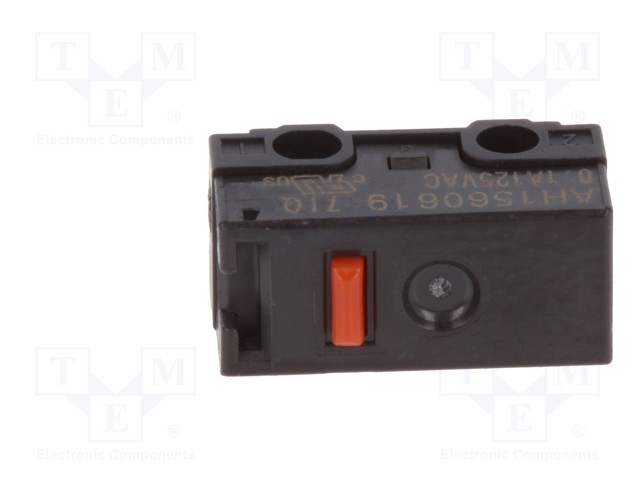

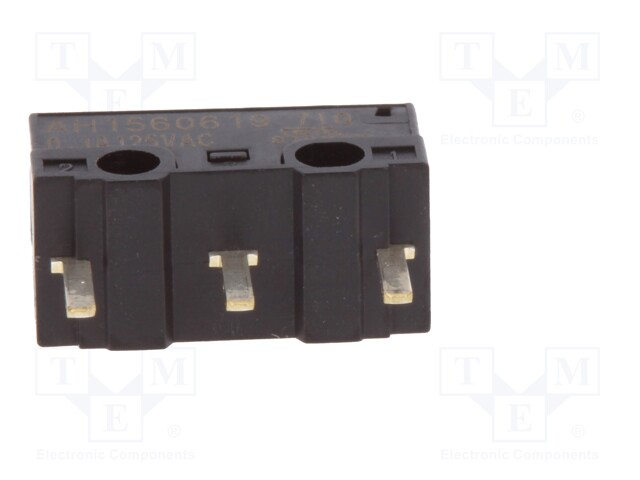

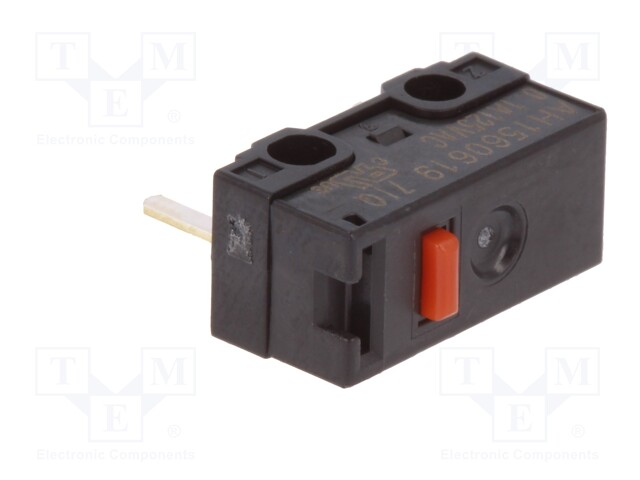

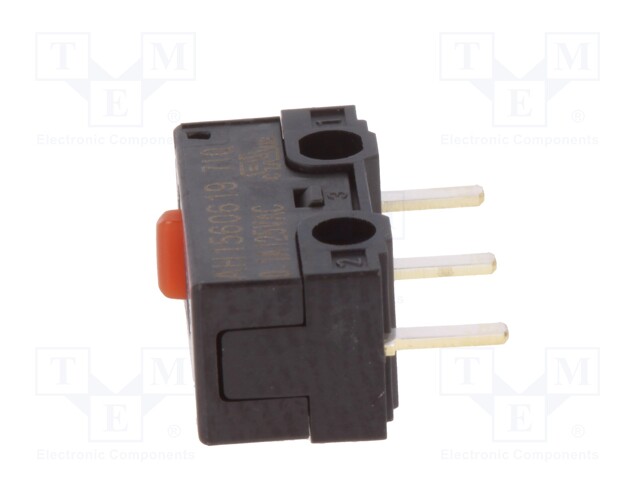

Microswitch SNAP ACTION; without lever; SPDT; 3A/125VAC; ON-(ON)

    Multiples: 2000.0
    Minimum quantity: 2000.0
    Product code: AH1560619-A
    Manufacturer: PANASONIC
    Manufacturer code: AH1560619-A
    • Operating temperature
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body dimensions
    • Mechanical durability
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force

    1.58 € 1.58 € (wo VAT) 1.58 EUR

    1.58 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Microswitch SNAP ACTION; without lever; SPDT; 3A/125VAC; ON-(ON)

    Operating temperature -25...85°C
    Type of switch microswitch SNAP ACTION
    Switches features without lever
    Number of positions 2
    Leads for PCB, straight
    Contact material AgNi + Au
    Max. contact resistance: 30mΩ
    Body dimensions 12.8x6x7mm
    Mechanical durability 500000cycles
    Electrical life 30000cycles
    Contacts configuration SPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 3A / 125V AC
    Switching method ON-(ON)
    Stable positions number 1
    Operating Force 1.47N
