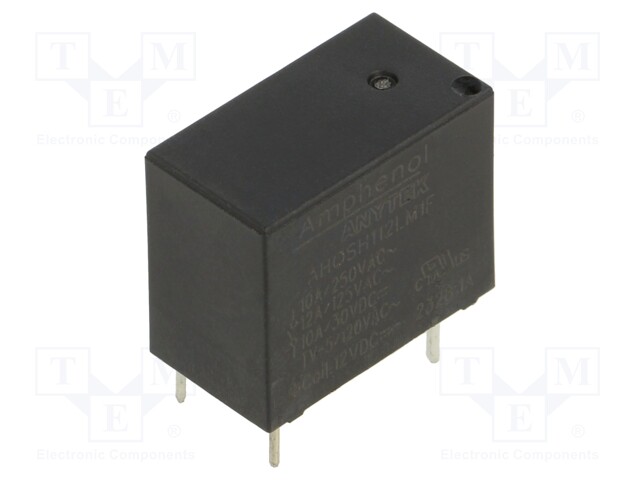

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AHQSH112LM1F00G
    Manufacturer: AMPHENOL ANYTEK
    Manufacturer code: AHQSH112LM1F00G
    • Mounting
    • Operating temperature
    • Contact material
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Type of relay
    • Coil power consumption

    1.38 € 1.38 € (wo VAT) 1.3800000000000001 EUR

    1.38 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC

    Mounting PCB
    Operating temperature -40...105°C
    Contact material silver alloy
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Type of relay electromagnetic
    Coil power consumption 200mW
