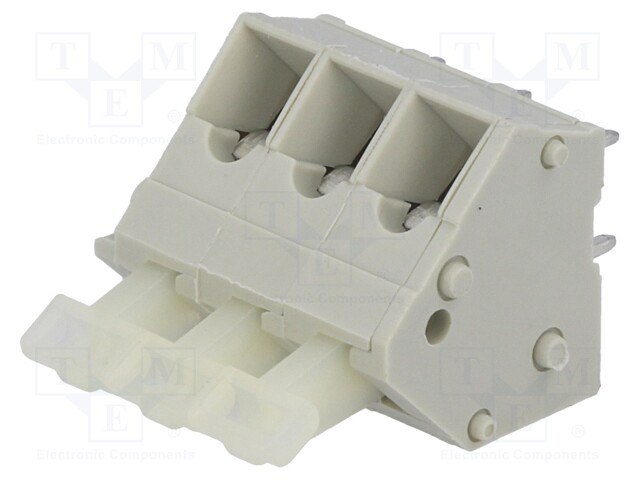

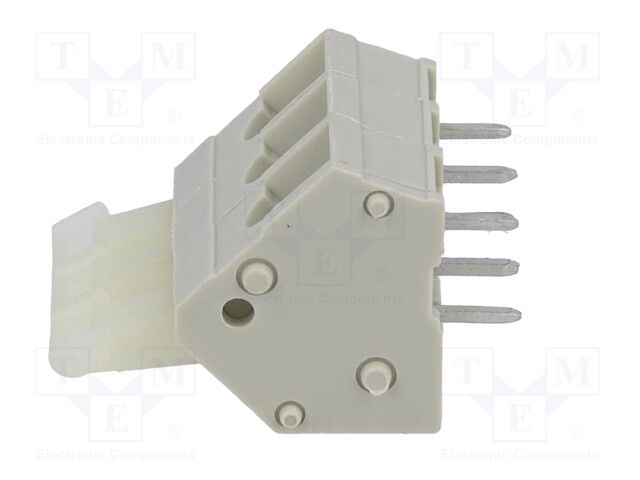

    PCB terminal block; angled 45°; 5mm; ways: 3; on PCBs; 0.5÷2.5mm2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AK3001/3-KD-5.0/KIES
    Manufacturer: PTR MESSTECHNIK
    Manufacturer code: AK3001/3-KD-5.0/KIES
    Certificates:
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Depth

    2.45 € 2.45 € (wo VAT) 2.45 EUR

    2.45 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for PCB terminal block; angled 45°; 5mm; ways: 3; on PCBs; 0.5÷2.5mm2

    Operating temperature -30...105°C
    Contacts pitch 5mm
    Electrical mounting spring clamp, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour grey
    Type of connector PCB terminal block
    Contact material copper alloy
    Body material NYLON 66
    Flammability rating UL94V-0
    Length 16mm
    Height 12.9mm
    Current rating 24A
    Number of ways 3
    Type of pin configuration 1x3
    Connector variant with lever
    Conform to the norm UL, VDE
    Spatial orientation angled 45°
    Depth 14.2mm
