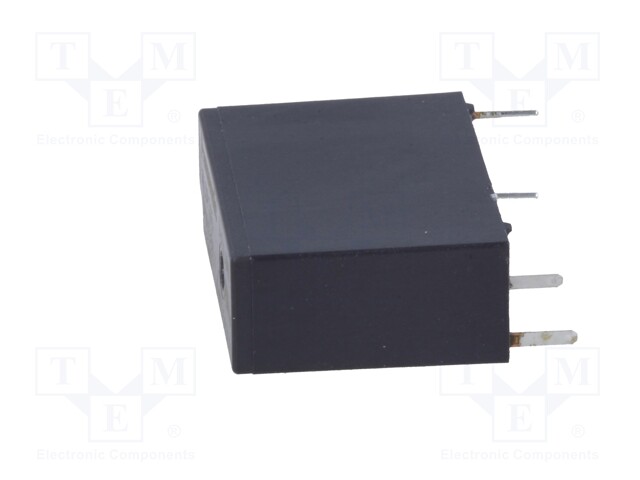

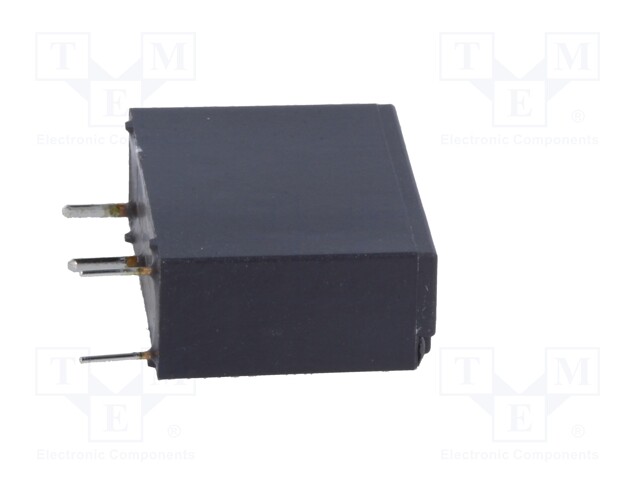

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/277VAC; 3A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ALDP105
    Manufacturer: PANASONIC
    Manufacturer code: ALDP105
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    2.25 € 2.25 € (wo VAT) 2.25 EUR

    2.25 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A/277VAC; 3A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

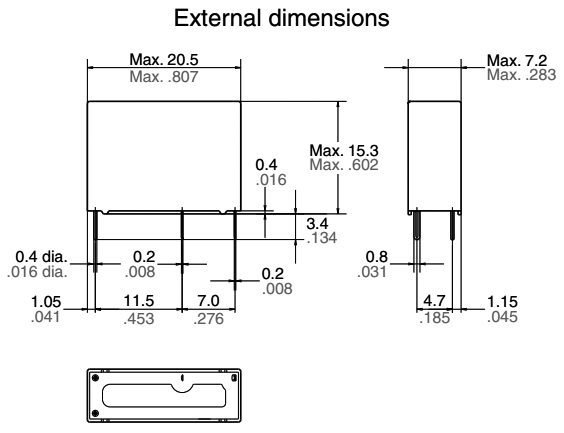

    Body dimensions 20.5x7.2x15.3mm
    Mechanical durability 5000000cycles
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 3A / 30V DC
    AC contacts rating @R 5A / 277V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 200mW
    Coil current 40mA
