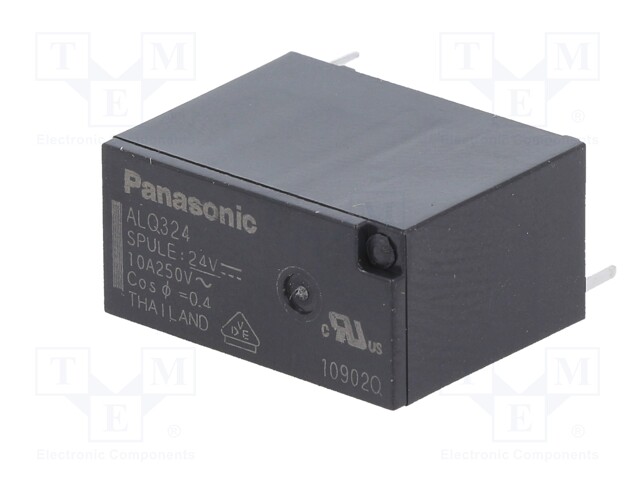

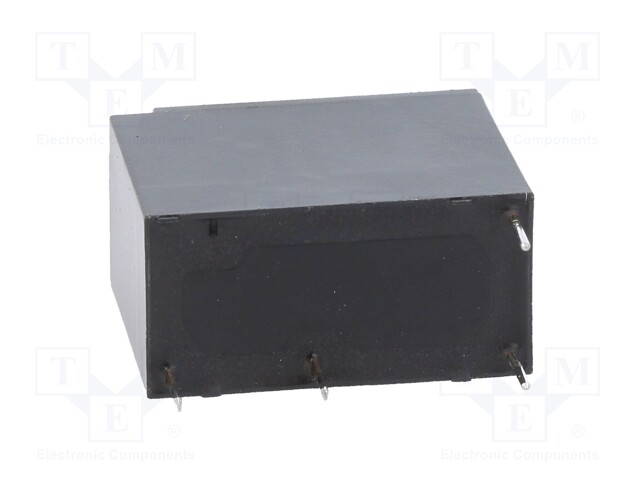

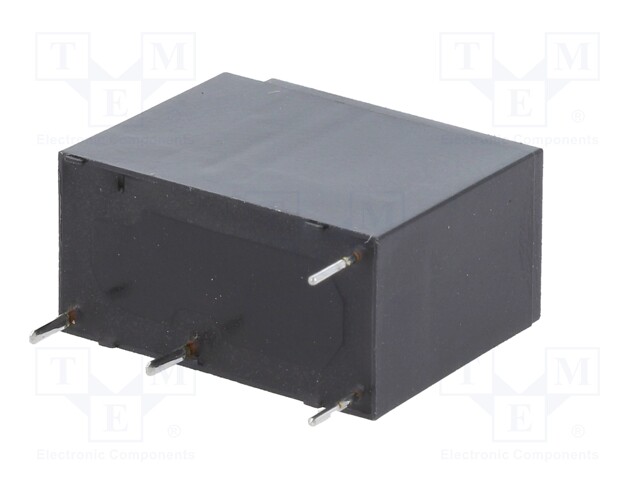

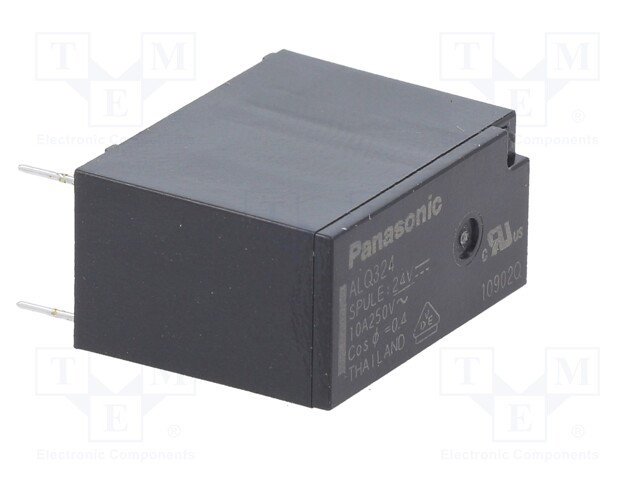

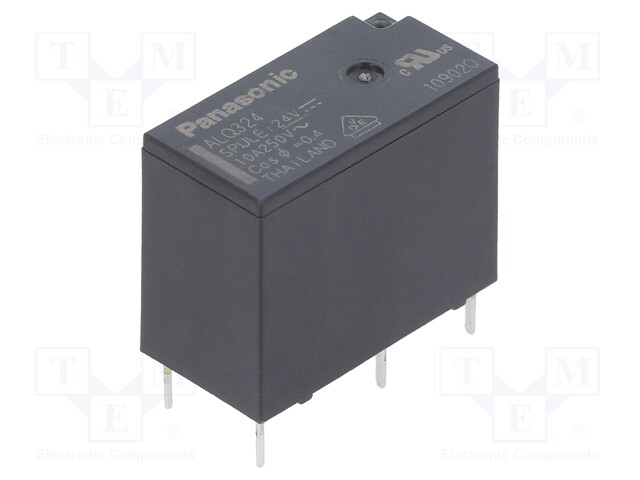

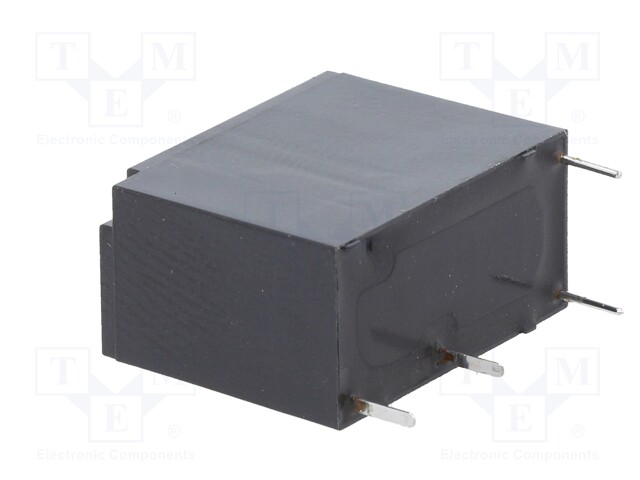

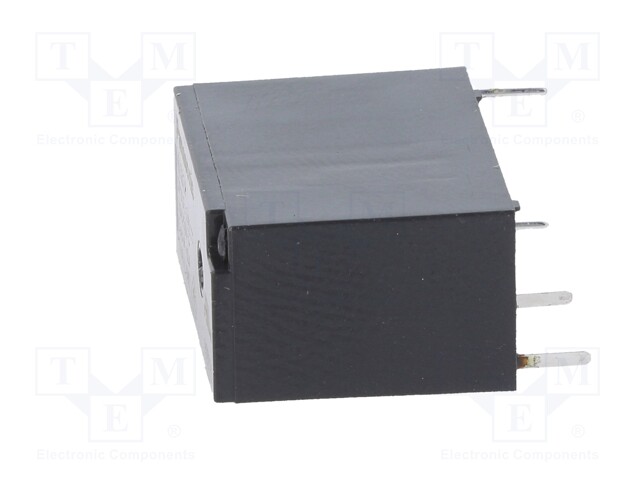

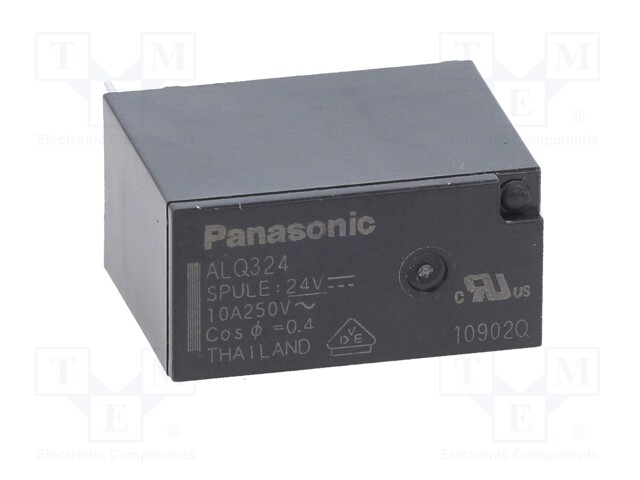

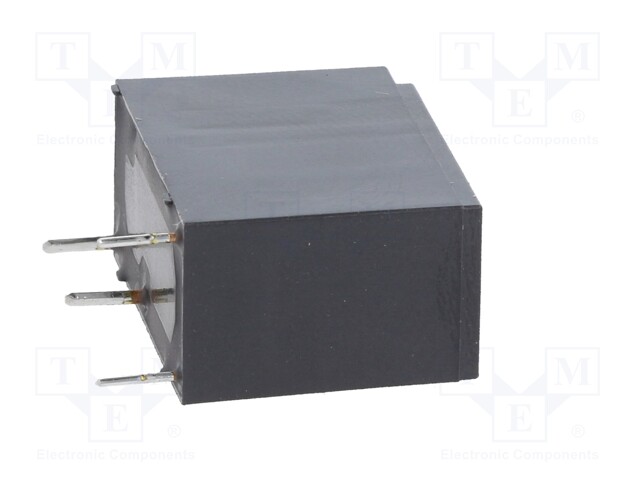

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ALQ324
    Manufacturer: PANASONIC
    Manufacturer code: ALQ324
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    3.11 € 3.11 € (wo VAT) 3.11 EUR

    3.11 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgNi
    Body dimensions 20x10x15.6mm
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 400mW
    Coil current 8.3mA
