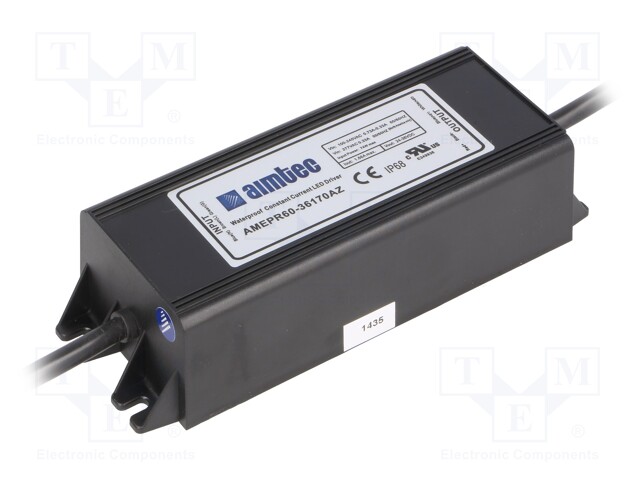

Power supply: switched-mode; LED; 59W; 24÷36VDC; 1.7A; 90÷305VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AMEPR60-36170AZ
    Manufacturer: AIMTEC
    Manufacturer code: AMEPR60-36170AZ
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • IP rating
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection

    41.48 € 41.48 € (wo VAT) 41.480000000000004 EUR

    41.48 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; LED; 59W; 24÷36VDC; 1.7A; 90÷305VAC

    Output current 1.7A
    Supply voltage 90...305V AC, 130...430V DC
    Power 59W
    Operating temperature -40...85°C
    IP rating IP68
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series AMEPR60-AZ
    Application LED

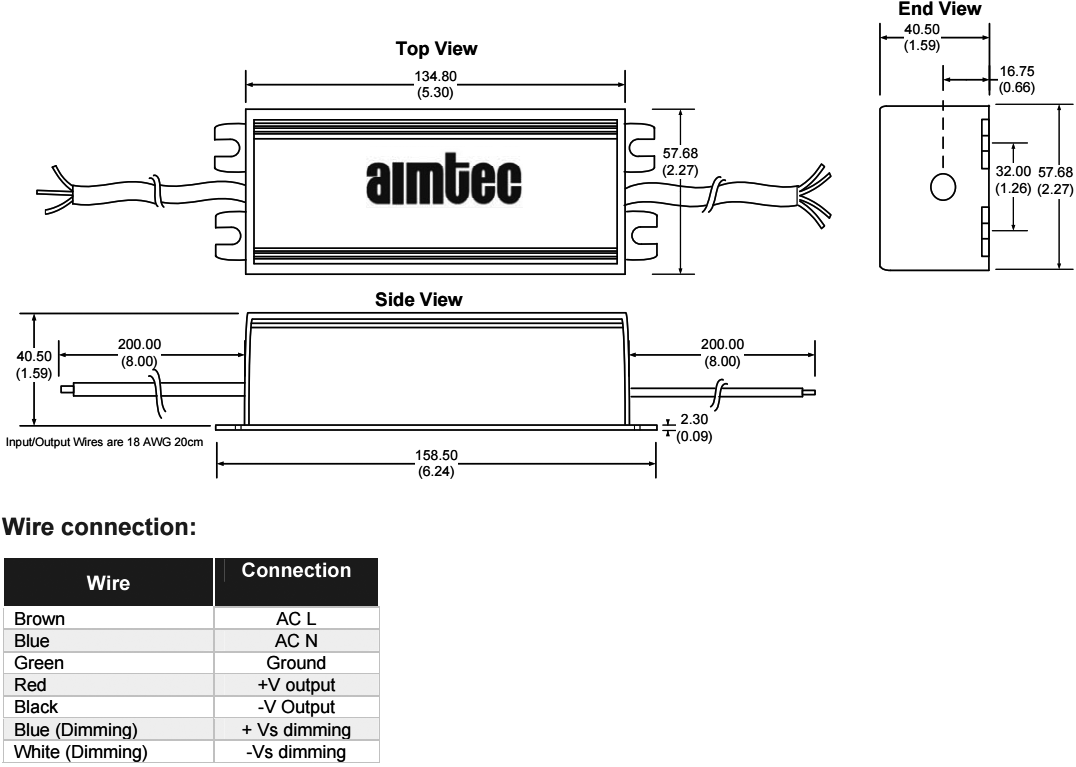

    Body dimensions 134.8x57.7x40.5mm
    Output voltage 24...36V DC
    Additional functions active PFC, dimming function 1-10V DC, PWM controlled dimming function, resistance dimming function
    Efficiency 88%
    Number of outputs 1
    Electrical connection wires
