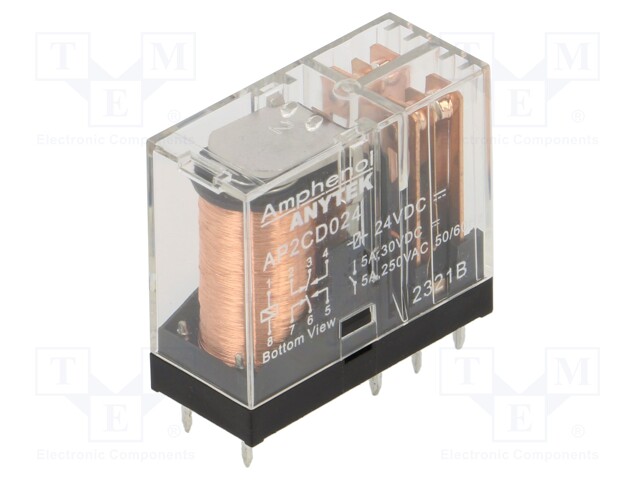

Relay: electromagnetic power; DPDT; Ucoil: 24VDC; 5A; Series: AP

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AP2CD02400G
    Manufacturer: ANYTEK
    Manufacturer code: AP2CD02400G
    • Mounting
    • Series
    • Contact material
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Coil power consumption

    3.35 € 3.35 € (wo VAT) 3.35 EUR

    3.35 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic power; DPDT; Ucoil: 24VDC; 5A; Series: AP

    Mounting PCB
    Series AP
    Contact material AgNi
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Coil power consumption 530mW
