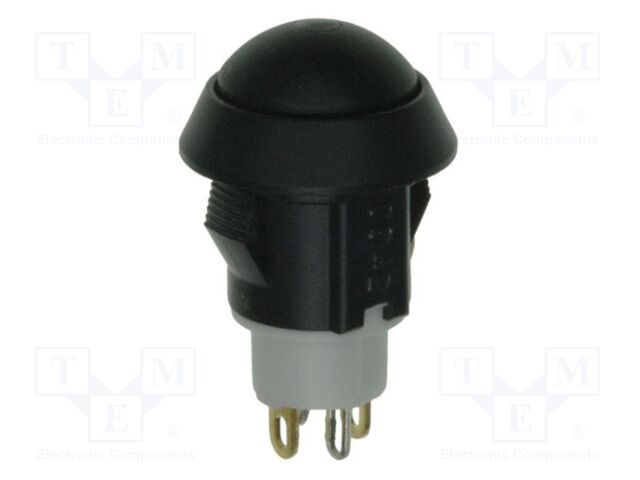

Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; green

    Multiples: 1.0
    Minimum quantity: 80.0
    Product code: AP2D206SZBE
    Manufacturer: C&K
    Manufacturer code: AP2D206SZBE
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Contact plating
    • Number of positions
    • Leads
    • Series
    • Contact material
    • Max. contact resistance:
    • Mounting hole diameter
    • Mechanical durability
    • Number of terminals
    • Backlight colour
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button shape
    • Button shape

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.2A/24VDC; green

    Mounting SNAP-IN
    Operating temperature -40...85°C
    IP rating IP65
    Type of switch push-button
    Contact plating silver plated, gold-plated
    Number of positions 2
    Leads for soldering
    Series AP
    Contact material copper
    Max. contact resistance: 50mΩ
    Mounting hole diameter Ø13.7mm
    Mechanical durability 1000000cycles
    Number of terminals 4
    Backlight colour green
    Illumination LED
    Min. insulation resistance 1GΩ
    Electrical life 500000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 0.2A / 24V DC
    AC contacts rating @R 0.4A / 32V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 2N
    Actuator colour black
    Button shape convex, prominent
    Button shape round
