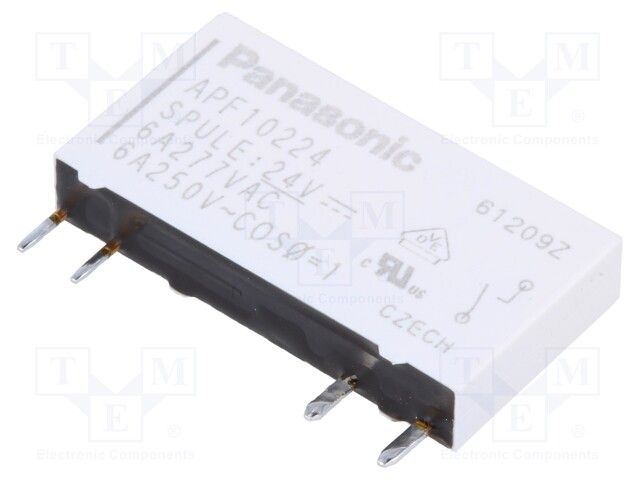

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 6A/250VAC; 3388Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: APF10224
    Manufacturer: PANASONIC
    Manufacturer code: APF10224
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    7.92 € 7.92 € (wo VAT) 7.92 EUR

    7.92 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 6A/250VAC; 3388Ω

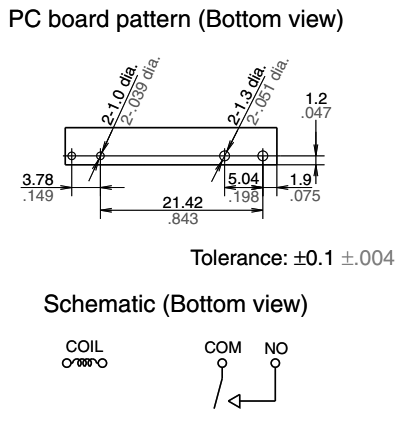

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi

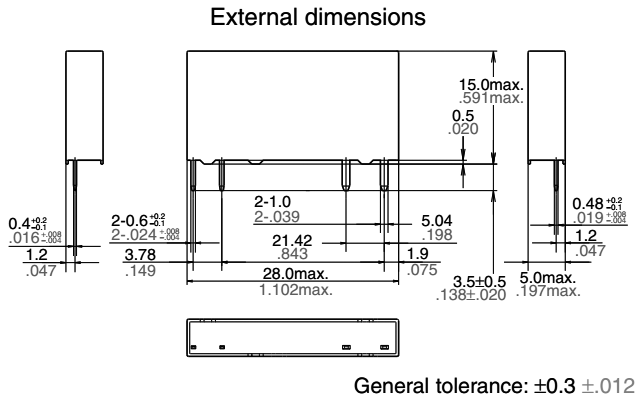

    Body dimensions 28x5x15mm
    Mechanical durability 5000000cycles
    Switched voltage max. 250V AC
    Coil resistance 3388Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 170mW
    Coil current 7.1mA
