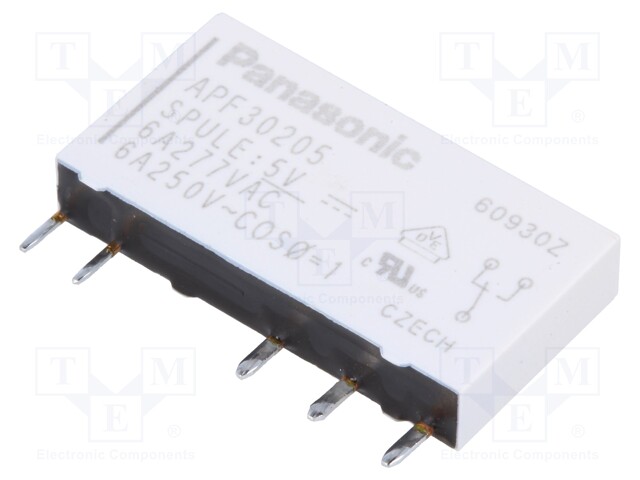

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 6A/250VAC; max.250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: APF30205
    Manufacturer: PANASONIC
    Manufacturer code: APF30205
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    4.37 € 4.37 € (wo VAT) 4.37 EUR

    4.37 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 5VDC; 6A/250VAC; max.250VAC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi
    Body dimensions 28x5x15mm
    Mechanical durability 5000000cycles
    Switched voltage max. 250V AC
    Coil resistance 147Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 170mW
    Coil current 34mA
