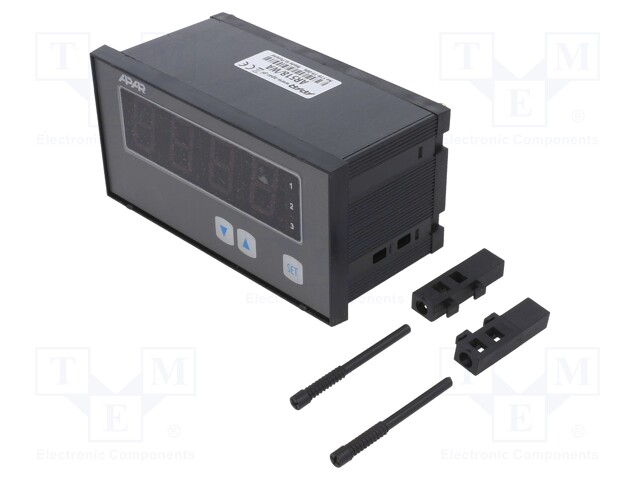

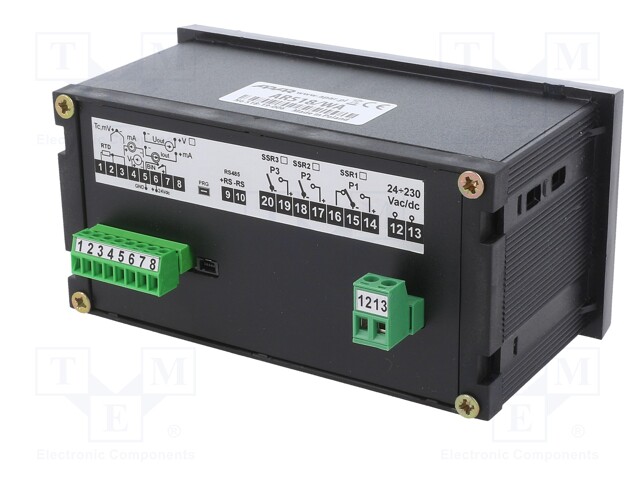

Module: meter; pressure,speed,temperature,humidity; panel

• Mounting on panel
• Supply voltage 20...350V DC
• Operating temperature 0...50°C
• IP rating IP20 at terminal side
• IP rating IP54 (from the front)
• Mounting hole diameter 138x67mm
• Body dimensions 144x72x72mm
• Kind of display used LED
• Additional functions signalling of detected errors with a messages on the display, signal digital filtering, sensors supply voltage 24V DC / 30mA
• Additional functions temperature compensation of thermocouple cold ends
• Additional functions universal input (selected from keypad)
• Kind of input 1 0...10V DC
• Kind of input 1 0...20mA
• Kind of input 1 0...60mV
• Kind of input 1 4...20mA
• Kind of input 1 universal
• Kind of temperature sensor Ni100
• Kind of temperature sensor Pt100
• Kind of temperature sensor Pt500
• Kind of temperature sensor Pt1000
• Kind of temperature sensor thermocouple B
• Kind of temperature sensor thermocouple J
• Kind of temperature sensor thermocouple K
• Kind of temperature sensor thermocouple R
• Kind of temperature sensor thermocouple S
• Kind of temperature sensor thermocouple T
• Controlled parameter humidity
• Controlled parameter pressure
• Controlled parameter speed
• Controlled parameter temperature
• Kind of output 1 0...20mA
• Kind of output 1 4...20mA
• The programming method keypad
• Input 1 properties analogue voltage
• Input 1 properties current analog
• Input 1 properties RTD
• Input 1 properties thermocouple
• Display height 1 25mm
