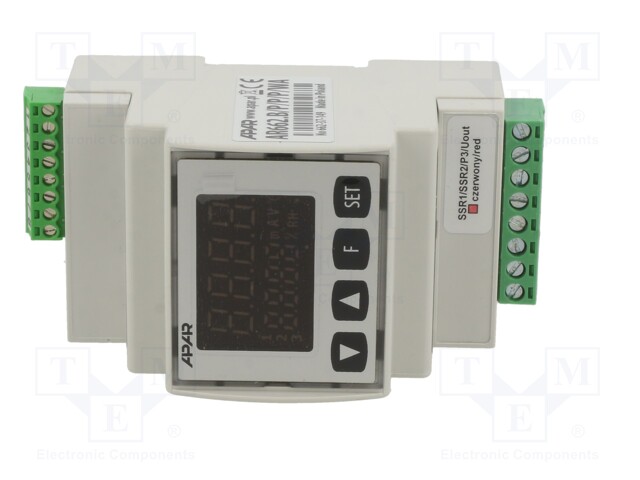

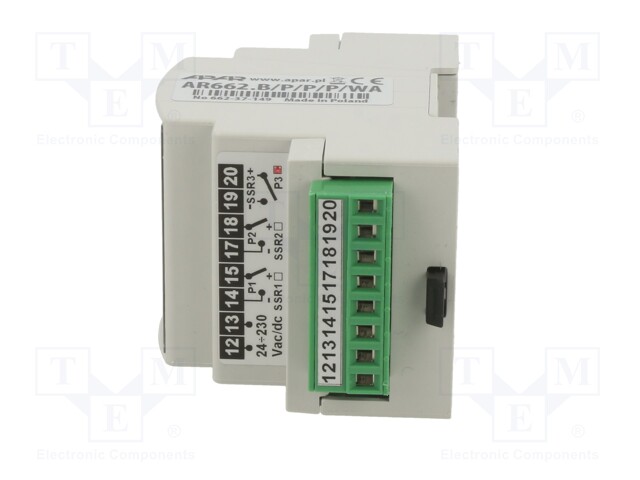

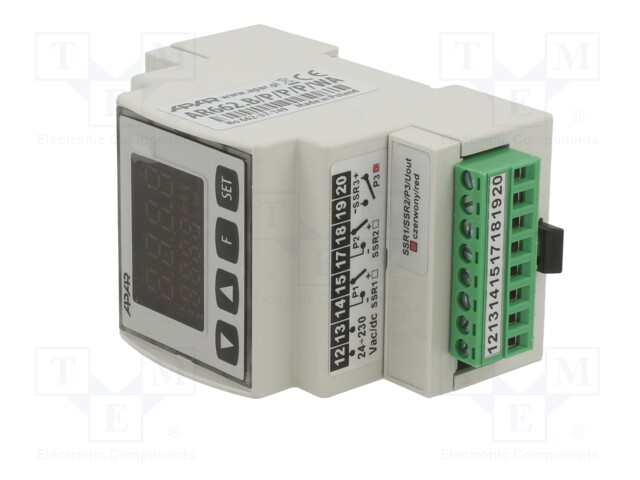

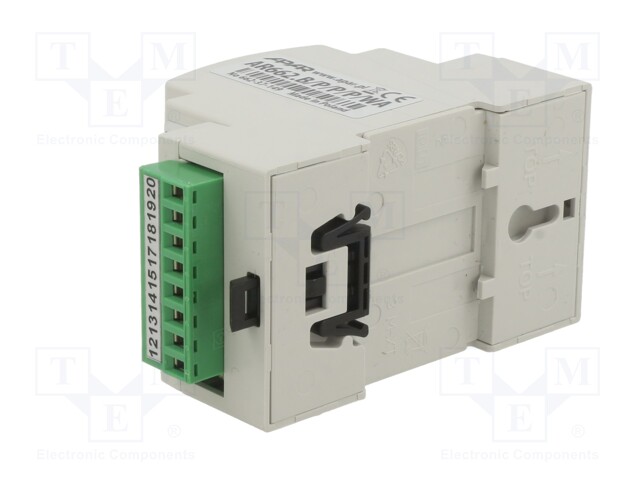

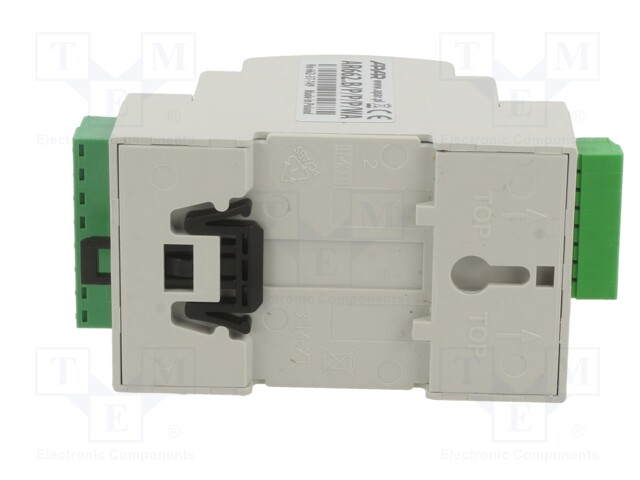

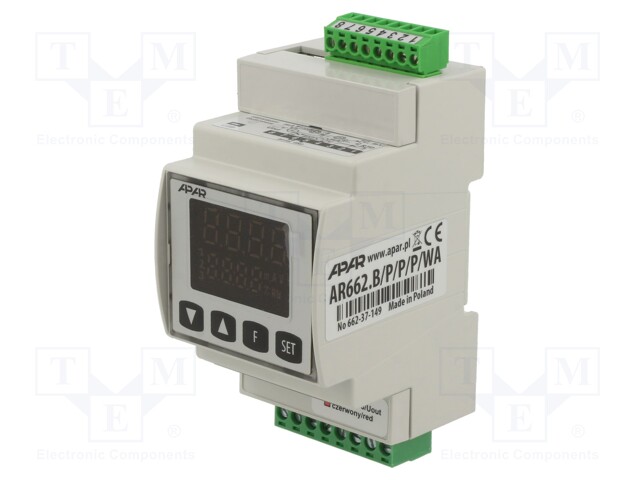

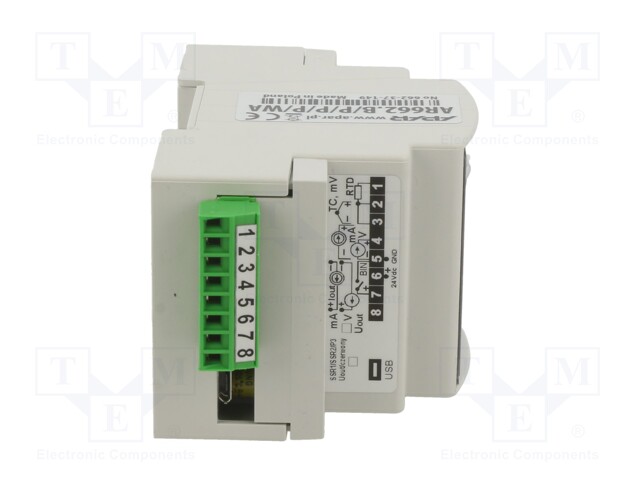

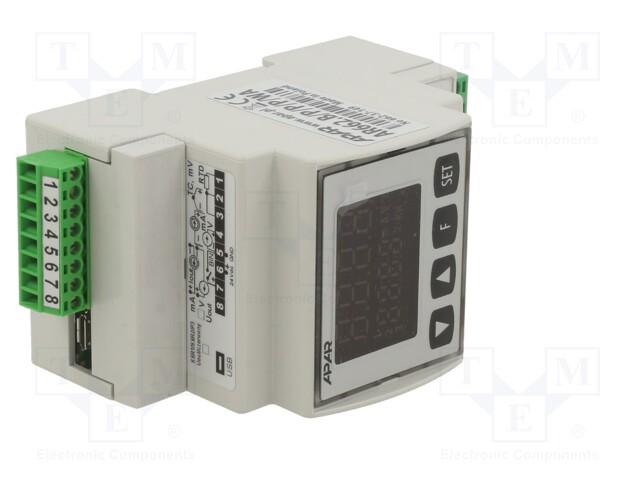

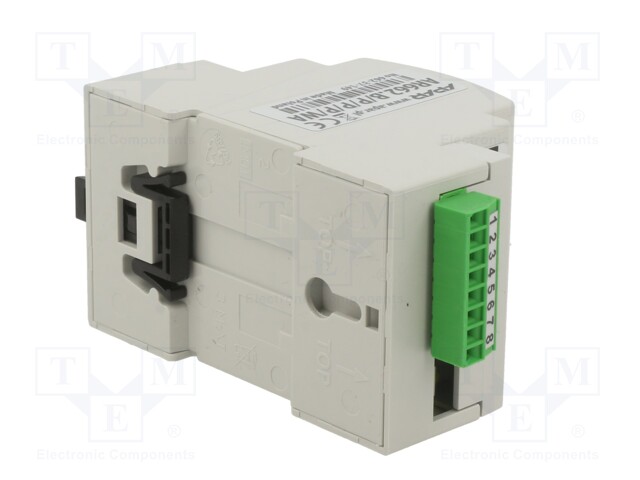

Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; 0÷50°C
Multiples:
1.0
Minimum quantity:
1.0
Product code:
AR662.B/P/P/P/WA
Manufacturer: APAR
Manufacturer code: AR662.B/P/P/P/WA
Product downloads
Specification for Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; 0÷50°C
| Mounting | for DIN rail mounting |
| Operating temperature | 0...50°C |
| IP rating | IP20 at terminal side |
| Body dimensions | 53x90x62mm |
| Kind of display used | LED |
| Kind of input 1 | 0/4...20mA, 0...10V, 0...60mV, 0...2500Ω, analogue, RTD, thermocouple, universal |
| Kind of temperature sensor | Ni100, Pt100, Pt500, Pt1000, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | temperature |
| Kind of output 1 | SPST-NO |
| The programming method | foil keypad |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | SPST-NO |
| Input 1 properties | analogue voltage, current analog, RTD, thermocouple |
| Display height 1 | 9mm |
| Regulation for output 1 | AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID |
| Regulation for output 2 | ON-OFF with hysteresis |
| Display 2 height | 7mm |
