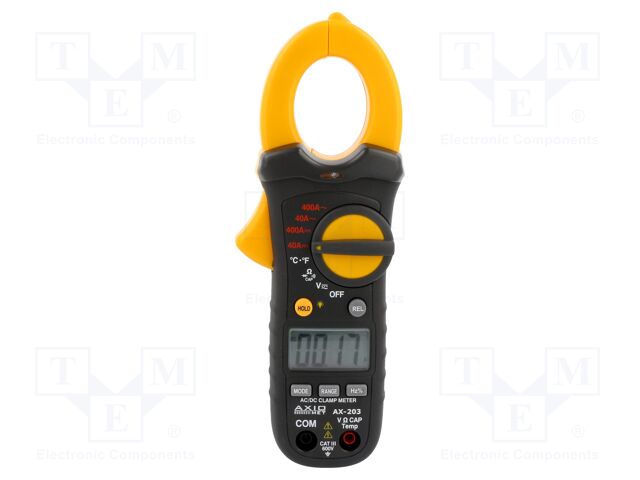

AC/DC digital clamp meter; Øcable: 23mm; Sampling: 2x/s; 0.5÷99%
Multiples:
1.0
Minimum quantity:
1.0
Certificates:
Product downloads
Specification for AC/DC digital clamp meter; Øcable: 23mm; Sampling: 2x/s; 0.5÷99%
| Dimensions | 200x50x35mm |
| Temperature measuring range | -50...760°C |
| Kind of display used | LCD |
| Duty cycle factor | 0.5...99% |
| Conform to the norm | CAT III 600V, EN 61010 |
| Measuring instrument features | automatic power-off, contactless voltage detector, display zeroing function in DCA measurements, HOLD function, low battery indicator, overflow indicator, REL function |
| Measuring unit | °C, °F |

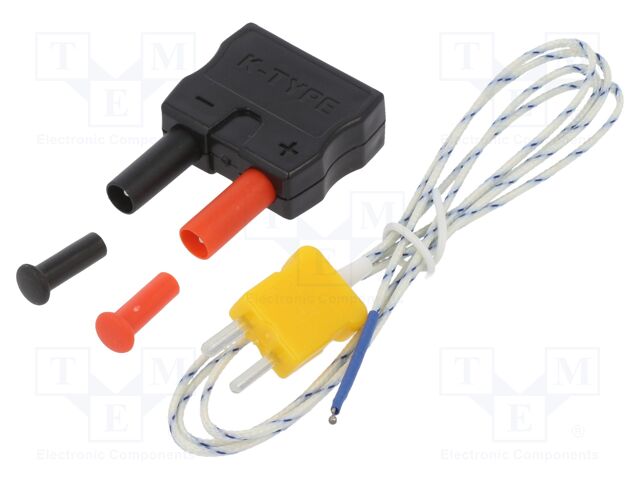

| Standard equipment | case, drop-like K-type temperature probe, test leads |
| Max. diameter of measured cable | 30mm |
| Measurement | AC current, AC voltage, capacitance, DC current, DC voltage, duty cycle, frequency, resistance, temperature |
| Continuity test | acoustic indication |
| Sampling | 2x/s |
| Weight without batteries | 183g |
| Current measuring resolution | 10mA |
| Duty cycle factor measurement accuracy | ±(1,2% + 2 digits) |
| Kind of meter | digital |
