Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 50A; Series: AZ2501P

    Multiples: 400.0
    Minimum quantity: 400.0
    Product code: AZ2501P1-1A-24D
    Manufacturer: ZETTLER
    Manufacturer code: AZ2501P1-1A-24D
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay

    5.30 € 5.30 € (wo VAT) 5.3 EUR

    5.30 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 50A; Series: AZ2501P

    Mounting PCB
    Operating temperature -40...70°C

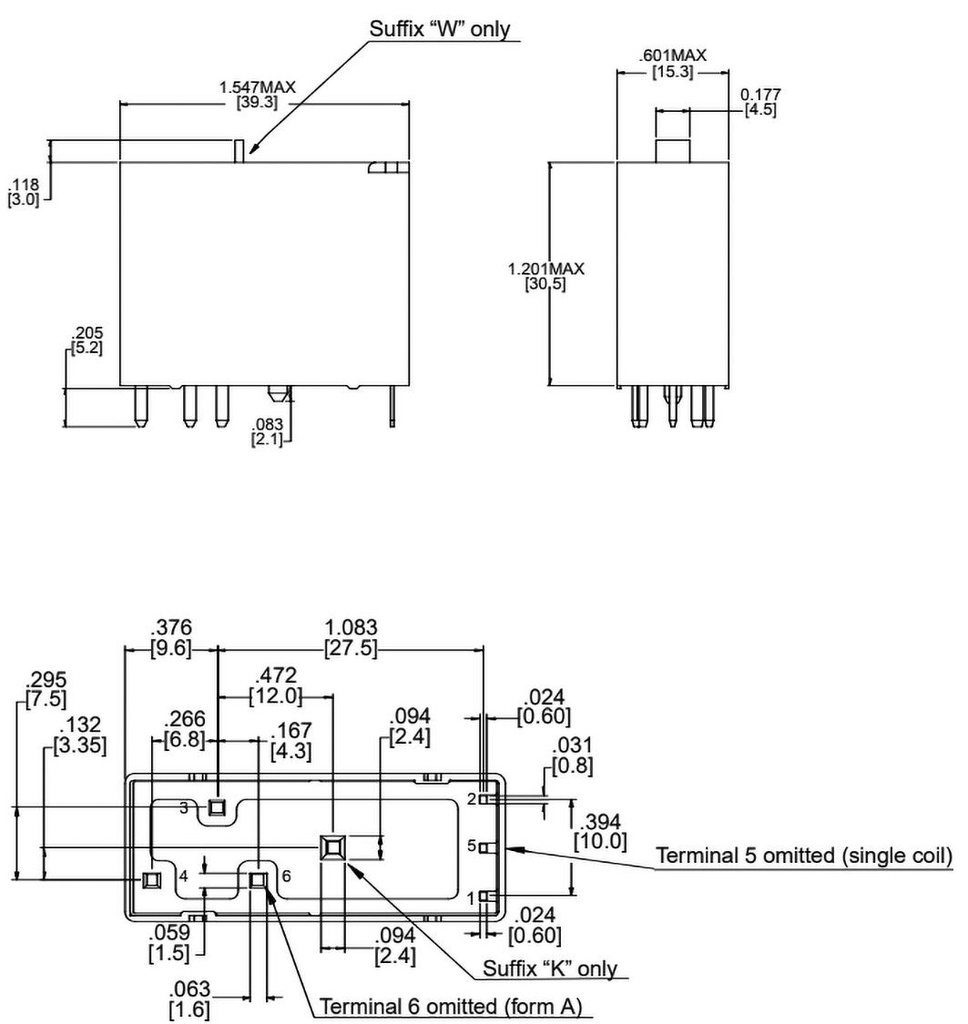

    Body dimensions 39.3x15.3x30.5mm
    Switched voltage max. 440V AC
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 50A / 277V AC
    Contact current max. 50A
    Relay variant bistable, power
    Type of relay electromagnetic
